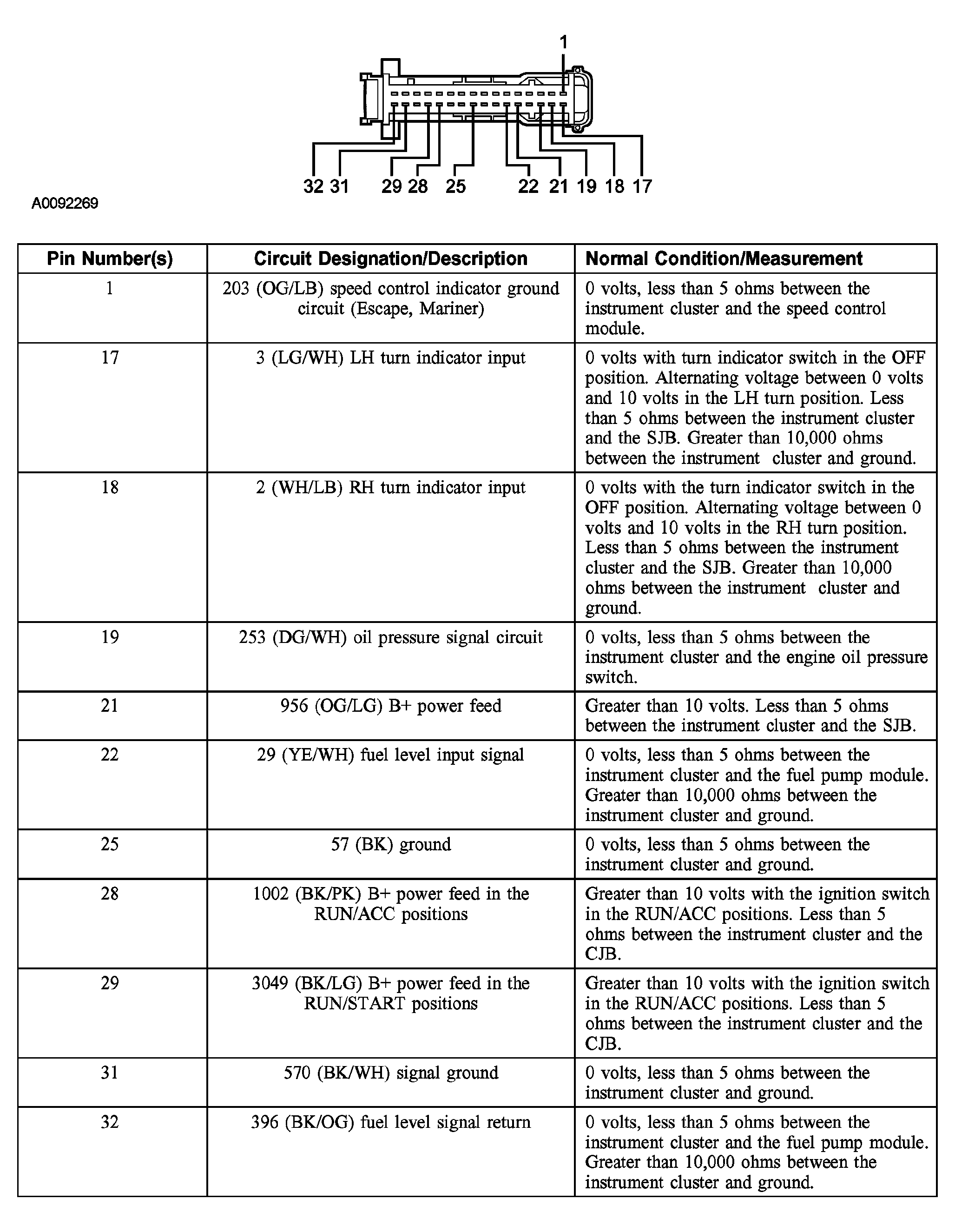

Home >> Ford >> 2005 >> Escape Base, 3.0 1, FWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster System >> Diagnosis And Testing >> Instrument Cluster >> Connector Circuit Reference >> Instrument Cluster C220
