Pinpoint Test Ag: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition And Headlamps Off)
CAUTION:
Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
Test Step
AG1 MONITOR INSTRUMENT CLUSTER IGNITION KEY PID
- Key in OFF position.
- Remove the ignition key.
- Connect the diagnostic tool.
- Enter the following diagnostic mode on the diagnostic tool: Instrument Cluster PID
- Monitor instrument cluster ignition key PID.
- Does the instrument cluster PID indicate IN?
Result/Action to Take
Yes
GO to AG2.
No
INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . CLEAR the DTCs. REPEAT the self-test.
Test Step
AG2 CHECK CIRCUIT 30S-GM7 (RD/WH) FOR A SHORT TO VOLTAGE
- Disconnect: Instrument Cluster C220a.

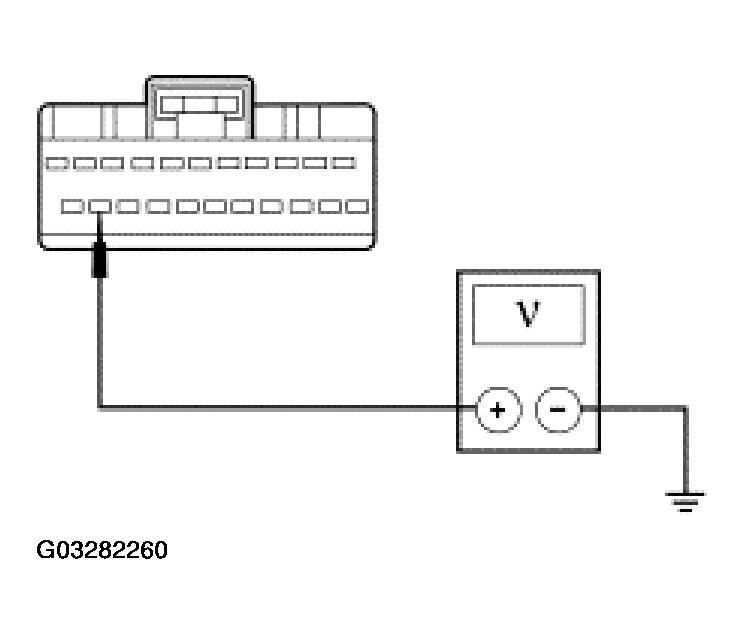

- Measure the voltage between the instrument cluster C220a-21, circuit 30S-GM7 (RD/WH), harness side and ground.
- Is any voltage present?
Result/Action to Take
Yes
INSTALL a new ignition switch. REFER to STEERING SYSTEM . CLEAR the DTCs. REPEAT the self-test.
No
Go to PINPOINT TEST AH: THE SAFETY BELT WARNING CHIME DOES NOT OPERATE CORRECTLY .
