Pinpoint Test Ad: The Instrument Cluster Is Inoperative
Test Step
AD1 CHECK HOT AT ALL TIMES POWER SUPPLY CIRCUIT
- Key in OFF position.
- Disconnect: Instrument Cluster C220b.

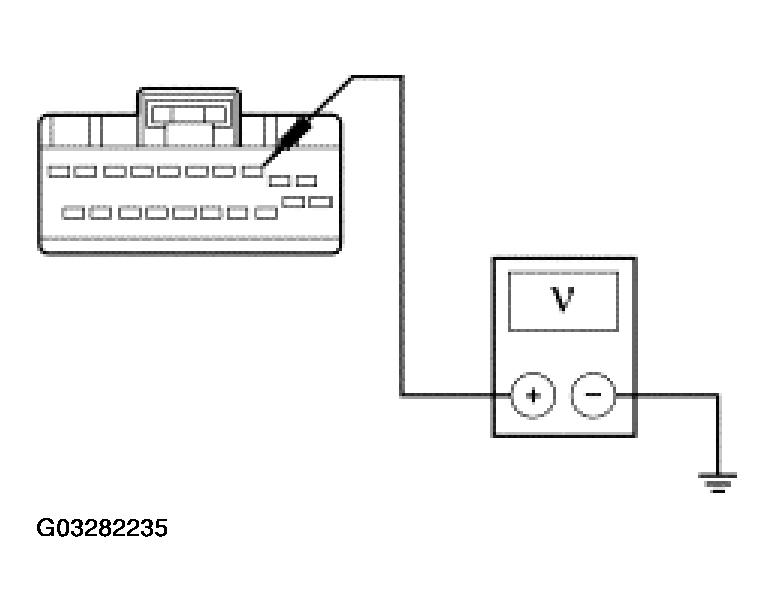

- Measure the voltage between the instrument cluster C220b-3, circuit 29-GG11 (OG/BU), harness side and ground.
- Is the voltage greater than 10 volts?
Result/Action to Take
Yes
GO to AD2.
No
REPAIR the circuit. TEST the system for normal operation.
Test Step
AD2 CHECK HOT IN RUN POWER SUPPLY CIRCUITS
- Disconnect: Instrument Cluster C220a.
- Key in ON position.

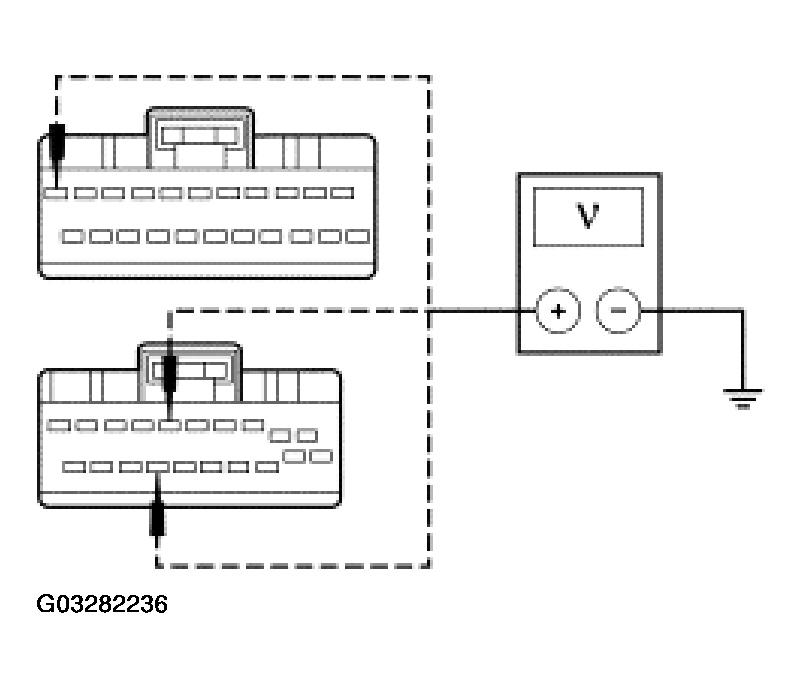

- Measure the voltage between the instrument cluster and ground as follows:INSTRUMENT CLUSTER
Connector Pin Circuit C220a-11 15-JA14 (GN/BK) C220b-6 15-GG1 (GN/BU) C220b-17 75-GG15 (YE/GN) - Are the voltages greater than 10 volts?
Result/Action to Take
Yes
GO to AD3.
No
REPAIR the circuit(s). TEST the system for normal operation.
Test Step
AD3 CHECK GROUND CIRCUITS
- Key in OFF position.

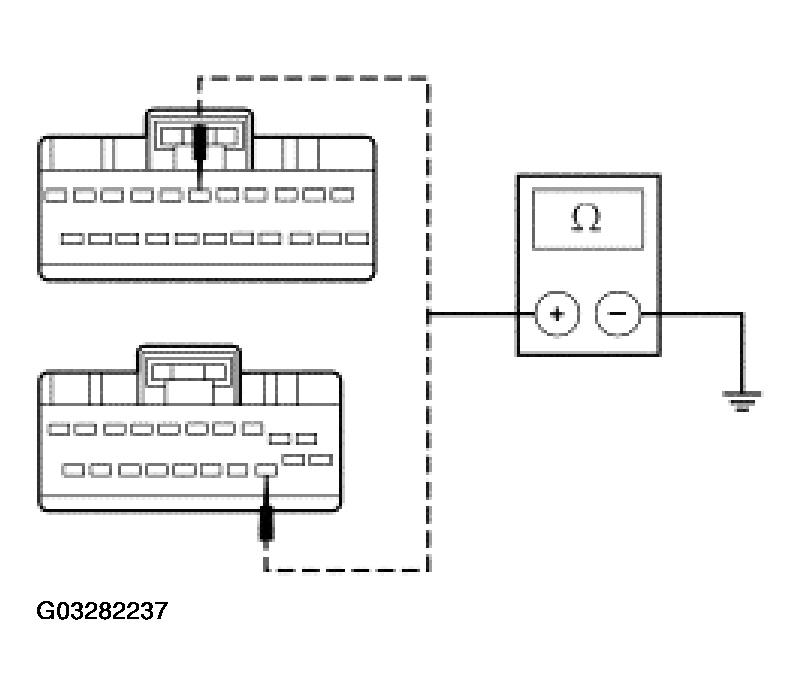

- Measure the resistance between the instrument cluster C220b-13, circuit 91-GG11 (BK/BU), harness side and ground; and between the instrument cluster C220a-6, circuit 31-AL11 (BK), harness side and ground.
- Are the resistances less than 5 ohms?
Result/Action to Take
Yes
GO to AD4.
No
REPAIR the circuit(s). TEST the system for normal operation.
Test Step
AD4 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
- Disconnect all instrument cluster connectors.
- Check for:
- corrosion
- pushed-out pins
- Connect all instrument cluster connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Result/Action to Take
Yes
INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . TEST the system for normal operation.
No
The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
