Heated Seat Switch (if equipped) LH C2147, RH C2148

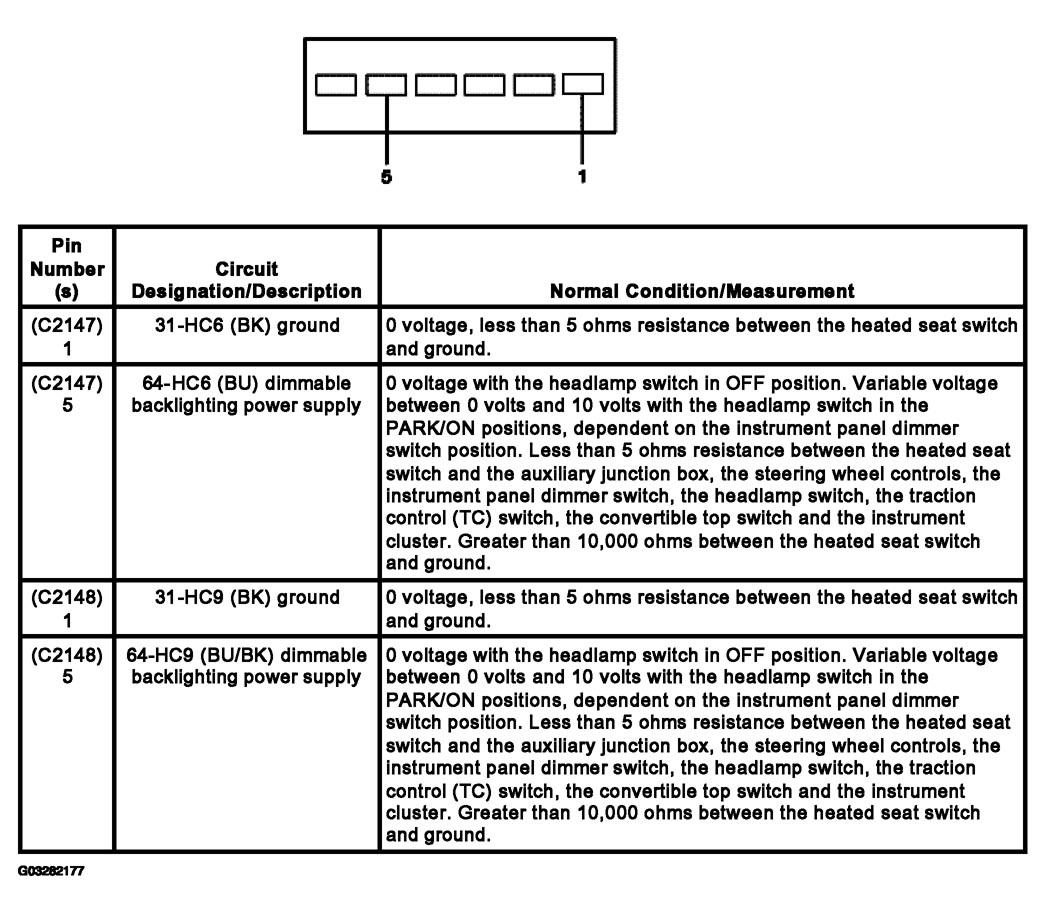

Fig 1: Identifying Heated Seat Switch LH C2147, RH C2148

G03282177

Courtesy of FORD MOTOR CO.
