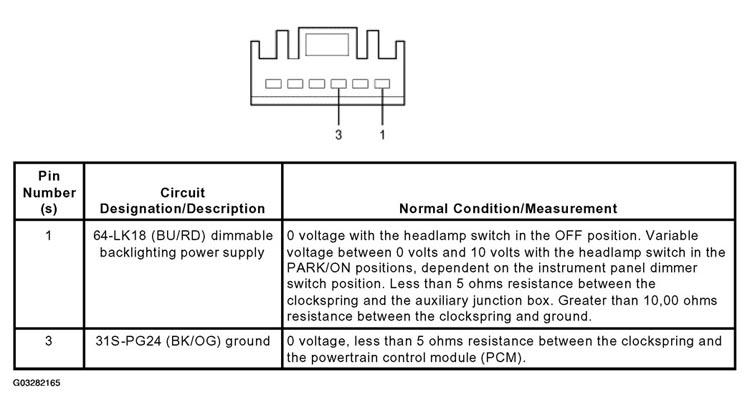

Home >> Ford >> 2004 >> Thunderbird >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information, Gauges & Warning Devices >> Diagnosis And Testing >> Instrument Cluster And Panel Illumination >> Circuit Reference >> Clockspring C218a
