Pinpoint Test R: The Parking, Rear Or License Lamps Are Inoperative
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

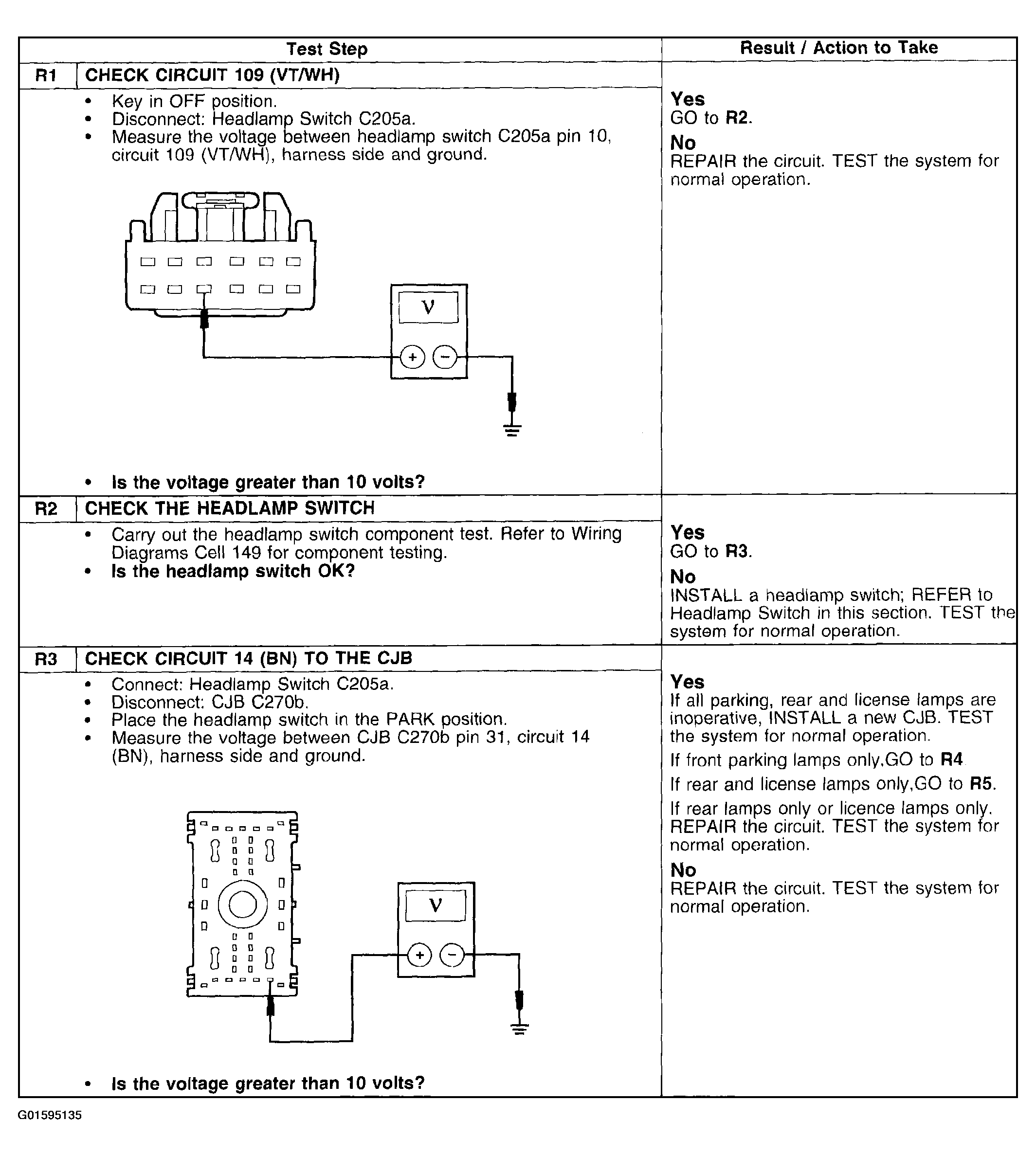

Fig 1: Pinpoint Test R: Parking, Rear Or License Lamps Inoperative (Step R1 - R3)
Courtesy of FORD MOTOR CO.

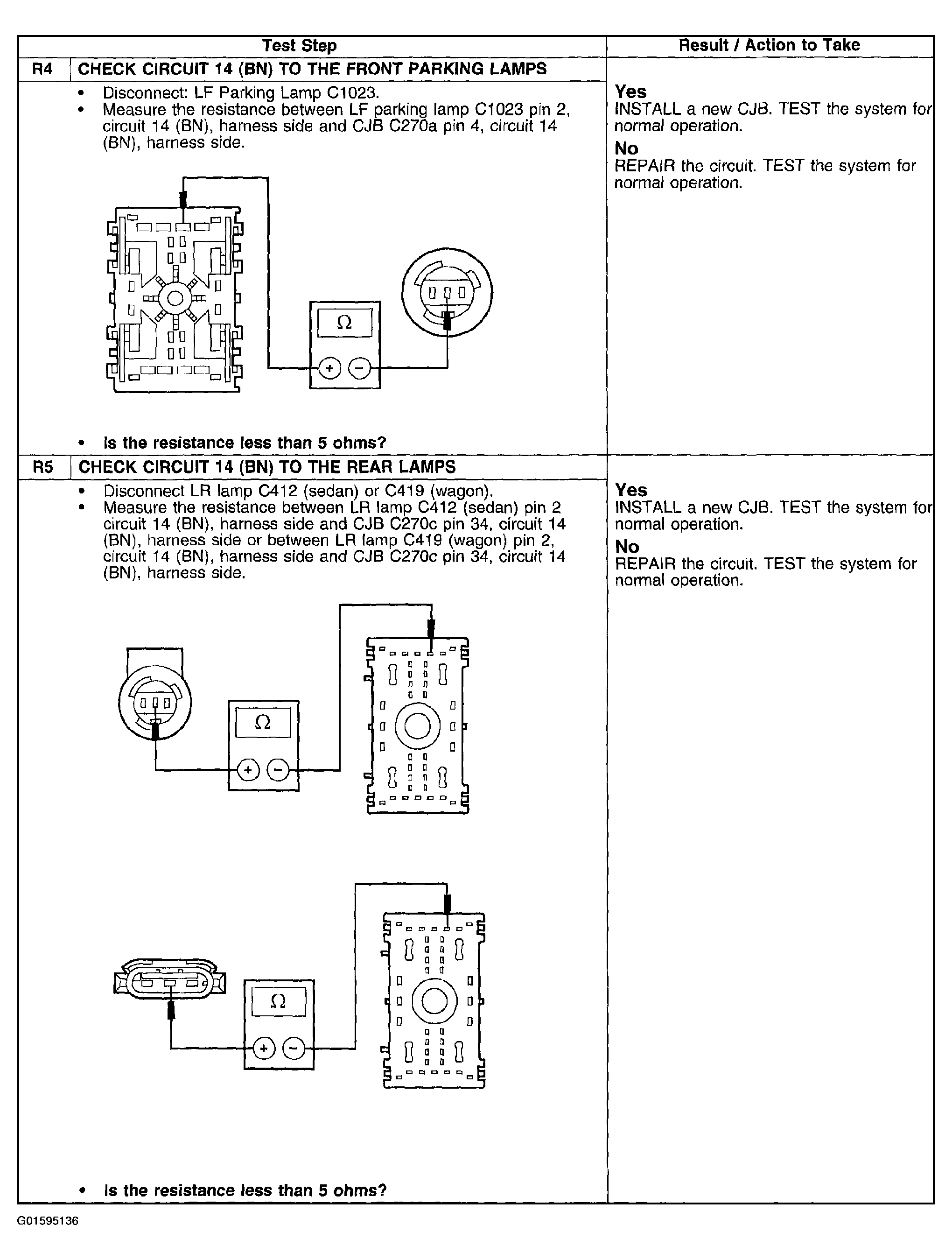

Fig 2: Pinpoint Test R: Parking, Rear Or License Lamps Inoperative (Step R4 - R5)
