Pinpoint Test F: No Sound From One Or More Of The Speakers (Not All Speakers) - Video System Output To The Front Speakers

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

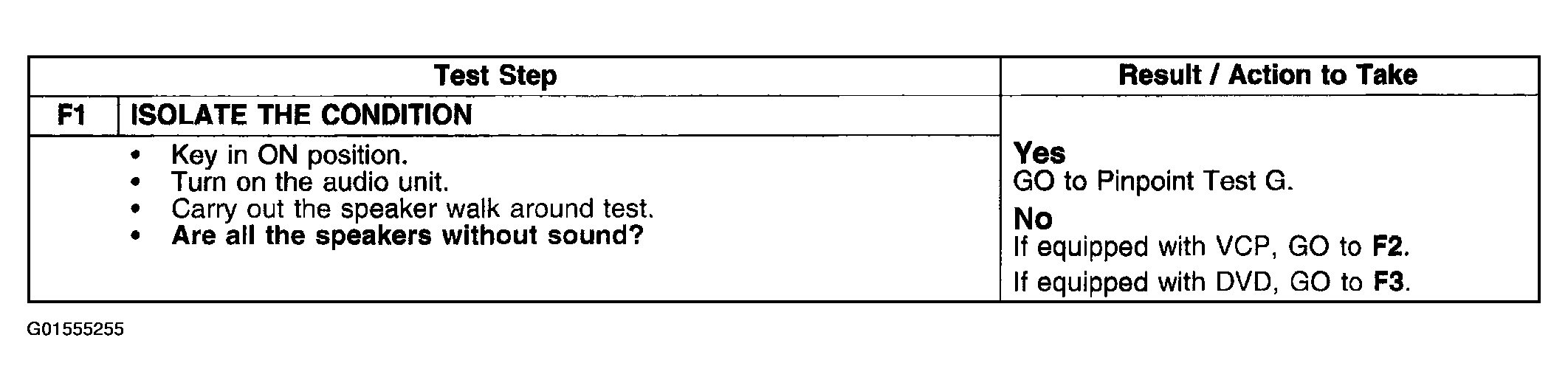

Fig 1: Pinpoint Test F: No Sound From One Or More Of The Speakers (Not All Speakers) - Video System Output To The Front Speakers (F1)

Courtesy of FORD MOTOR CO.

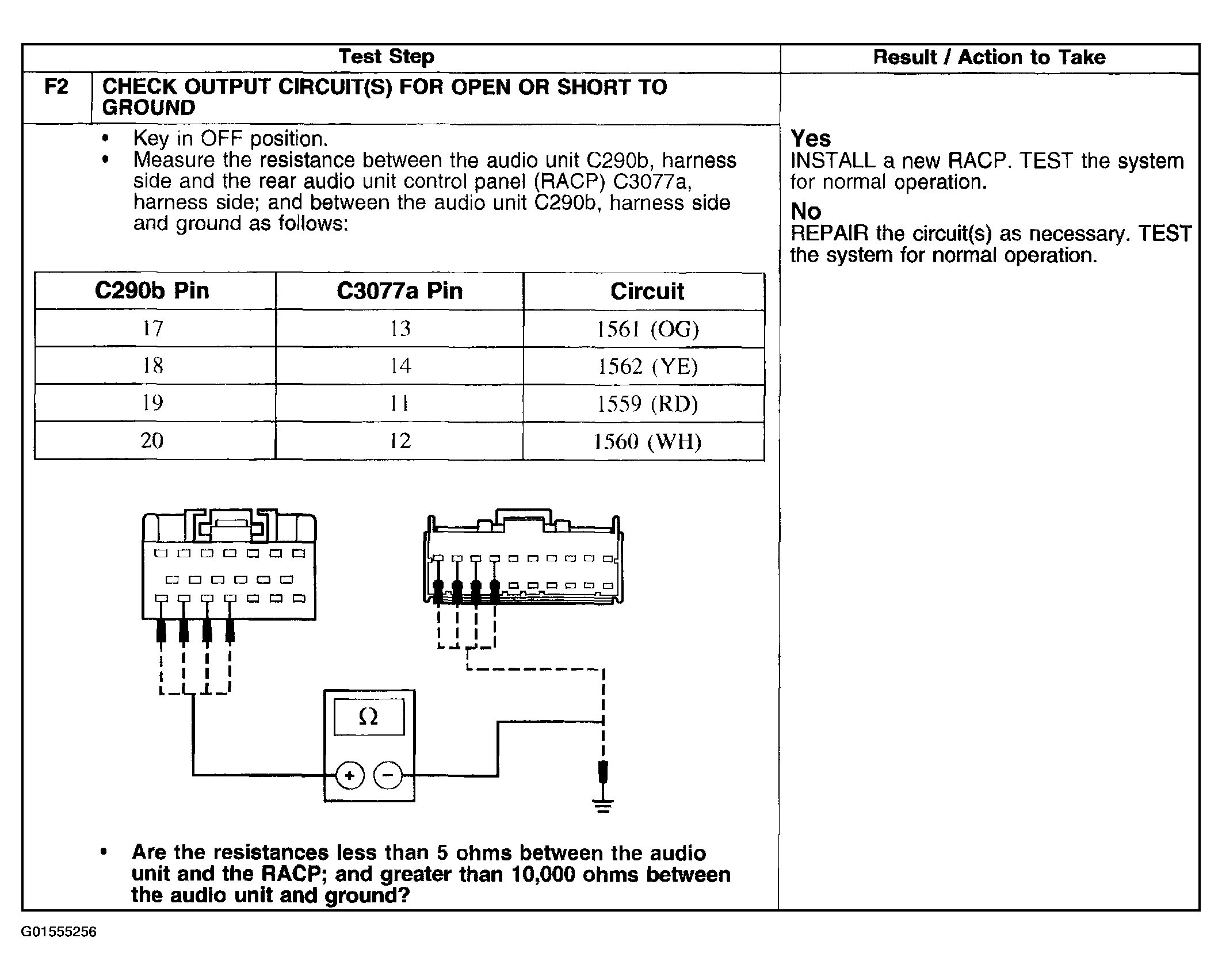

Fig 2: Pinpoint Test F: No Sound From One Or More Of The Speakers (Not All Speakers) - Video System Output To The Front Speakers (F2)

Courtesy of FORD MOTOR CO.

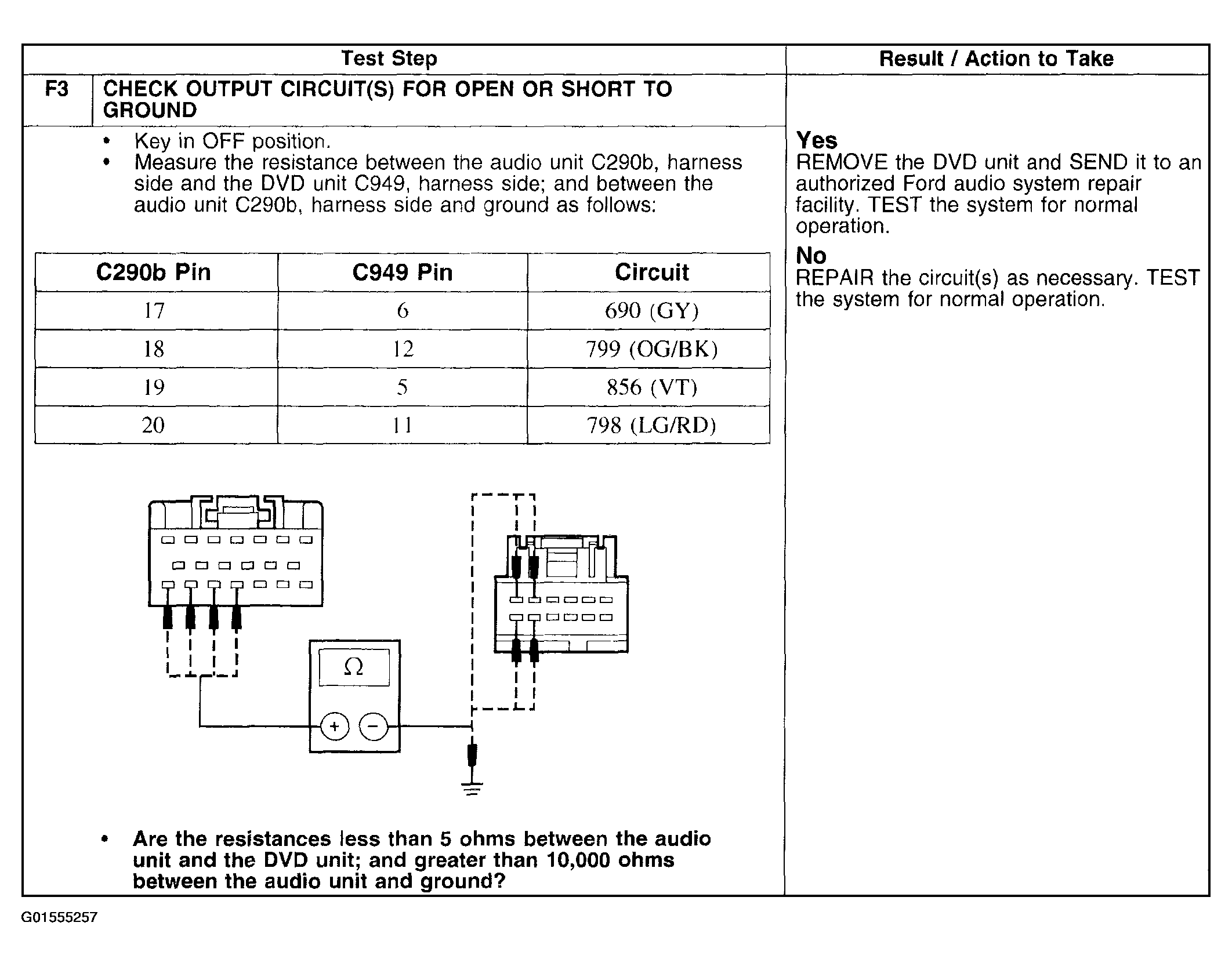

Fig 3: Pinpoint Test F: No Sound From One Or More Of The Speakers (Not All Speakers) - Video System Output To The Front Speakers (F3)

Courtesy of FORD MOTOR CO.
