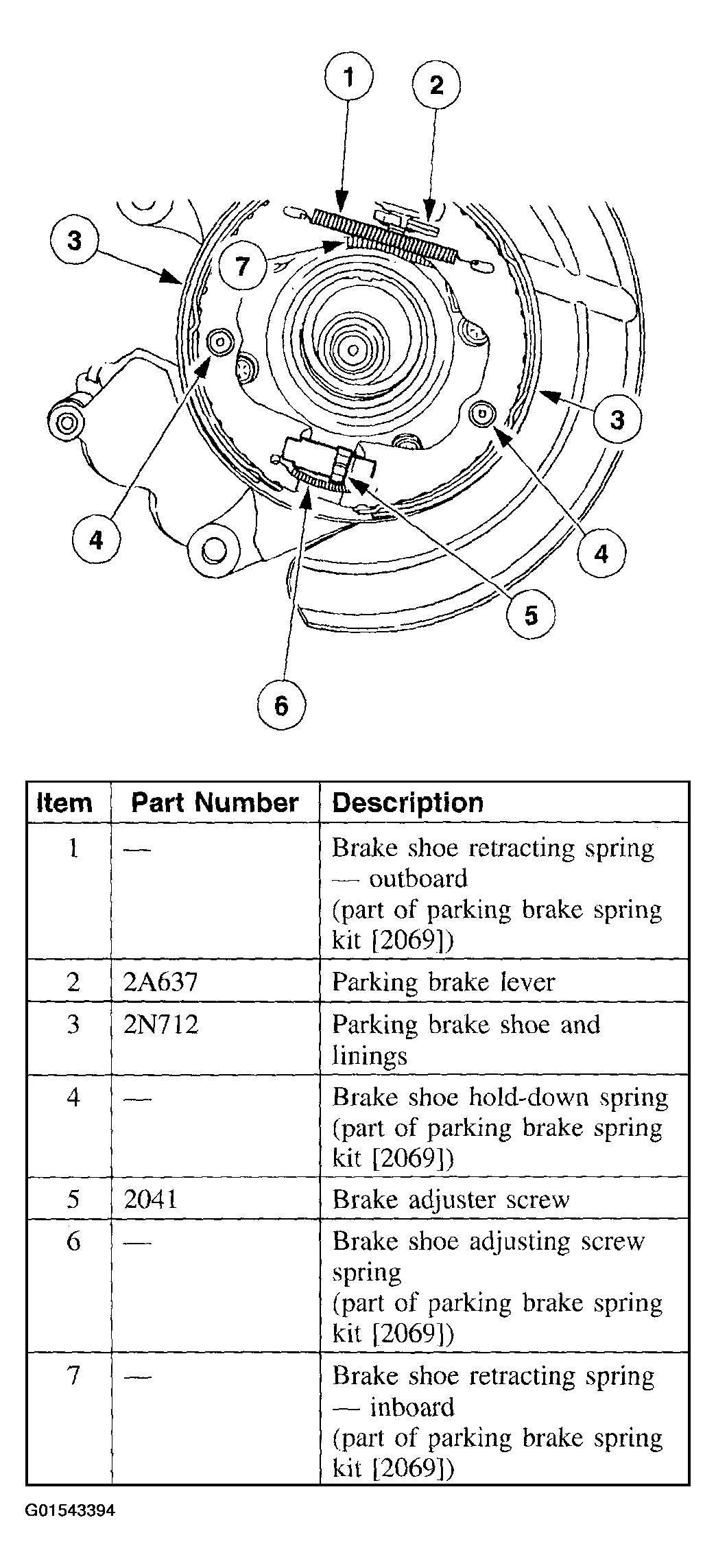

Parking Brake Rear Wheel Components
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
The rear wheel disc brake assembly contains a cable-actuated parking brake assembly.
The parking brake system is actuated when the parking brake control is depressed. The parking brake control applies tension to the front parking brake cable and conduit, activating the parking brake assembly.
