Removal & Installation

Remove the brake pedal and bracket. See BRAKE PEDAL & BRACKET .
Remove the screws and detach the brake pedal cable from the motor. See Fig 1.
Disconnect the cable from the accelerator cable adjuster. See Fig 2.
Remove the bolts and the motor. See Fig 3.
To install, reverse the removal procedure.

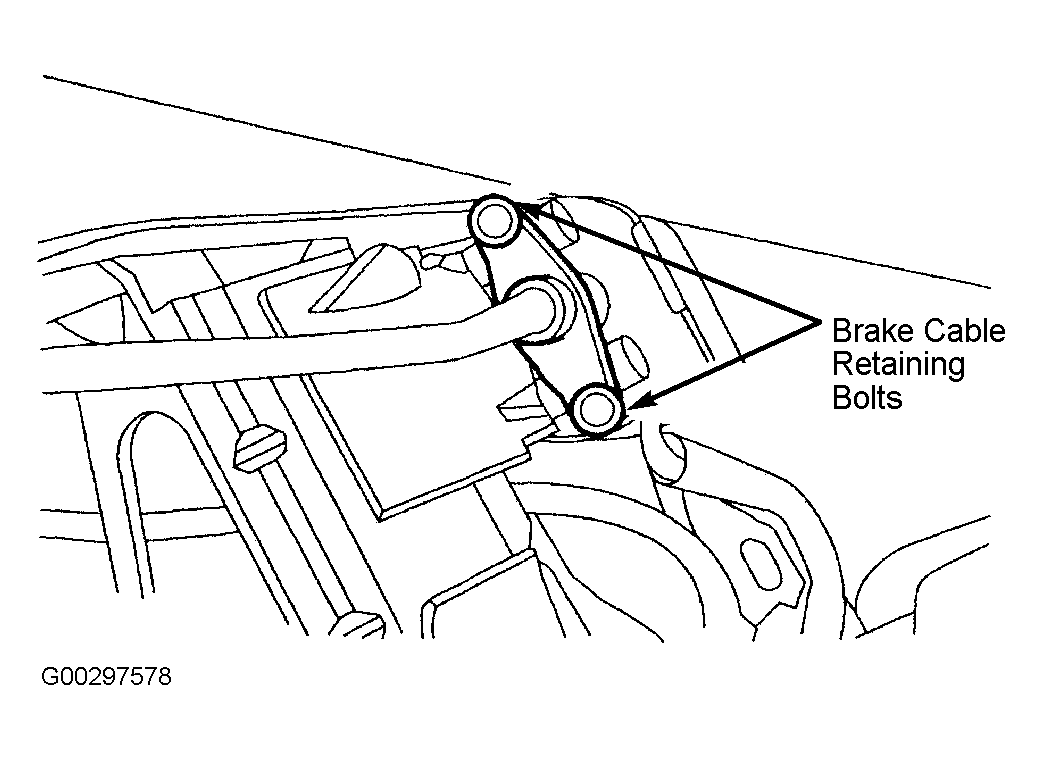

Fig 1: Identifying Brake Pedal Motor Cable Retaining Bolts

G00297578

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Accelerator Cable Adjuster

G00297579

Courtesy of FORD MOTOR CO.

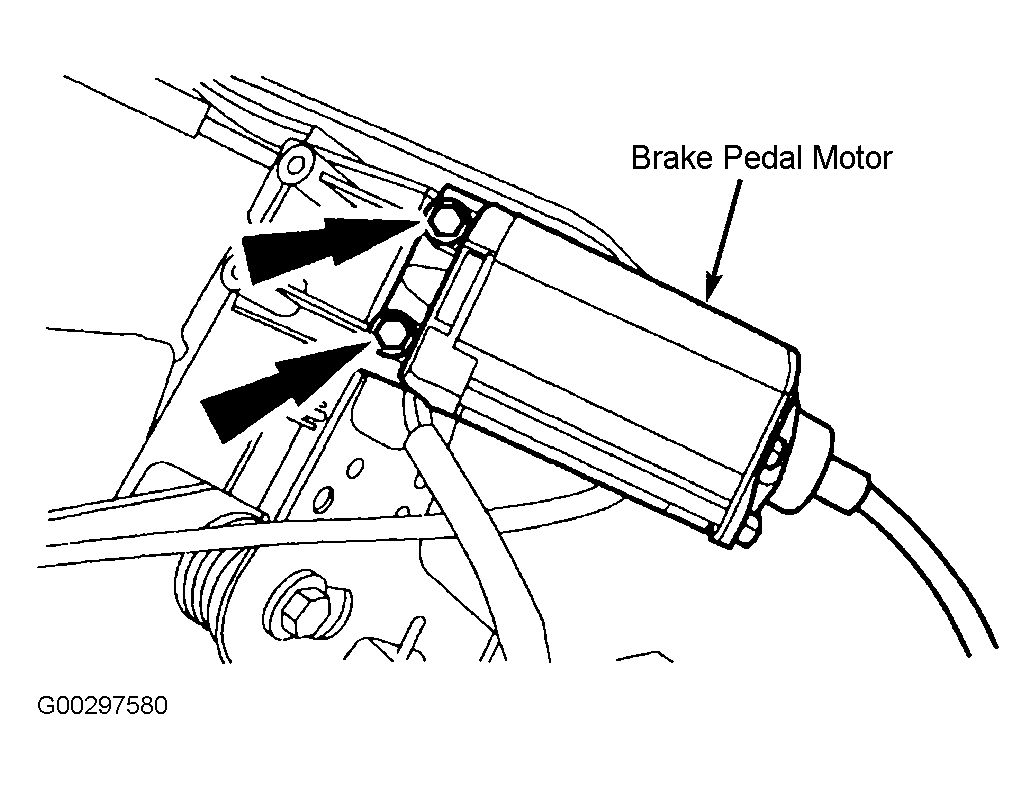

Fig 3: Identifying Brake Pedal Motor Retaining Bolts

G00297580

Courtesy of FORD MOTOR CO.
