Pinpoint Test E: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches

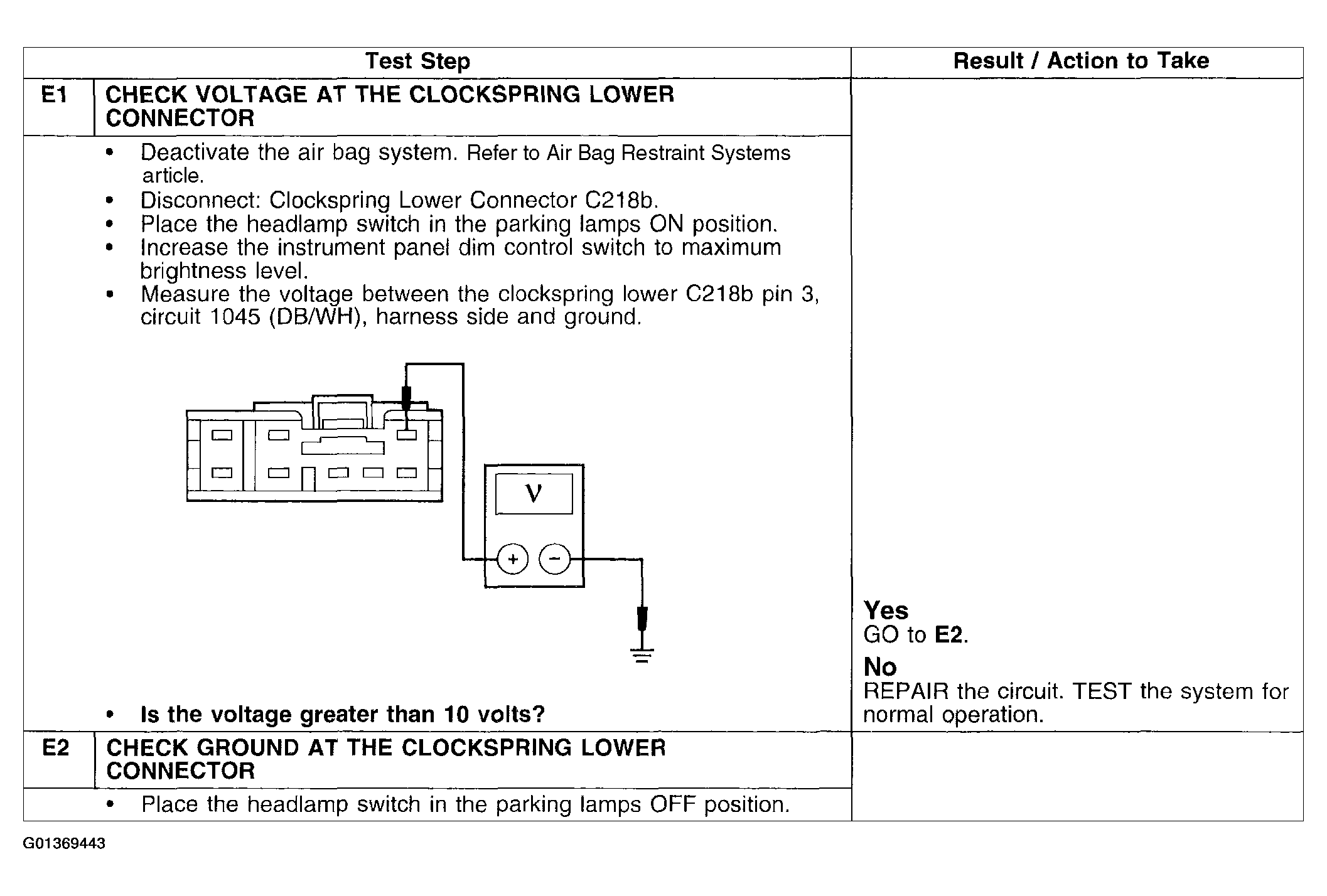

Fig 1: Pinpoint Test E: Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Step E1-E2)
G01369443Courtesy of FORD MOTOR CO.

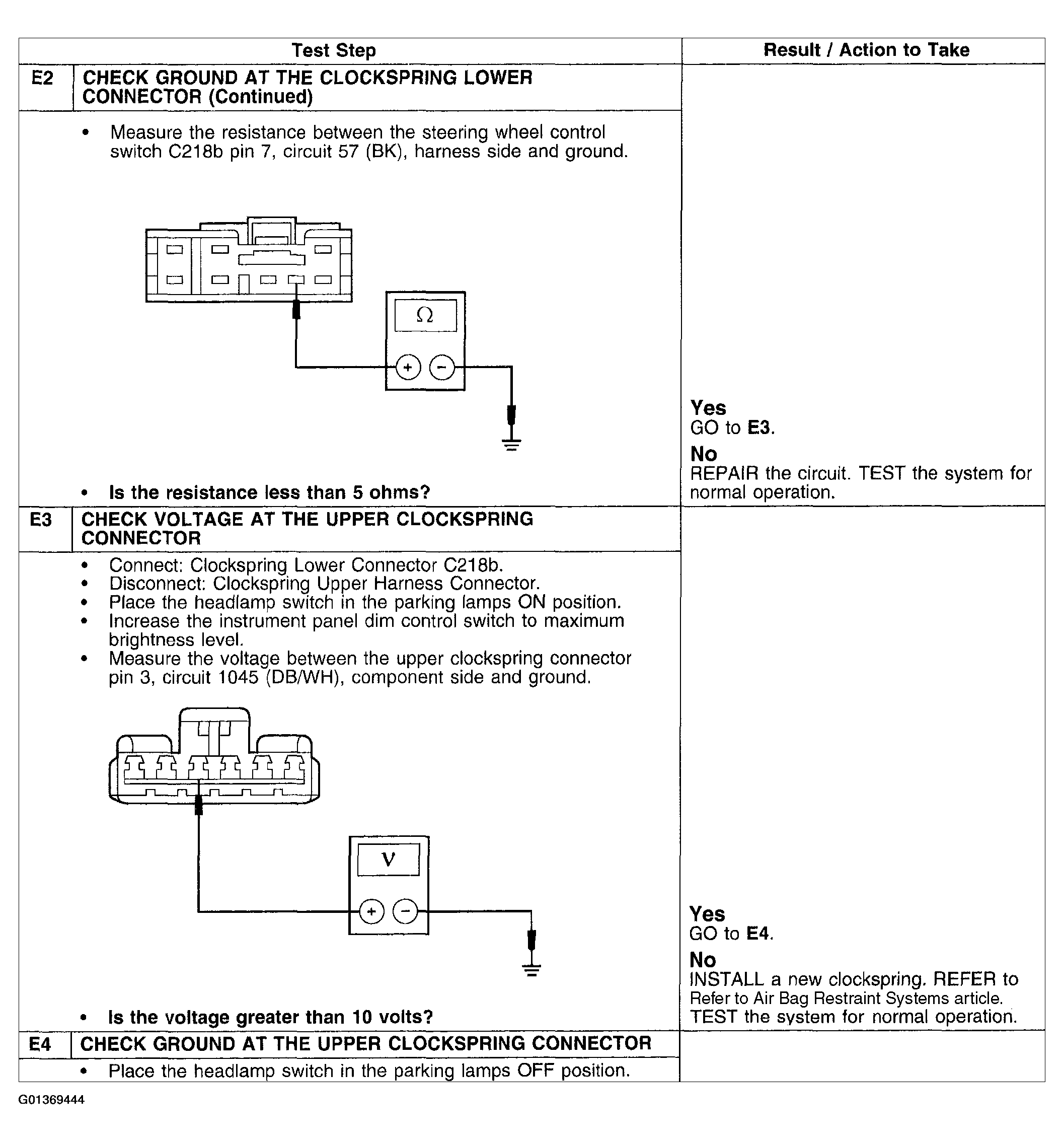

Fig 2: Pinpoint Test E: Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Step E2 Cont.-E3)
G01369444Courtesy of FORD MOTOR CO.

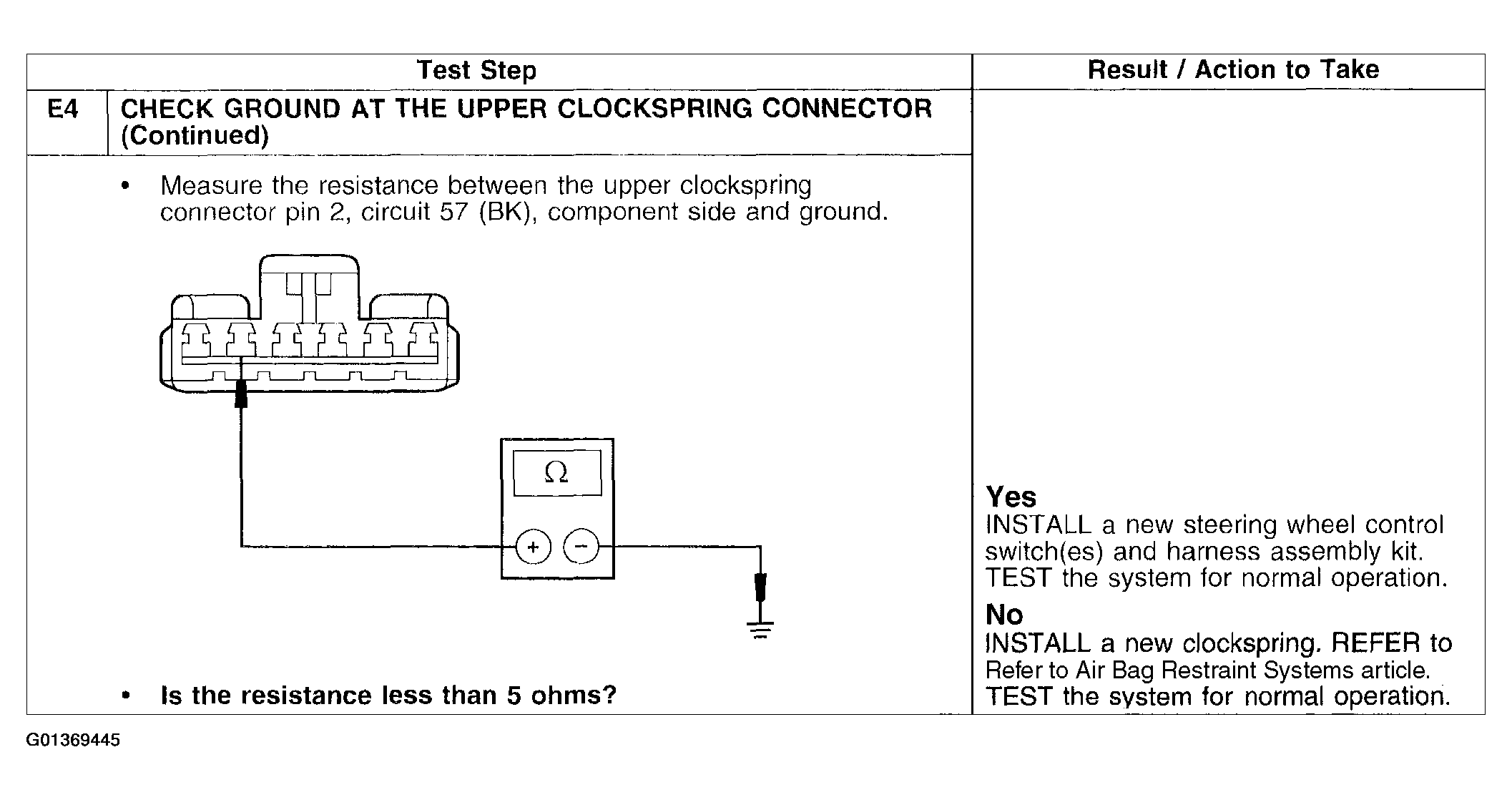

Fig 3: Pinpoint Test E: Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Step E4)
G01369445Courtesy of FORD MOTOR CO.
