Pinpoint Test C: The Integrated Control Panel Illumination Is Inoperative

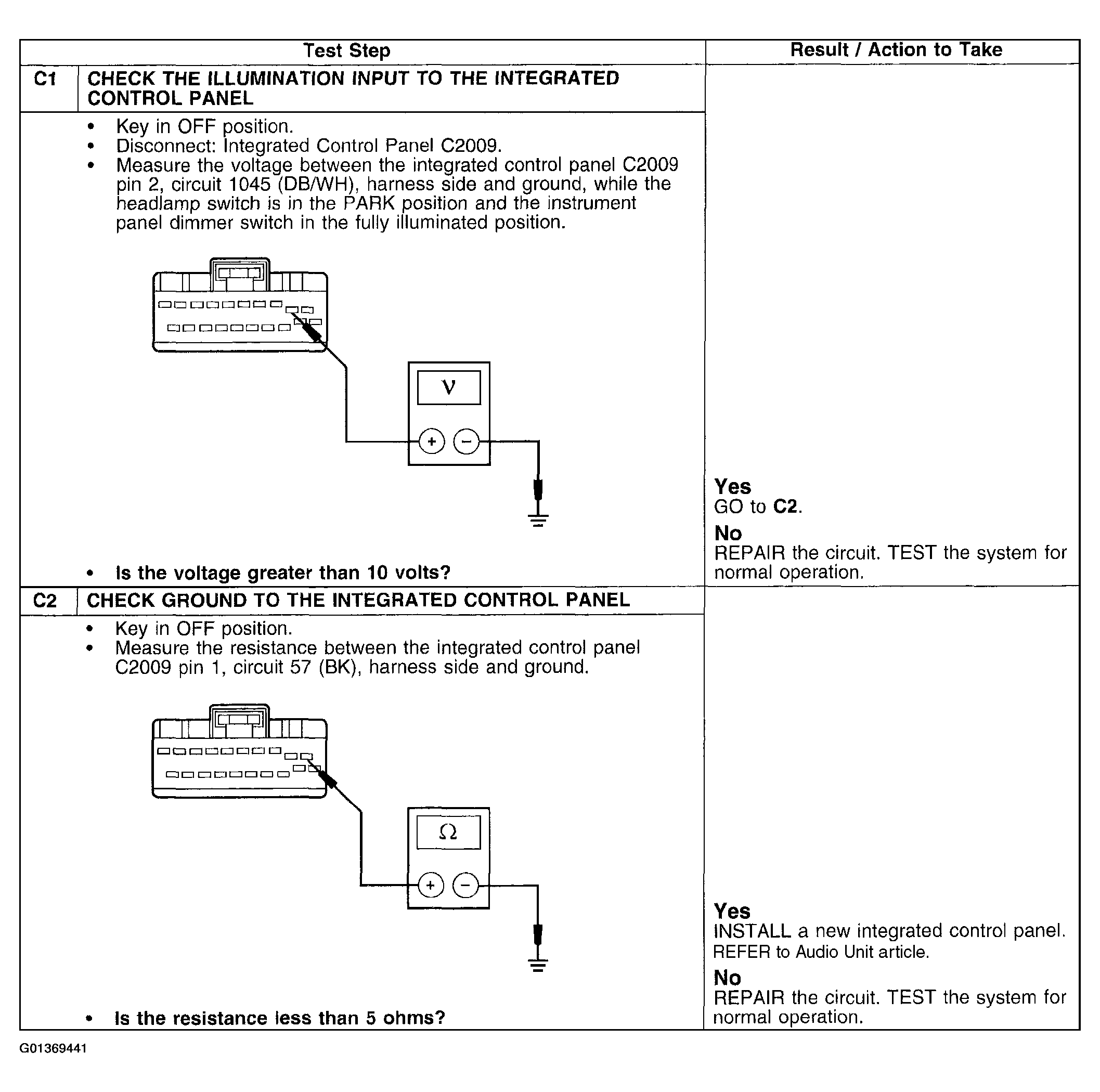

Fig 1: Pinpoint Test C: Integrated Control Panel Illumination Is Inoperative (Step C1-C2)

G01369441

Courtesy of FORD MOTOR CO.
