Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

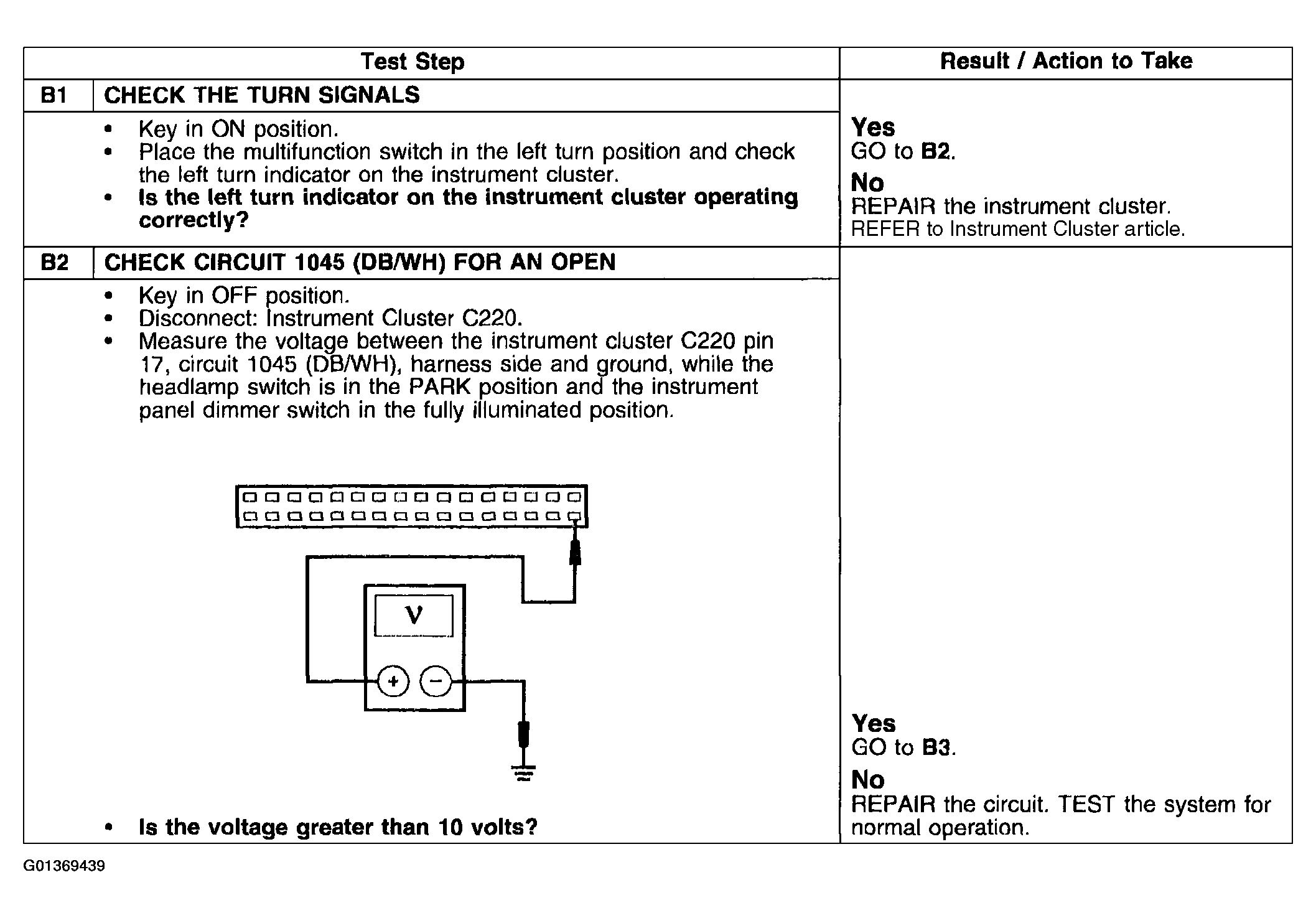

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (Step B1 -B2)
G01369439Courtesy of FORD MOTOR CO.

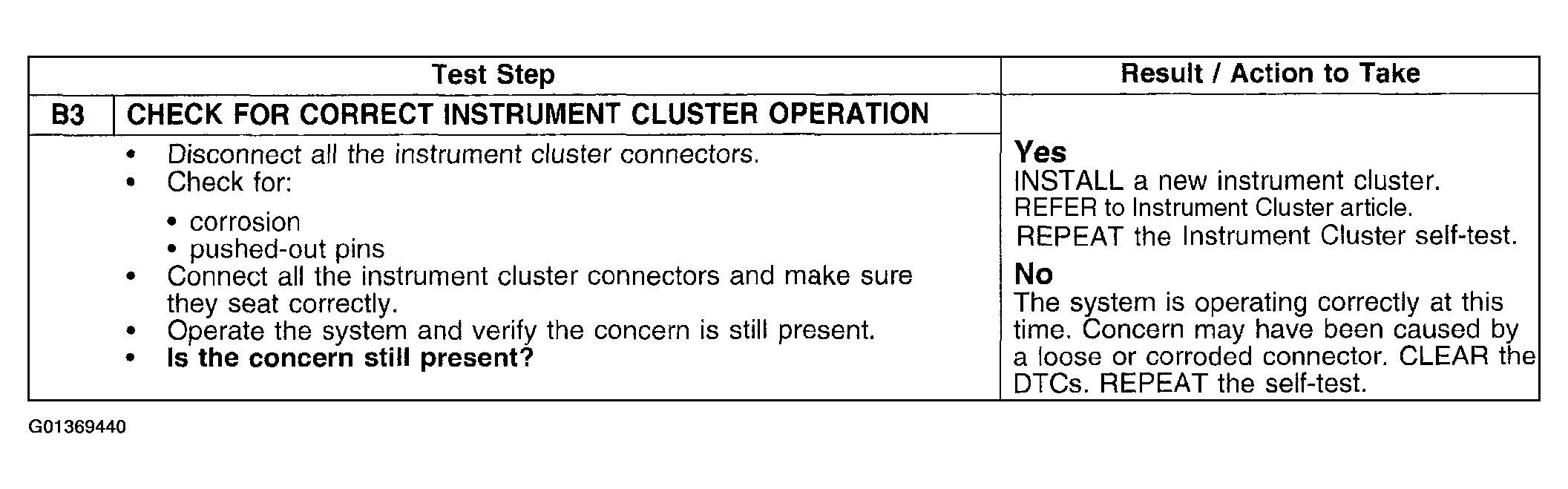

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (Step B3)
G01369440Courtesy of FORD MOTOR CO.
