Pinpoint Test A: The Control Illumination Is Inoperative

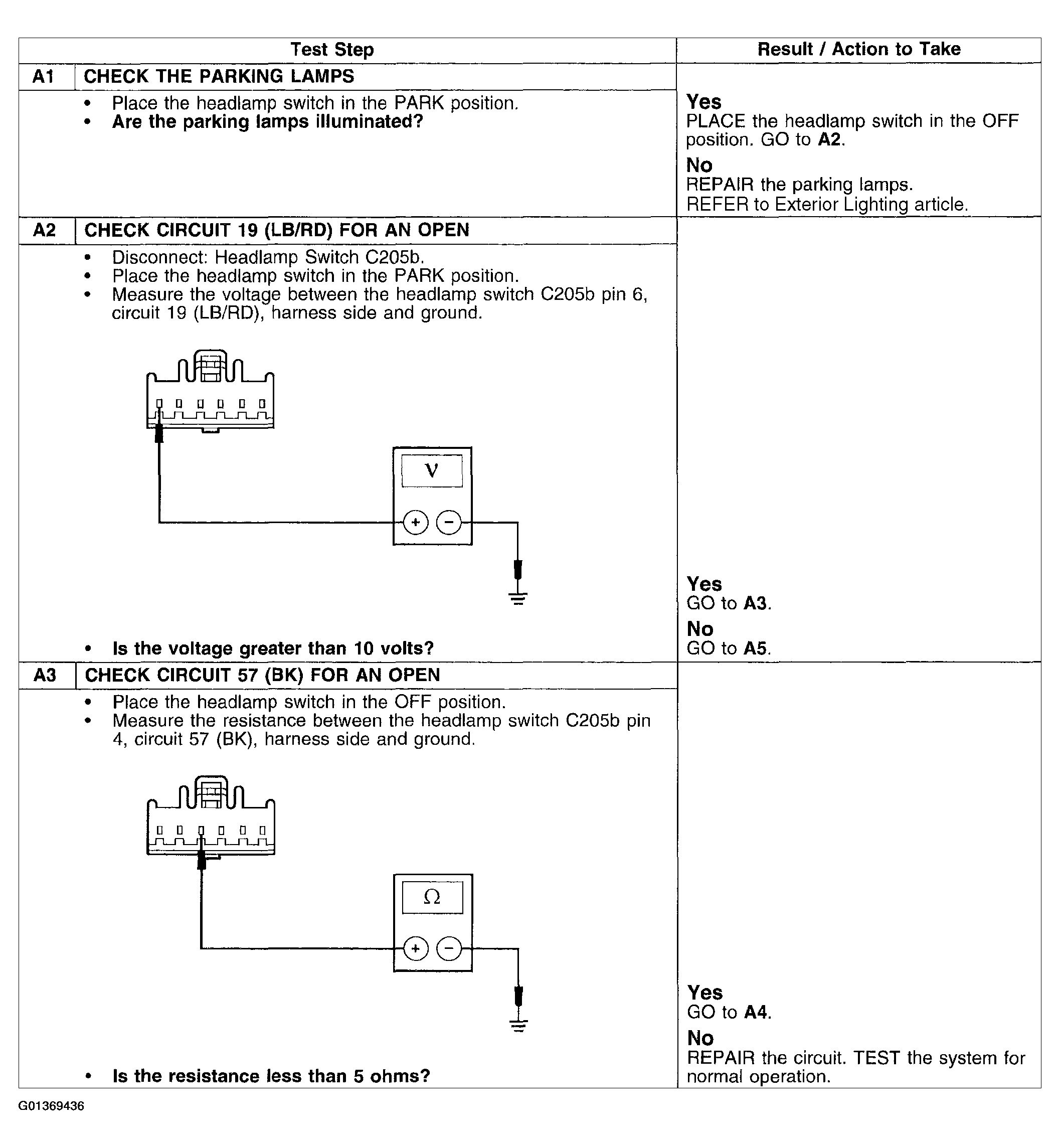

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (Step A1-A3)
G01369436Courtesy of FORD MOTOR CO.

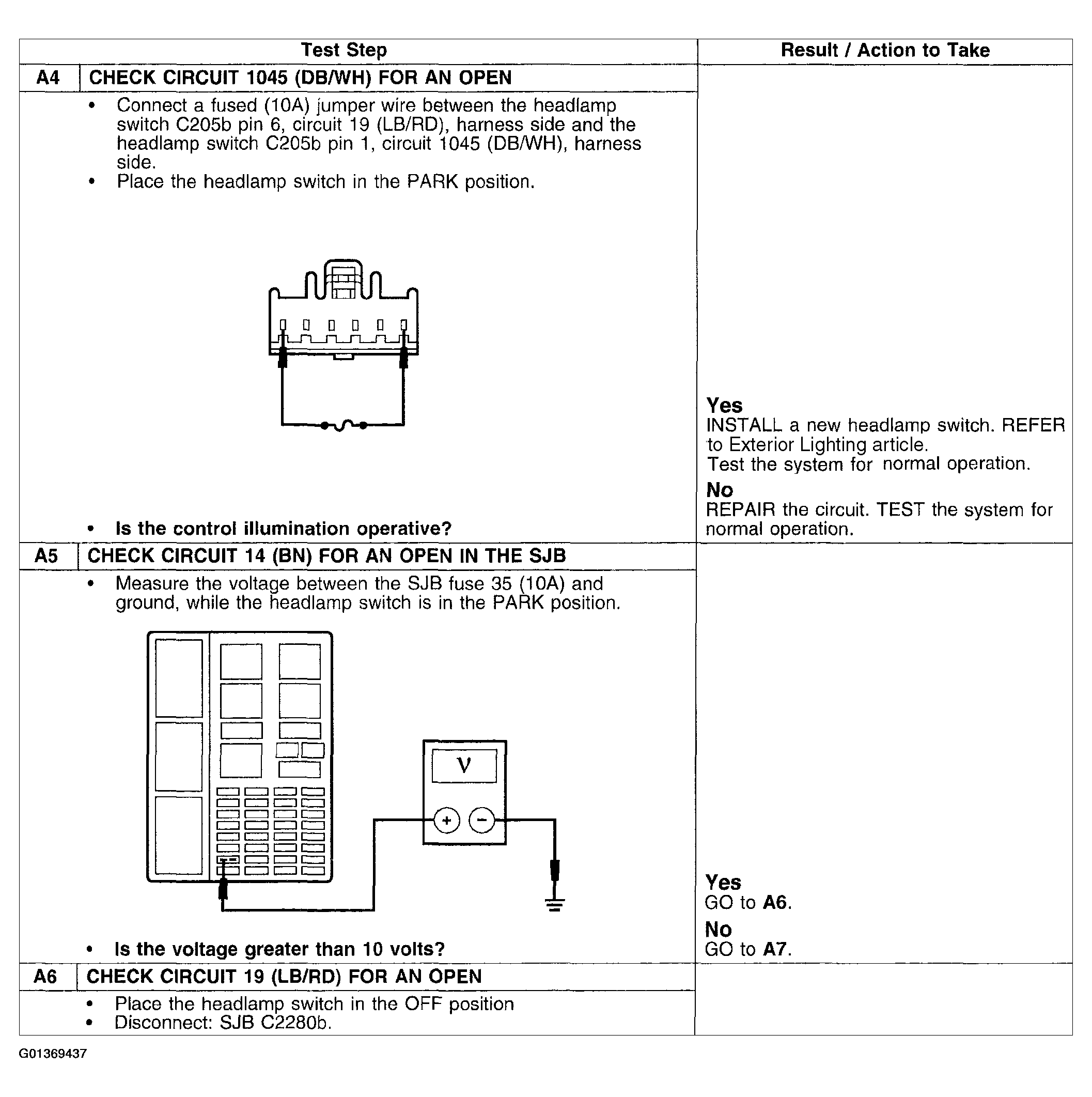

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (Step A4-A6)
G01369437Courtesy of FORD MOTOR CO.

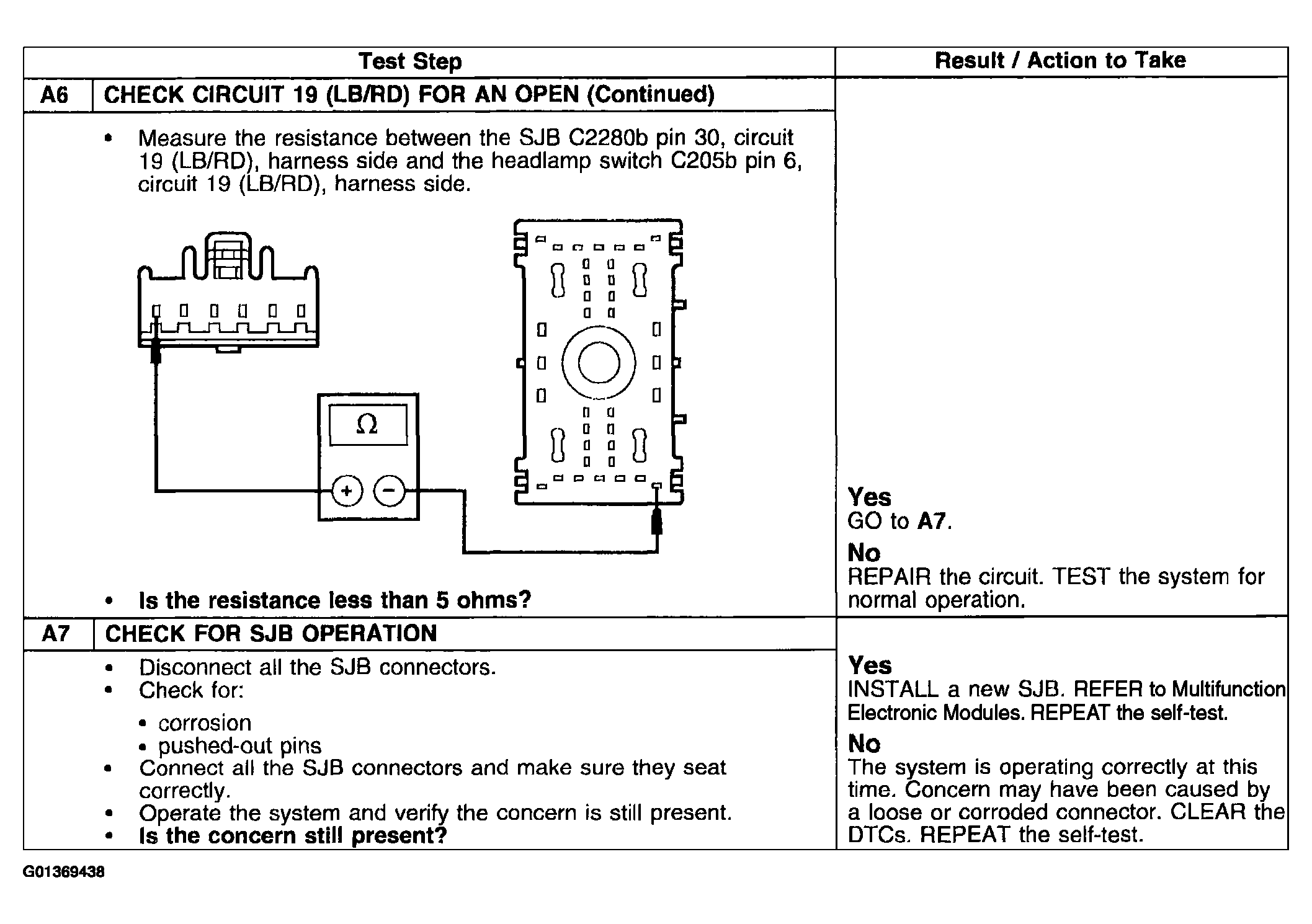

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (Step A6 Cont.-A7)
G01369438Courtesy of FORD MOTOR CO.
