Checking Differential Ring Gear Backlash

  1. Remove the differential housing cover.
  2. Using a suitable dial indicator and the special tool, measure and record the differential ring gear backlash in 4 opposing points on the ring gear.

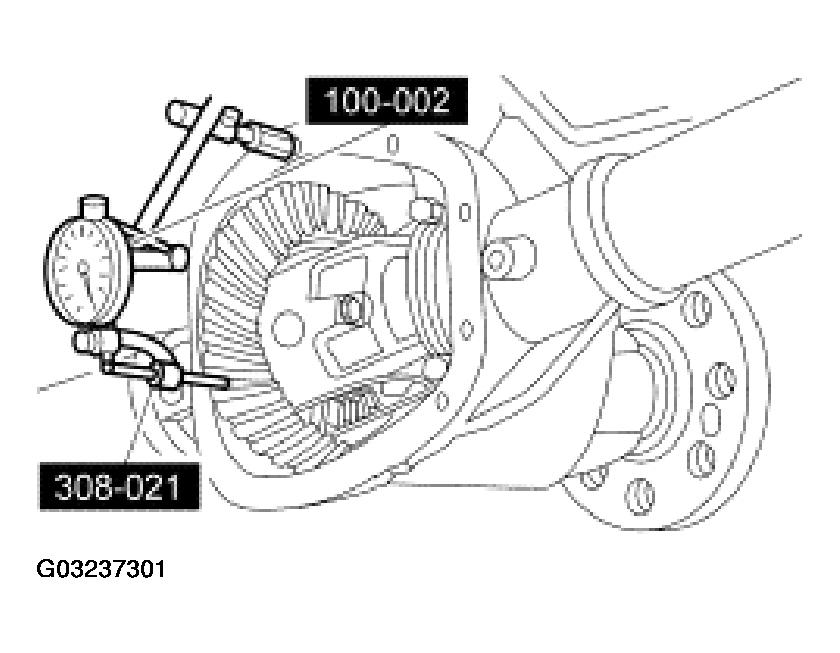

    Fig 1: Checking Differential Ring Gear Backlash Using Dial Indicator
    G03237301Courtesy of FORD MOTOR CO.
