Pinpoint Test K: The Hazard Flasher Lamps Are Never On
- K1 CHECK THE VOLTAGE TO THE ELECTRONIC FLASHER
- Disconnect: Electronic Flasher C2141.

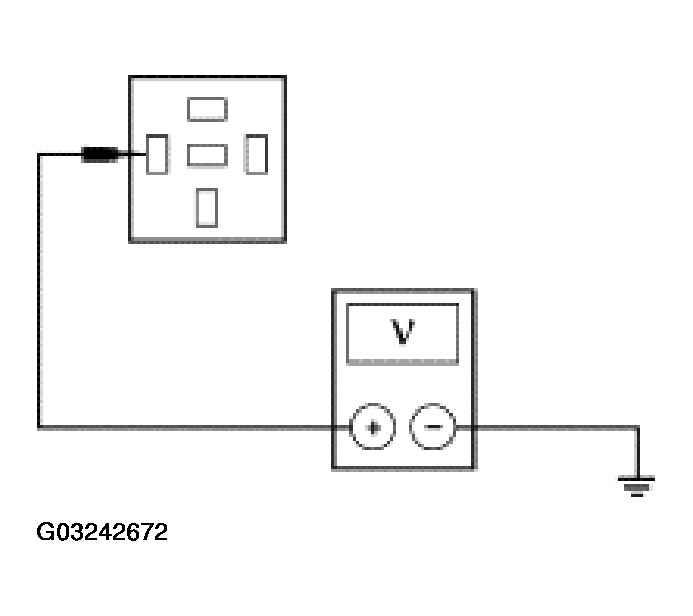

- Measure the voltage between electronic flasher C2141 Pin 3, Circuit 383 (RD/WH), harness side and ground.
- Is the voltage greater than 10 volts?
- Yes: GO to K2.
- No: REPAIR the circuit. TEST the system for normal operation.
- K2 CHECK CIRCUIT 385 (WH/RD)
- Disconnect: Multifunction Switch C202b.

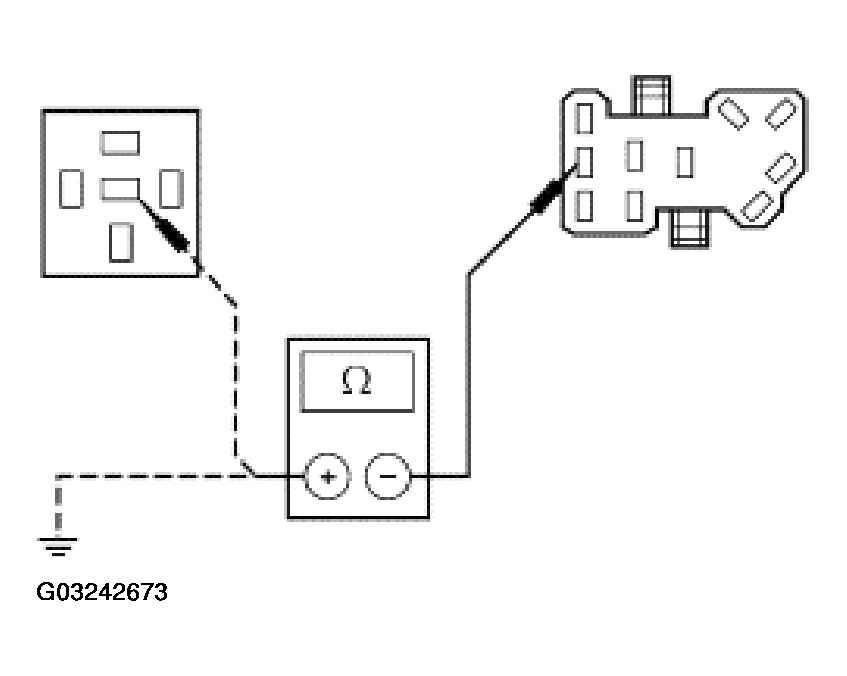

- Measure the resistance between multifunction switch C202b Pin 385, Circuit 385 (WH/RD), harness side and electronic flasher C2141 Pin 4, Circuit 385 (WH/RD), harness side; and between multifunction switch C202b Pin 385, Circuit 385 (WH/RD), harness side and ground.
- Is the resistance less than 5 ohms between the multifunction switch and the electronic flasher, and greater than 10,000 ohms between the multifunction switch and ground?
- Yes: GO to K3.
- No: REPAIR the circuit. TEST the system for normal operation.
- K3 CHECK THE CONTINUITY OF THE MULTIFUNCTION SWITCH
- Carry out the multifunction switch component test.
Refer to COMPONENT TESTING for schematic and connector information.
- Is the switch OK?
- Yes: INSTALL a new electronic flasher. TEST the system for normal operation.
- No: INSTALL a new multifunction switch; REFER to STEERING COLUMN SWITCHES . TEST the system for normal operation.
- Carry out the multifunction switch component test.
