Glossary of Terms: Radial/Lateral

Radial is in the plane of rotation; lateral is at 90 degrees to the plane of rotation.

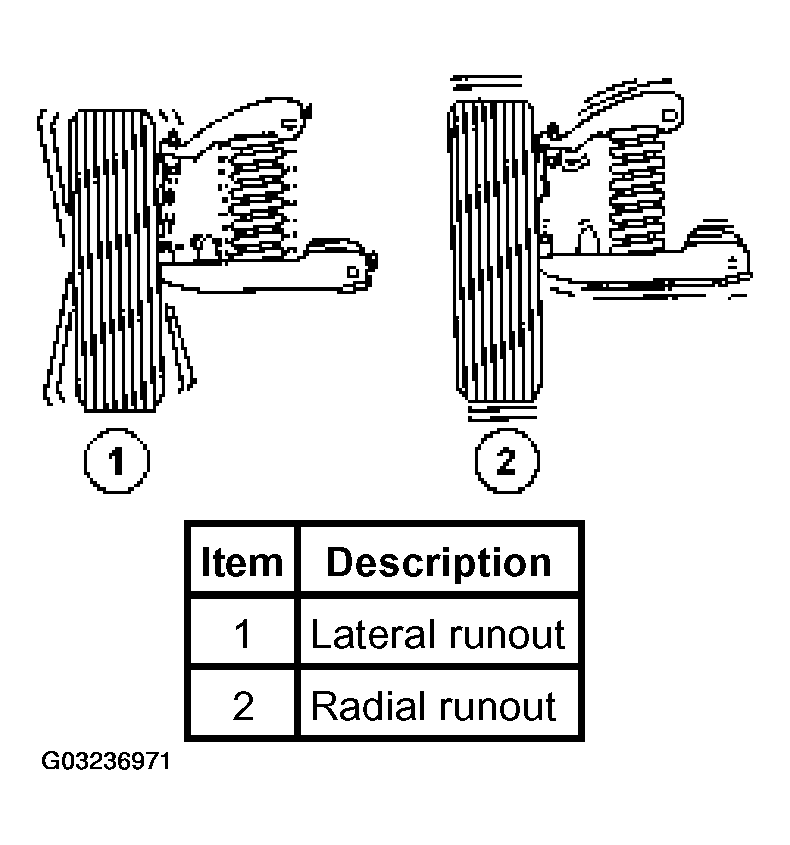

Fig 1: Identifying Radial/Lateral Runout

G03236971

Courtesy of FORD MOTOR CO.
