Valve - Springs, Retainer and Valve Stem Seal: Installation

Using the special tools, install the new intake valve stem seals.

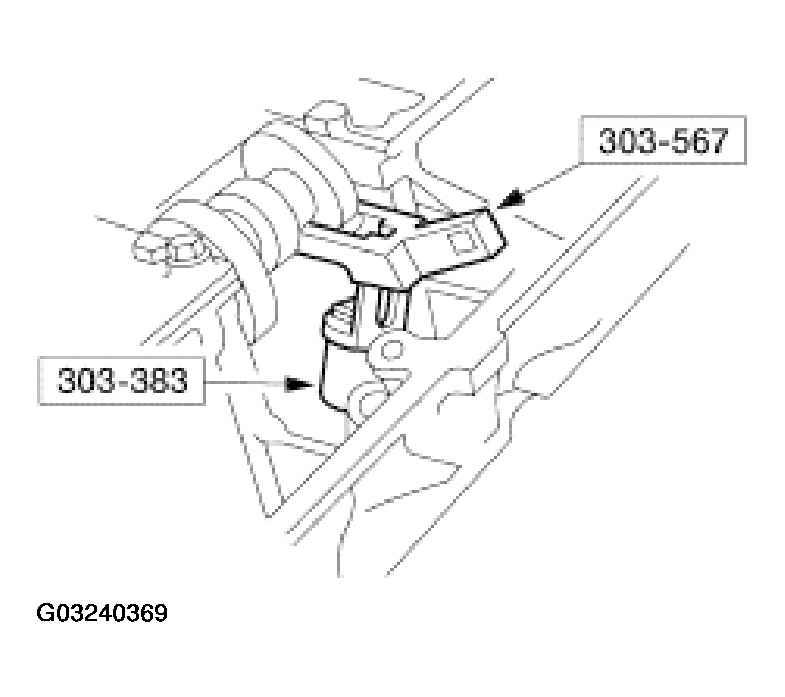

Fig 1: Installing Intake Valve Stem Seals
Courtesy of FORD MOTOR CO.
Using the special tools, install the new exhaust valve stem seals.

Fig 2: Installing Exhaust Valve Stem Seals
Courtesy of FORD MOTOR CO.
Install the Valve Spring Compressor Spacer between the valve spring coils to protect the intake valve stem seal from damage.

Fig 3: Installing Valve Spring Compressor Spacer Between Valve Spring Coils
Courtesy of FORD MOTOR CO.
Using the special tool, install the intake valve spring, the spring retainer and the valve spring retainer keys.

Fig 4: Installing Intake Valve Spring, Spring Retainer And Valve Spring Retainer Keys
Courtesy of FORD MOTOR CO.
Install the Valve Spring Compressor Spacer between the valve spring coils to protect the intake valve stem seal from damage.

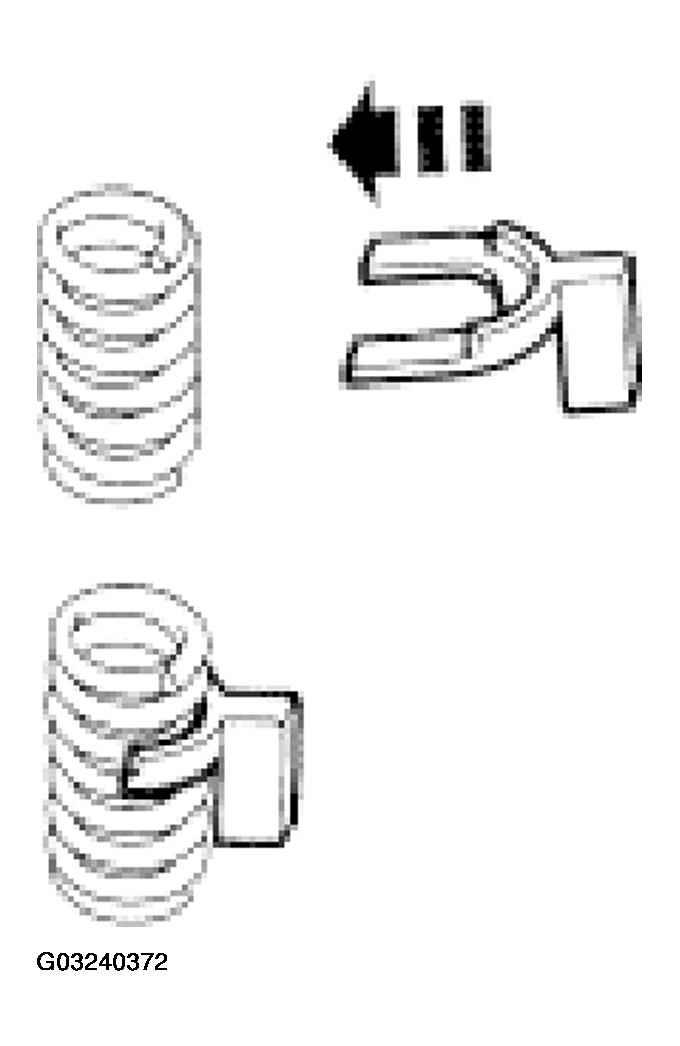

Fig 5: Installing Valve Spring Compressor Spacer Between Valve Spring Coils
Courtesy of FORD MOTOR CO.
Using the special tool, install the exhaust valve spring, the spring retainer and the valve spring retainer keys.

Fig 6: Installing Exhaust Valve Spring, Spring Retainer And Valve Spring Retainer Keys
Courtesy of FORD MOTOR CO.
Remove the compressed air hose from the cylinder.
Install the spark plugs. For additional information, refer to ENGINE IGNITION - 4.6L (4V) .
Install the roller followers. For additional information, refer to ROLLER FOLLOWERS .
