Crankshaft Front Oil Seal: Removal

  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Using the special tool, remove the crankshaft front oil seal.

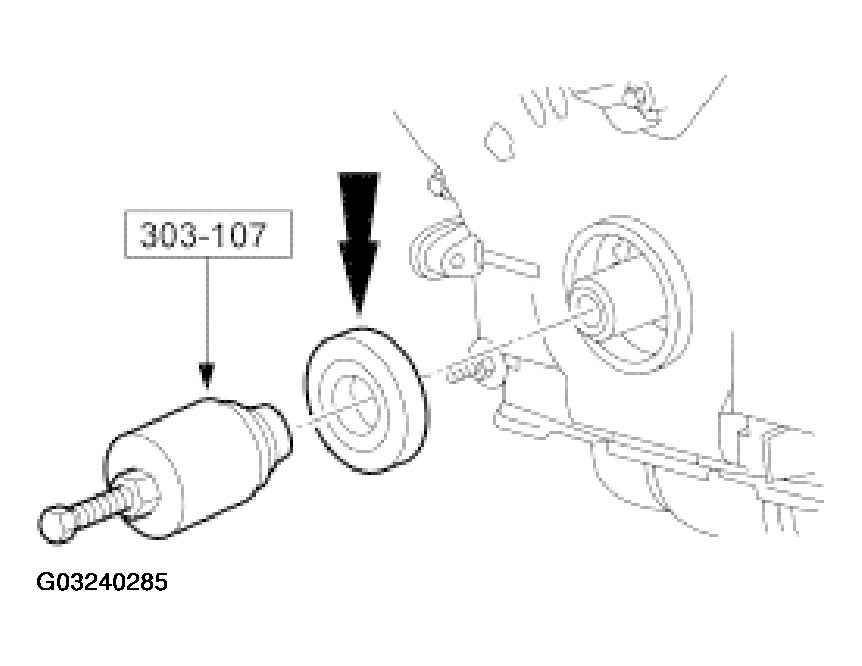

    Fig 1: Removing Crankshaft Front Oil Seal
    G03240285Courtesy of FORD MOTOR CO.
