Differential Carrier: Removal
- Remove the axle shafts. For additional information, refer to AXLE SHAFT .

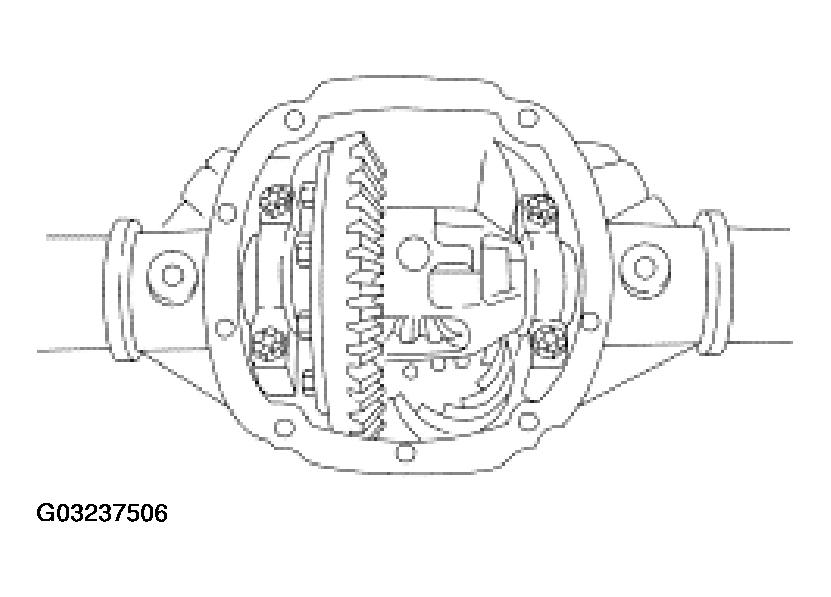

- Remove the 4 differential bearing cap bolts and the 2 differential bearing caps.

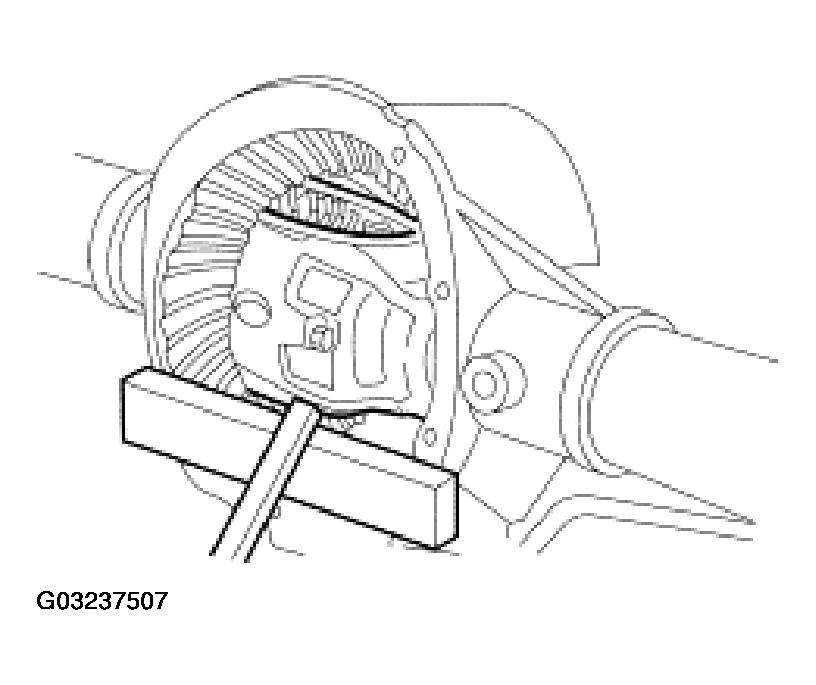

- Using pry bars and wood blocks, remove the differential carrier assembly from the axle housing.
CAUTION:
Index-mark the position of the differential bearing caps, as arrows may not be visible. The differential bearing caps must be installed in their original locations and positions.
WARNING:
Be careful not to allow the differential assembly to fall.
CAUTION:
Place a wood block between the pry bar and the axle housing to protect the machined surface from damage.
CAUTION:
Index-mark the position of the differential bearing shims. The differential bearing shims must be installed in their original locations and positions.
