Special Tool(s)

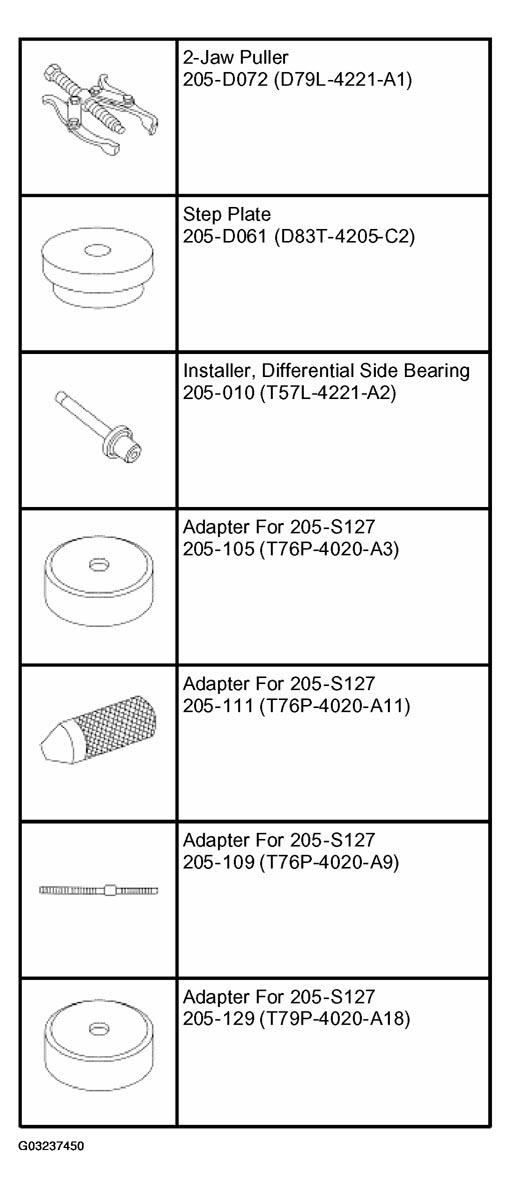

Fig 1: Identifying Special Tools (1 Of 3)
G03237450Courtesy of FORD MOTOR CO.

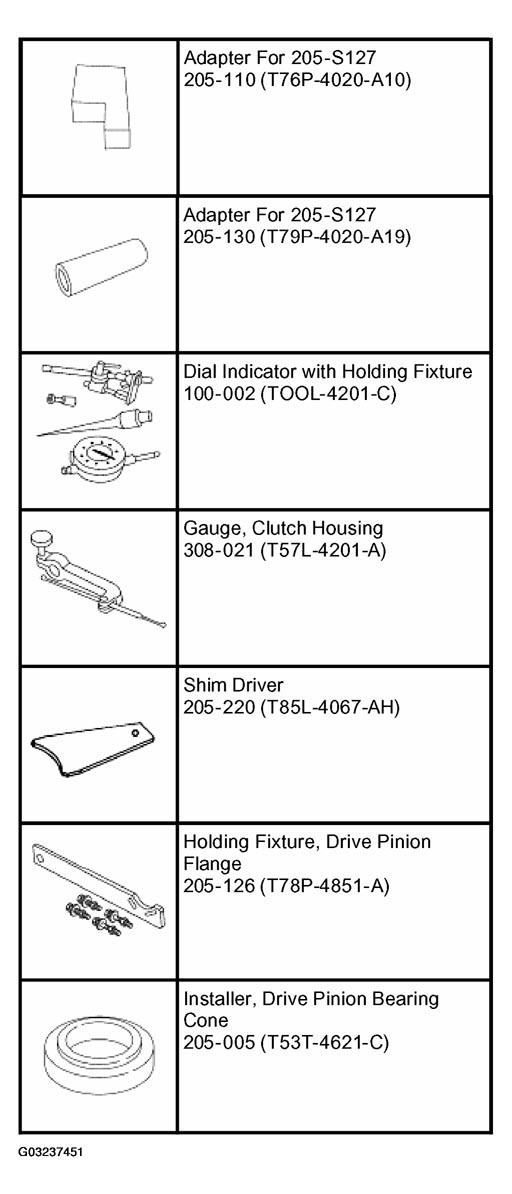

Fig 2: Identifying Special Tools (2 Of 3)
G03237451Courtesy of FORD MOTOR CO.

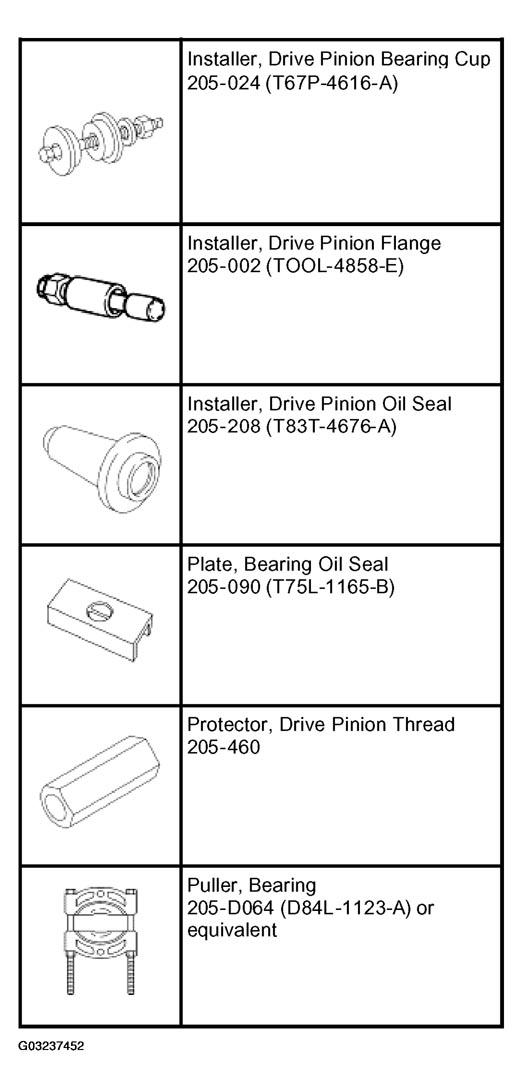

Fig 3: Identifying Special Tools (3 Of 3)
G03237452Courtesy of FORD MOTOR CO.
