Differential Case and Ring Gear - Traction-Lok®: Disassembly

Remove the differential assembly from the differential housing. For additional information, refer to DIFFERENTIAL CASE .
Remove the 10 bolts.

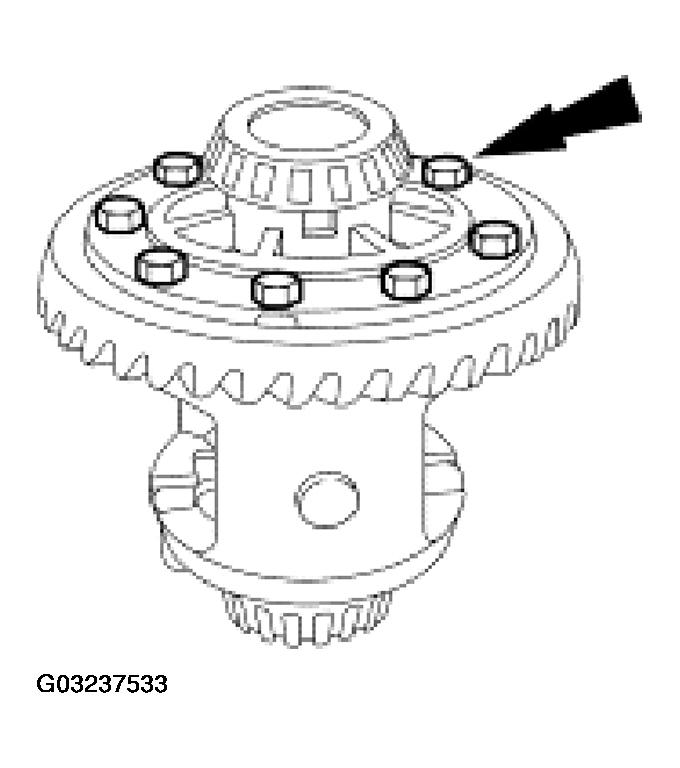

Fig 1: Removing Differential Case Bolt
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the threads in the bolt holes.

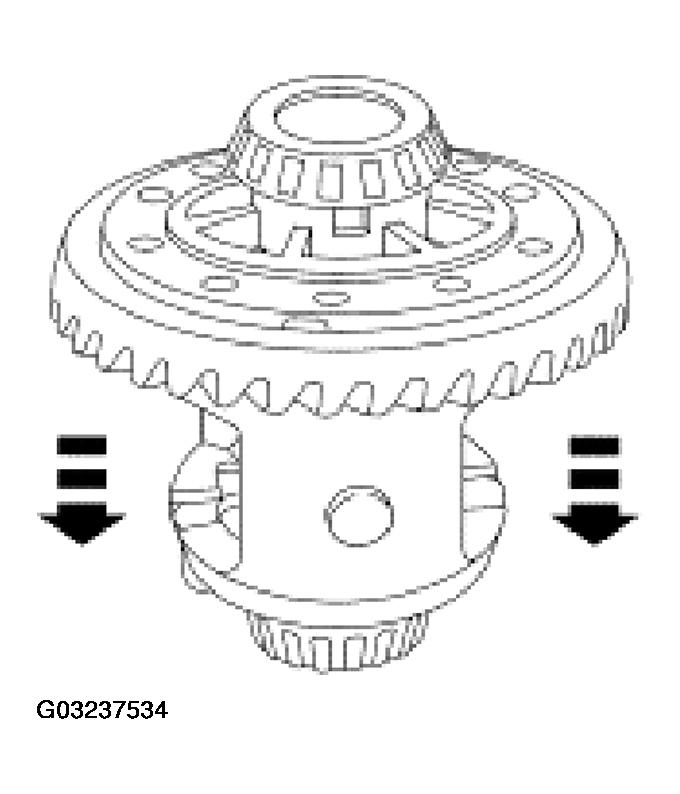

Fig 2: Removing Ring Gear

Courtesy of FORD MOTOR CO.

Insert a punch in the bolt holes, and drive off the ring gear.
Using the special tools, remove the differential bearings (4221), if necessary.

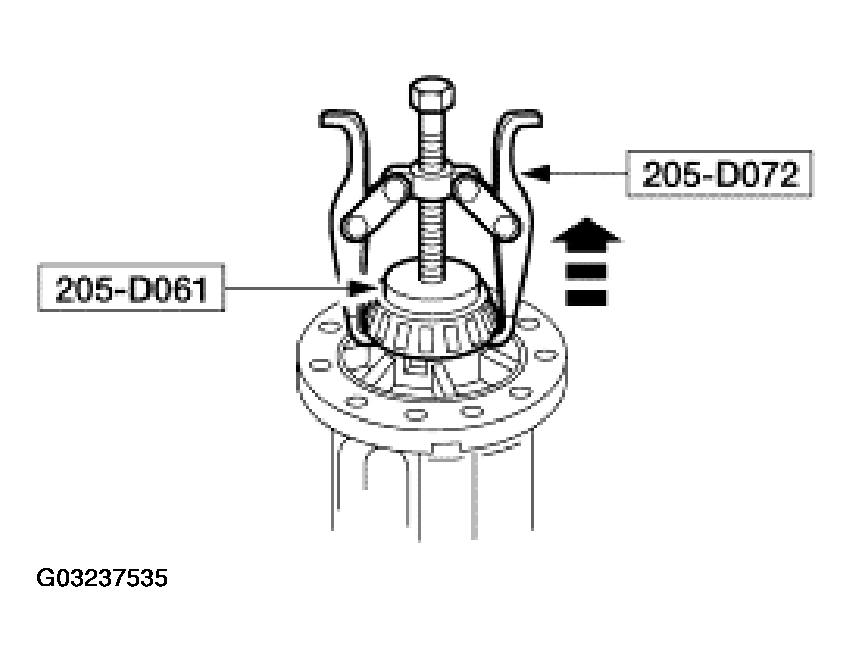

Fig 3: Removing Differential Bearings
Courtesy of FORD MOTOR CO.
Remove the bolt and the differential pinion shaft (4211).

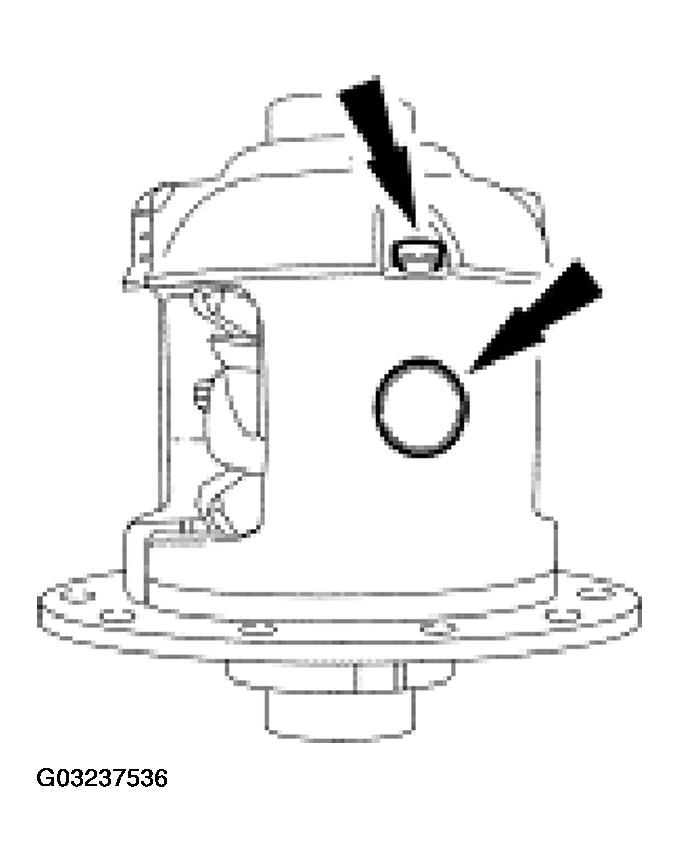

Fig 4: Removing Bolt And Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

WARNING: Due to the spring tension, use care when removing the differential clutch spring (4214). Failure to follow these instructions may result in personal injury.

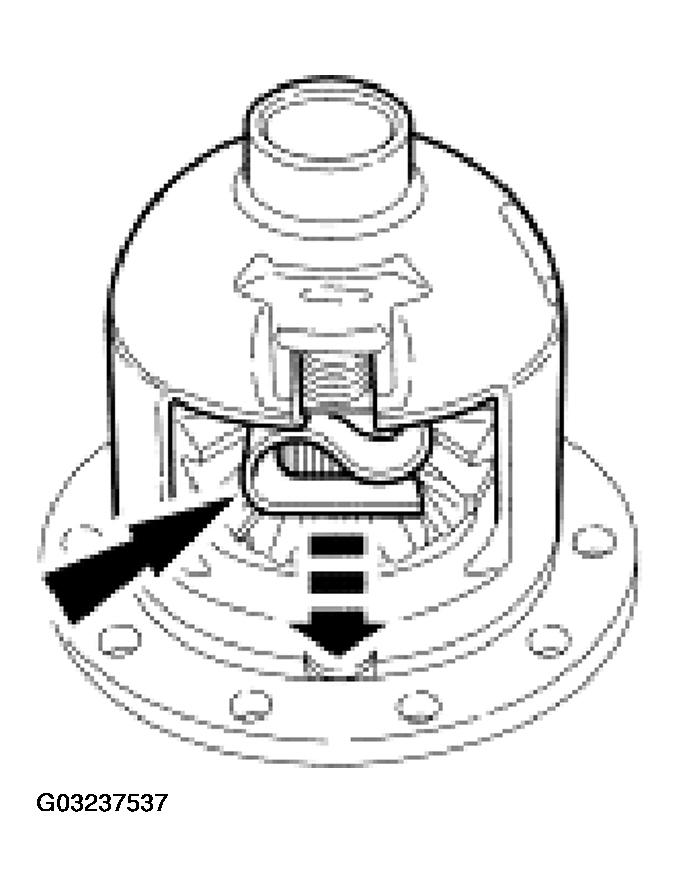

Fig 5: Removing Differential Clutch Spring

Courtesy of FORD MOTOR CO.

Remove the differential clutch spring.
Remove the differential gears.
1. Remove the two differential pinion gears (4215).
2. Remove the two differential side gears (4236).
3. Remove the two differential pinion thrust washers (4230).

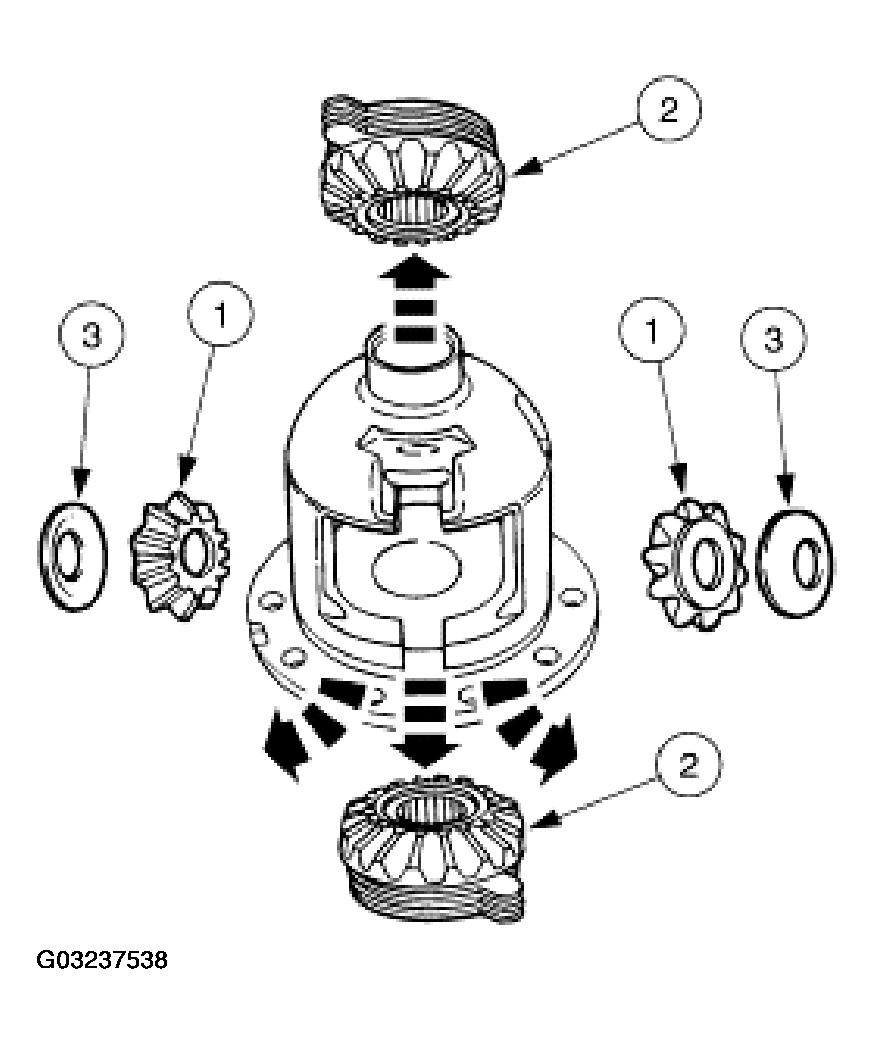

  Fig 6: Removing Differential Gears
  Courtesy of FORD MOTOR CO.

CAUTION: Keep the differential clutch packs (4947) in order. Do not mix them. Always reassemble them in the same sequence.

Separate the differential clutch packs and shims from the differential side gears and tag them "right" and "left".
- Clean and inspect the remaining differential components for wear and damage and install new parts as necessary.

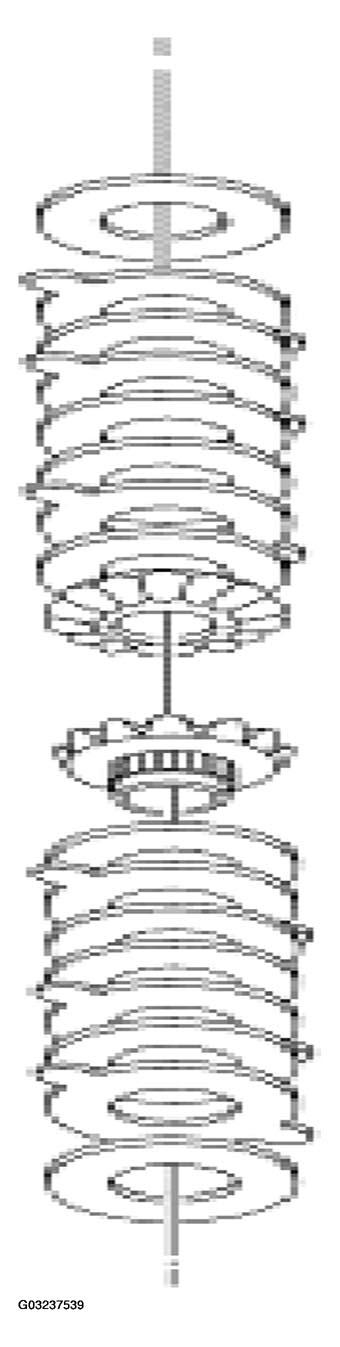

  Fig 7: Separating Differential Clutch Packs And Shims From Differential Side Gears
  Courtesy of FORD MOTOR CO.

CAUTION: Do not use acids or solvents when cleaning the differential clutch pack. Wipe components only with a clean, lint-free cloth.

Clean and inspect the differential clutch packs for wear and damage and install new parts as necessary.
