Special Tool(s)

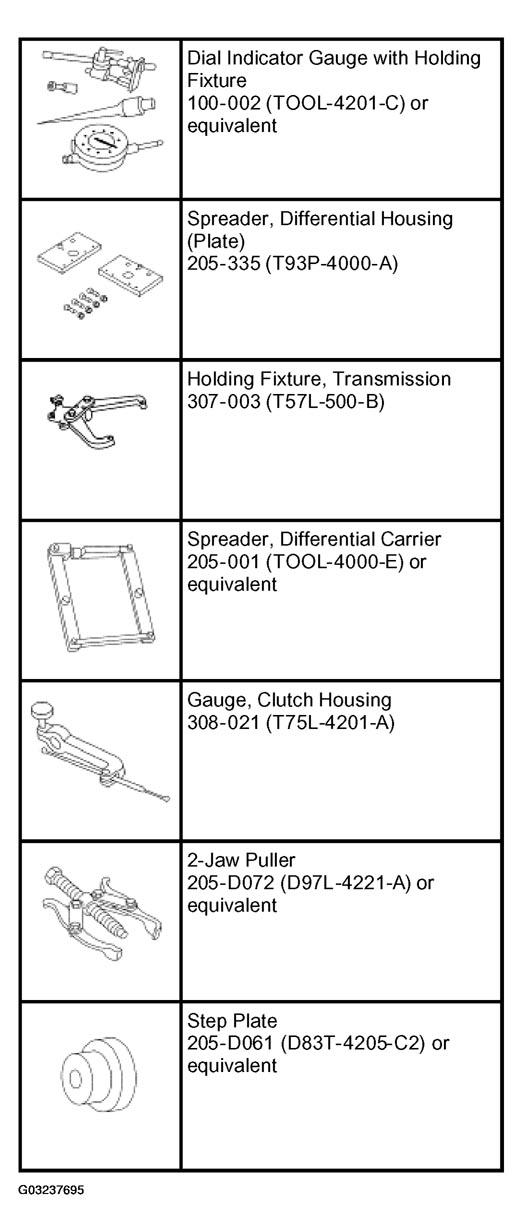

Fig 1: Identifying Special Tools (1 Of 3)
G03237695Courtesy of FORD MOTOR CO.

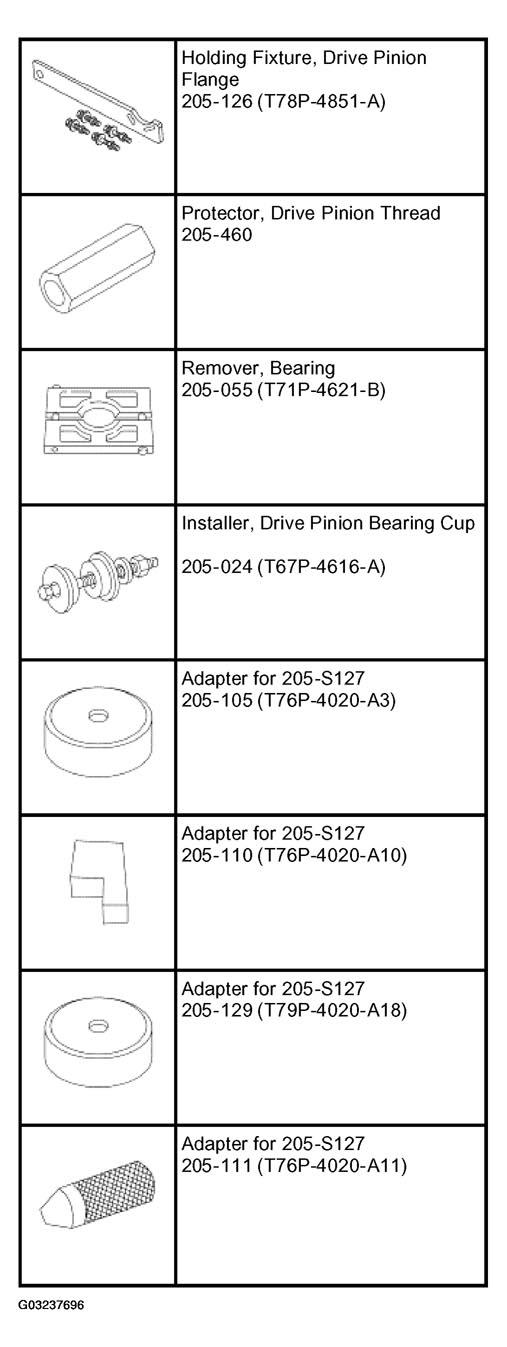

Fig 2: Identifying Special Tools (2 Of 3)
G03237696Courtesy of FORD MOTOR CO.

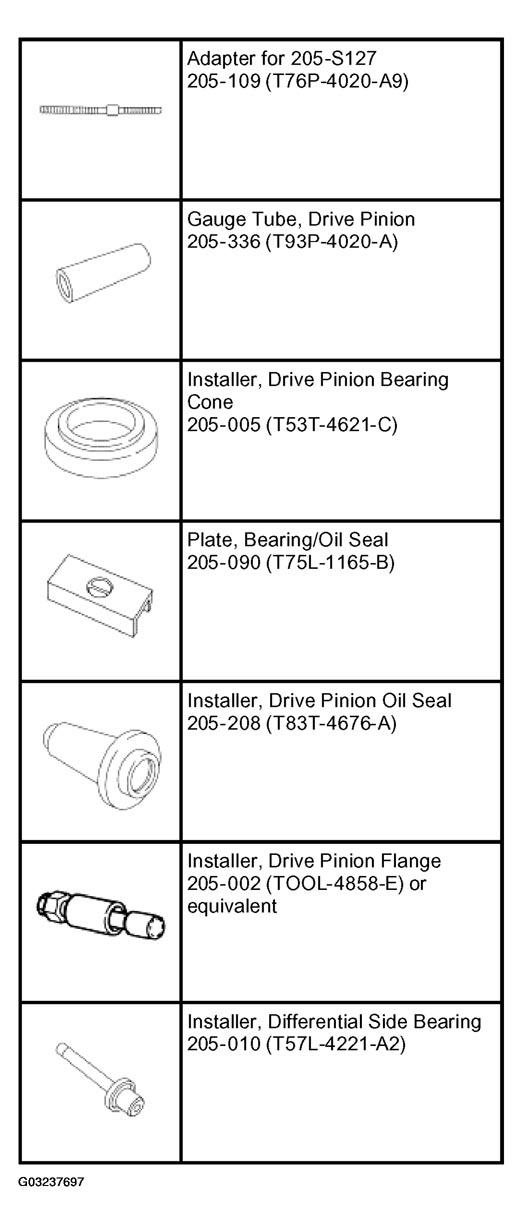

Fig 3: Identifying Special Tools (3 Of 3)
G03237697Courtesy of FORD MOTOR CO.
