Stub Shaft Pilot Bearing and Seal: Removal

  1. Remove the halfshaft assembly.
    • The knuckle and halfshaft are removable as an assembly. For additional information, refer to AXLE HOUSING . If it is necessary to remove the halfshaft from the knuckle, refer to REAR DRIVE HALFSHAFTS .
    2. NOTE: If only removing the inboard CV joint stub shaft pilot bearing housing seal (4B416), engage the tangs of the special tool only on the seal.
  2. Using the special tools, remove the inboard CV joint stub shaft pilot bearing housing seal and the inboard CV joint stub shaft pilot bearing (4B413).
    1. Firmly engage the tangs of the special tool on the bearing.
    2. Remove the bearing and the seal.

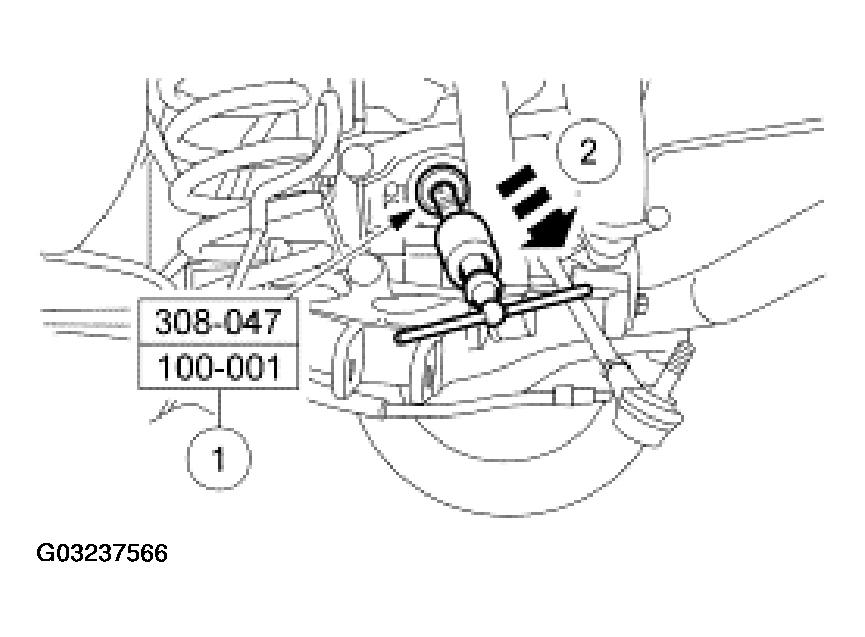

      Fig 1: Removing Inboard CV Joint Stub Shaft Pilot Bearing Housing Seal And Bearing
      G03237566Courtesy of FORD MOTOR CO.
