Pinion Seal: Removal

  1. Remove the pinion flange (4851). For additional information, refer to DRIVE PINION FLANGE .
  2. Force up the metal flange of the rear axle drive pinion seal (4676).
    • Install gripping pliers and strike with a hammer to remove the seal.

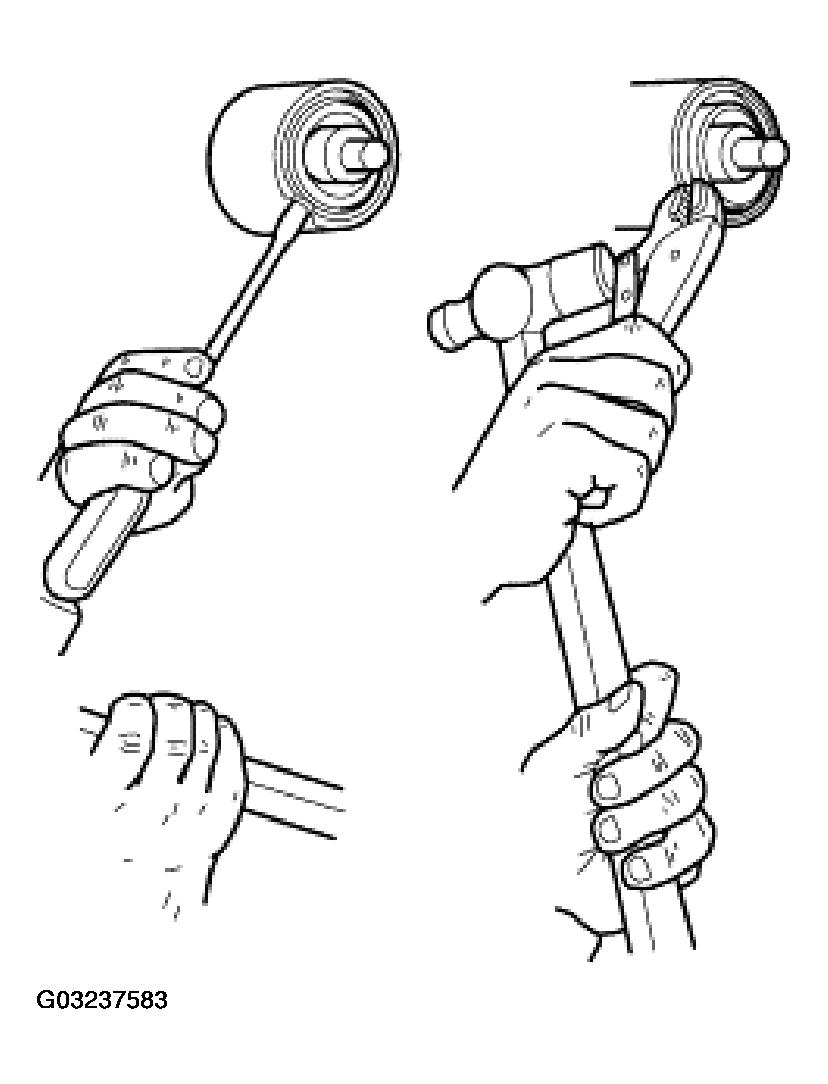

      Fig 1: Removing Rear Axle Drive Pinion Seal
      G03237583Courtesy of FORD MOTOR CO.
