Differential Carrier: Installation

Position the differential assembly in the axle housing.

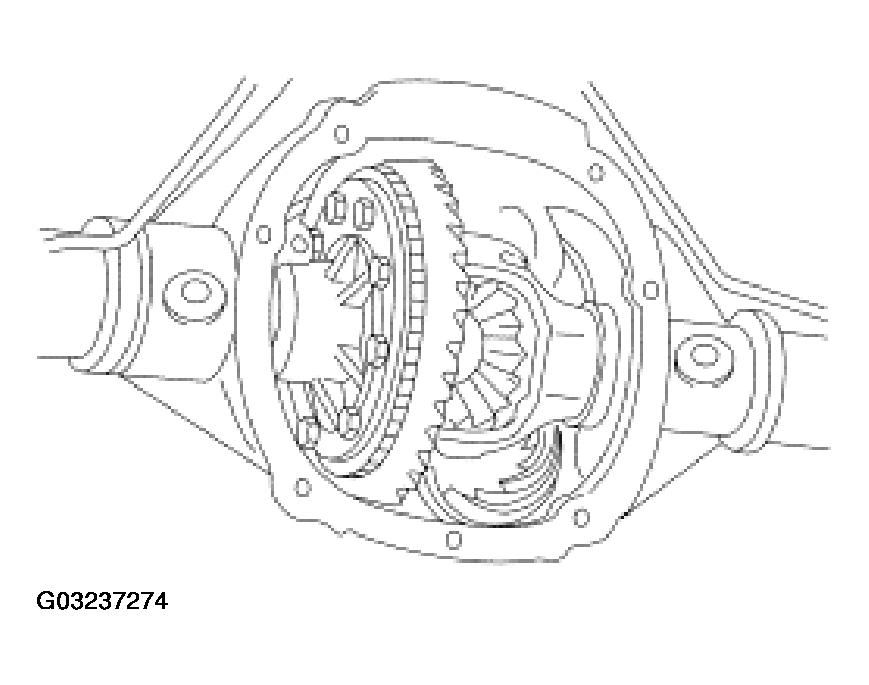

Fig 1: Positioning Differential Assembly In Axle Housing
Courtesy of FORD MOTOR CO.
Install the originally removed differential bearing shim on the LH side.

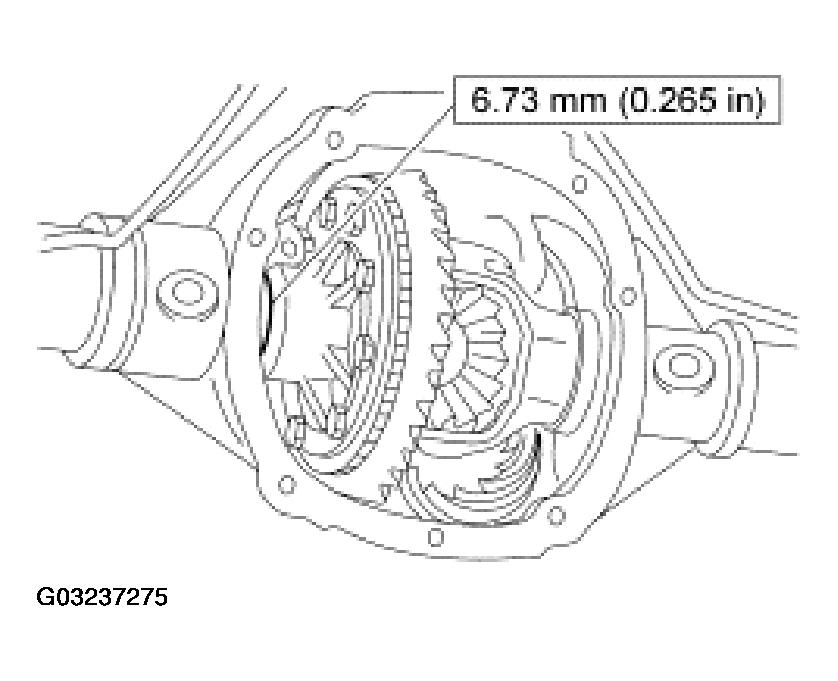

Fig 2: Installing Differential Bearing Shim
Courtesy of FORD MOTOR CO.

NOTE: Apply pressure toward the LH side to make sure the LH differential bearing cap is seated.

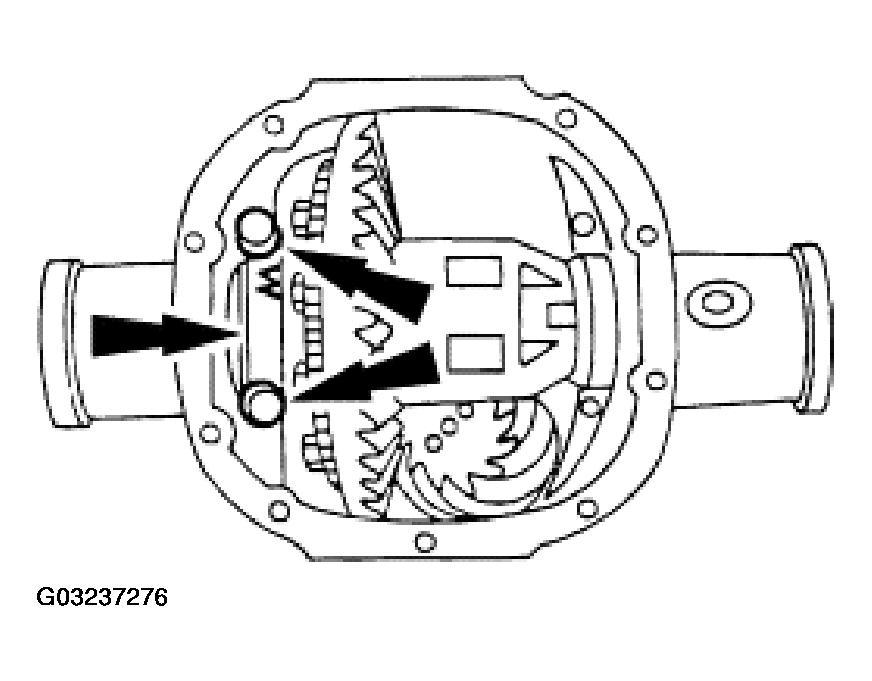

Fig 3: Installing LH Differential Bearing Cap

Courtesy of FORD MOTOR CO.

Install the LH differential bearing cap and loosely install the differential bearing cap bolts.
Install the original differential bearing shim on the RH side.

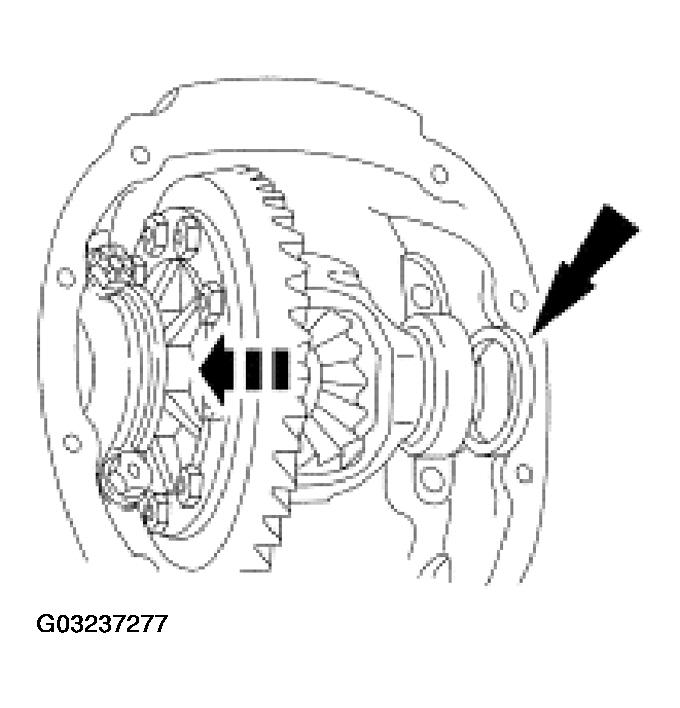

Fig 4: Installing Differential Bearing Shim
Courtesy of FORD MOTOR CO.
Using the special tool, fully seat the differential bearing shims.

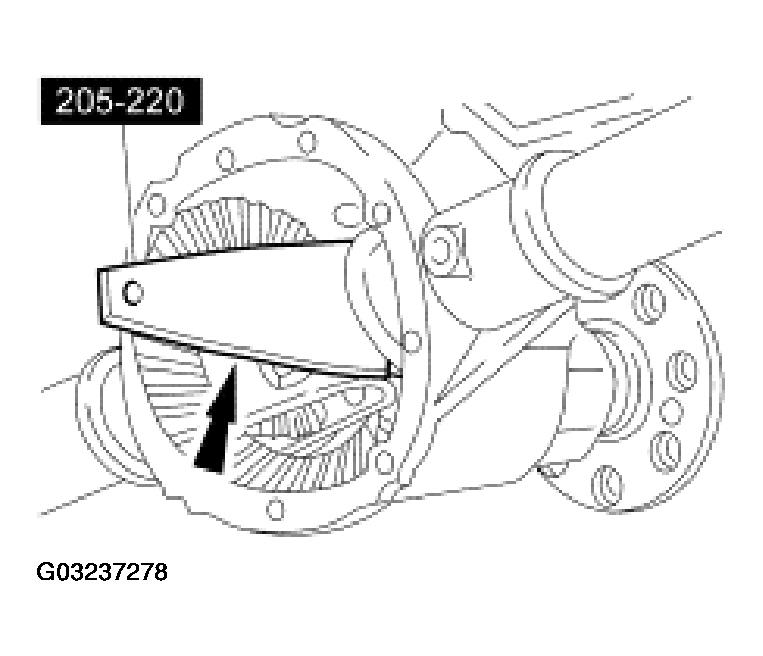

Fig 5: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the RH side differential bearing cap and tighten the LH side and RH side differential bearing cap bolts.
- Tighten to 105 N.m (77 lb-ft).

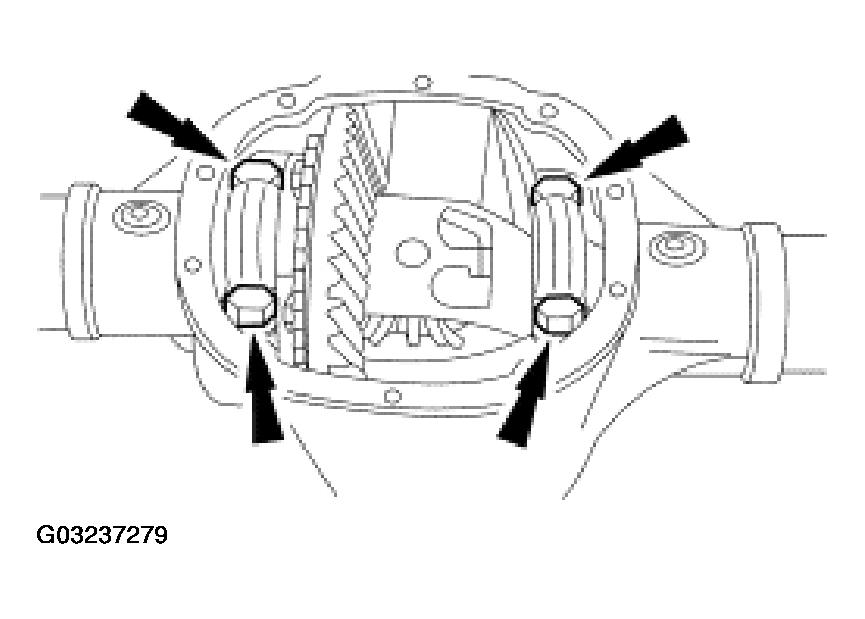

  Fig 6: Installing RH Side Differential Bearing Cap
  Courtesy of FORD MOTOR CO.
Rotate the differential assembly to make sure it rotates freely.

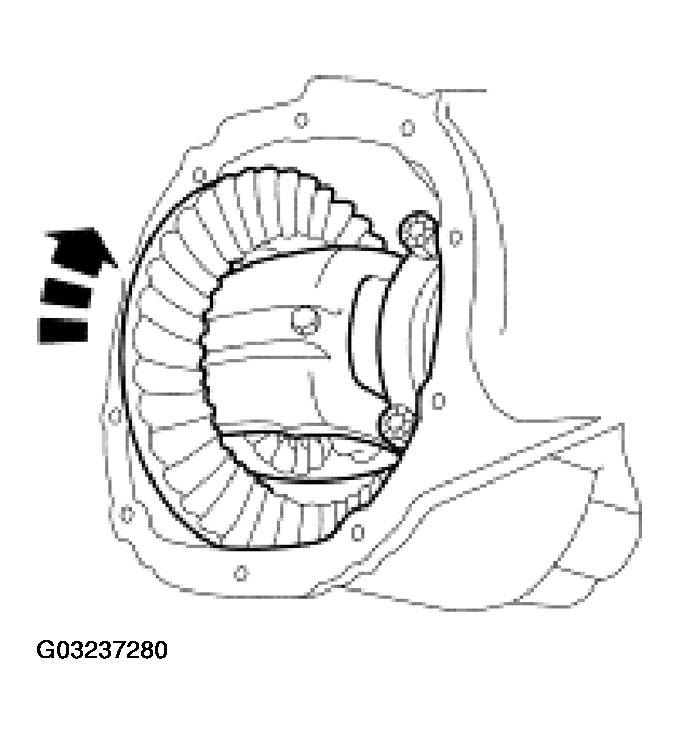

Fig 7: Rotating Differential Assembly
Courtesy of FORD MOTOR CO.
Measure the ring and pinion backlash.
Install the axle shafts. For additional information, refer to AXLE SHAFT .
