Removal and Installation

CAUTION: The vehicle must be on level ground and at curb height.

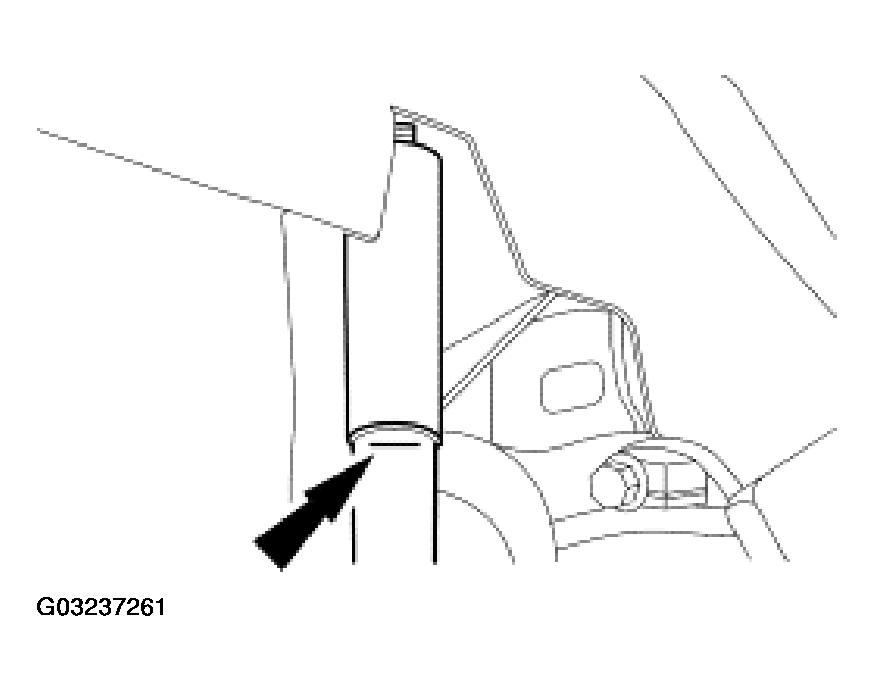

Mark the rear shock absorbers relative to their protective sleeve.
- During installation, raise the suspension to this reference mark before tightening the suspension fasteners.

  Fig 1: Marking Rear Shock Absorbers
  Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to RIDING HEIGHT ADJUSTMENT .
Remove the drive pinion. For additional information, refer to DRIVE PINION .

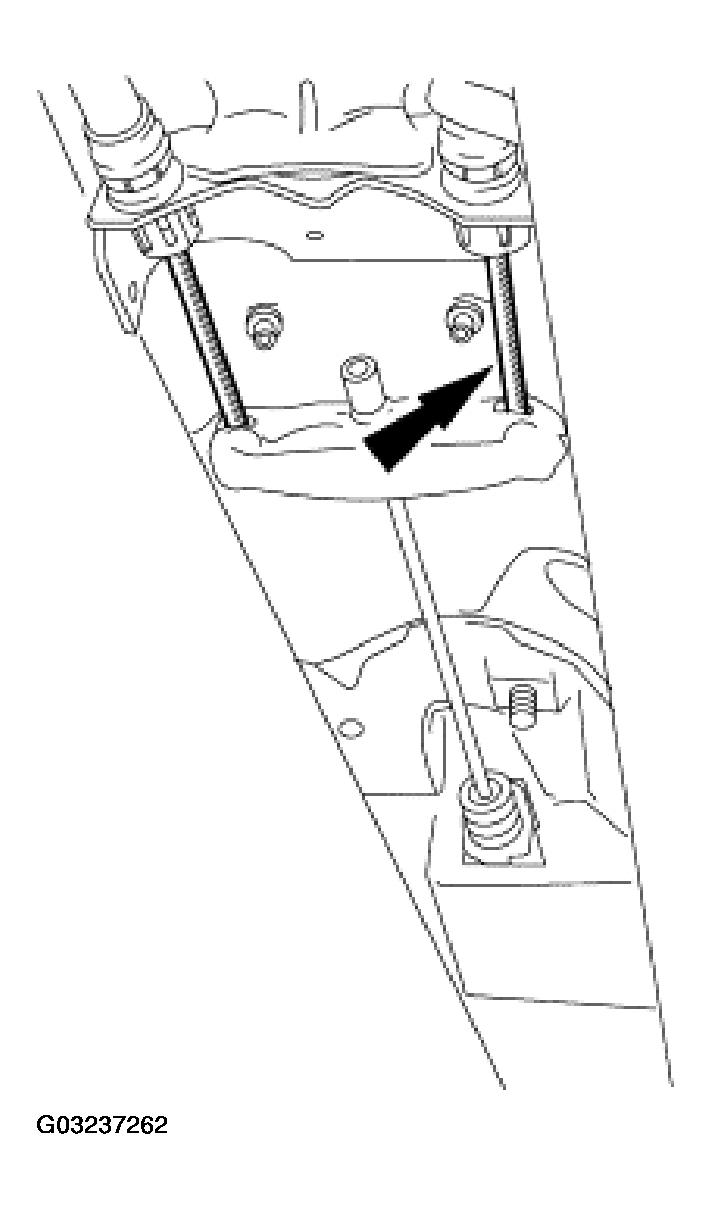

Disconnect the parking brake rear cables.

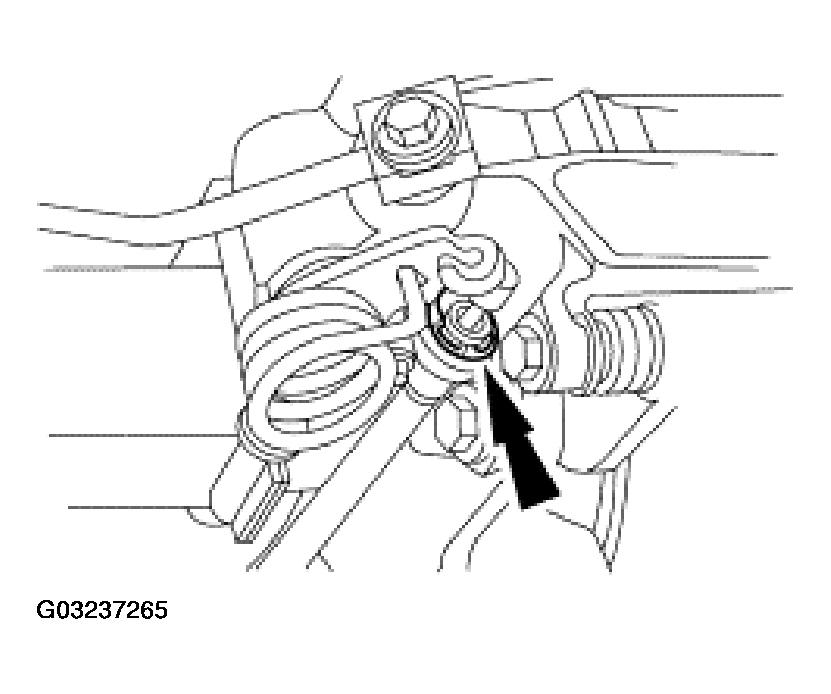

Fig 2: Disconnecting Parking Brake Rear Cables
Courtesy of FORD MOTOR CO.
Remove the parking brake rear cables and conduit from the routing clip bolts.

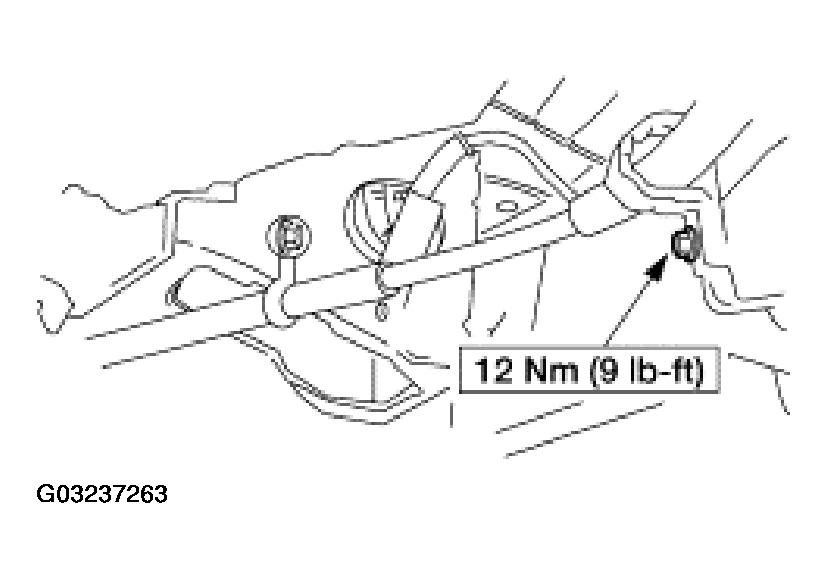

Fig 3: Removing Parking Brake Rear Cables
Courtesy of FORD MOTOR CO.
Disconnect the parking brake rear cables from the parking brake lever.

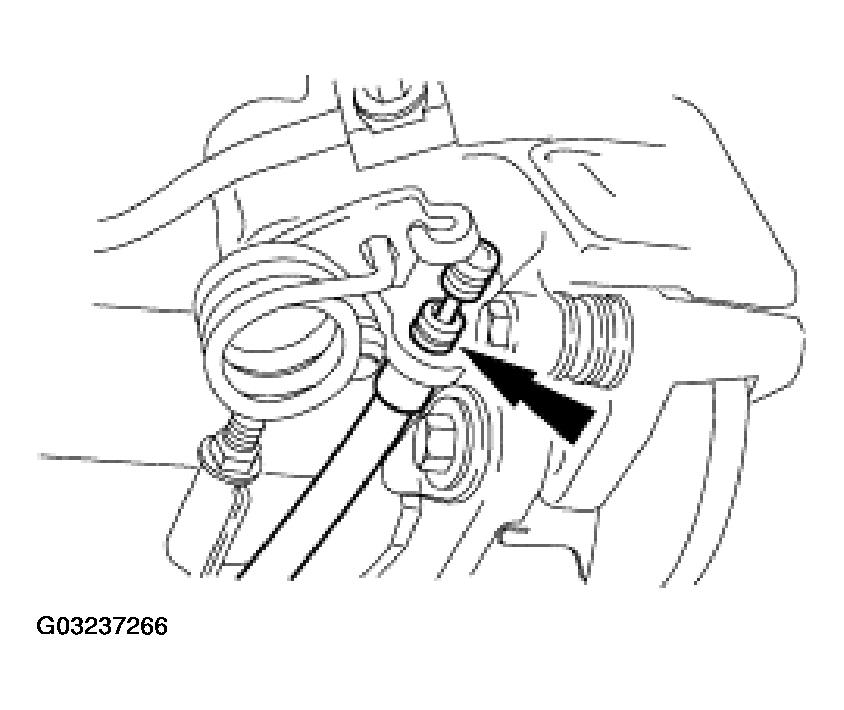

Fig 4: Disconnecting Parking Brake Rear Cables
Courtesy of FORD MOTOR CO.
Remove the clip from the rear disc brake calipers.

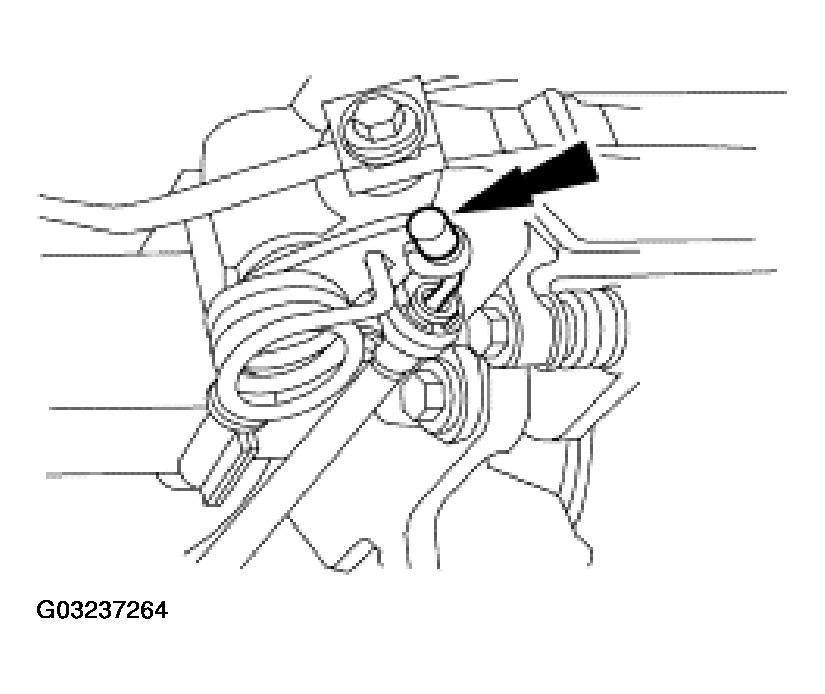

Fig 5: Removing Clip From Rear Disc Brake Calipers
Courtesy of FORD MOTOR CO.
Remove the parking brake rear cables and conduit from the rear disc brake calipers.

Fig 6: Removing Parking Brake Rear Cables
Courtesy of FORD MOTOR CO.
Position a suitable jack under the differential housing for support and strap it securely in place.

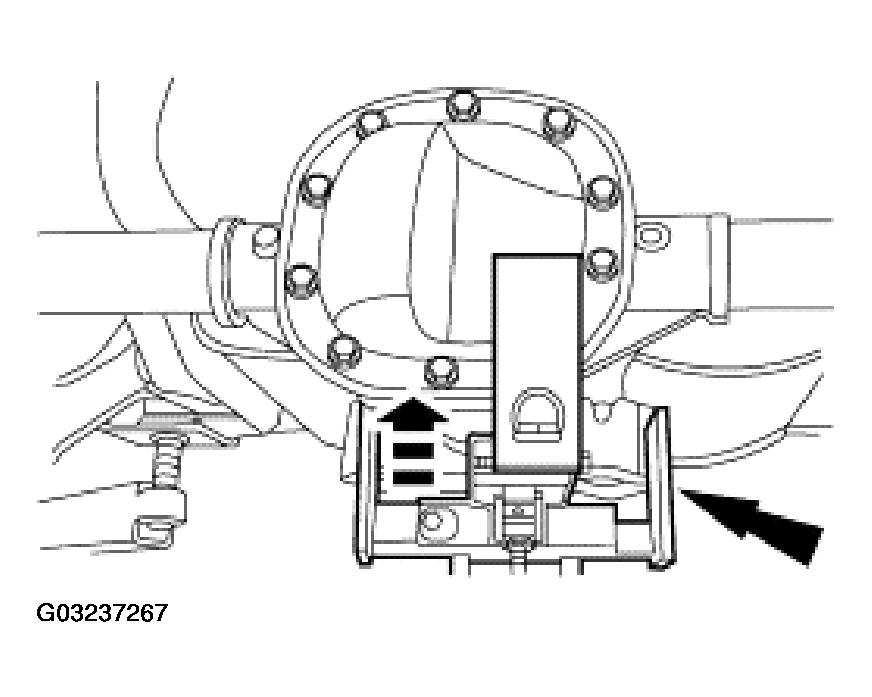

Fig 7: Positioning Jack Under Differential Housing
Courtesy of FORD MOTOR CO.
Remove and discard the nuts and bolts retaining the upper suspension arm and bushings to the differential housing.

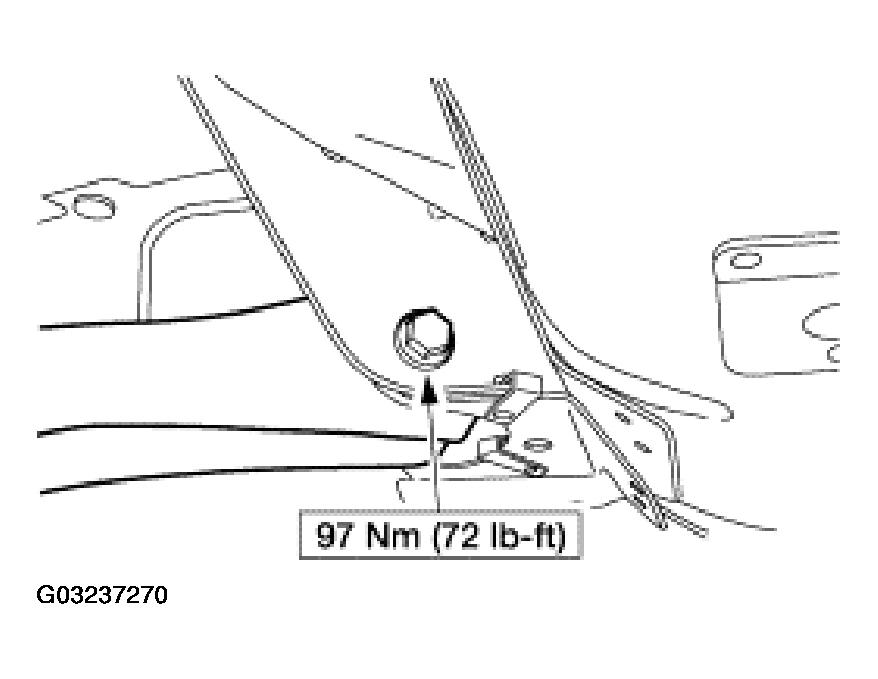

Fig 8: Removing Nuts And Bolts
Courtesy of FORD MOTOR CO.
Remove and discard the nuts and bolts retaining the shock absorbers to the axle.

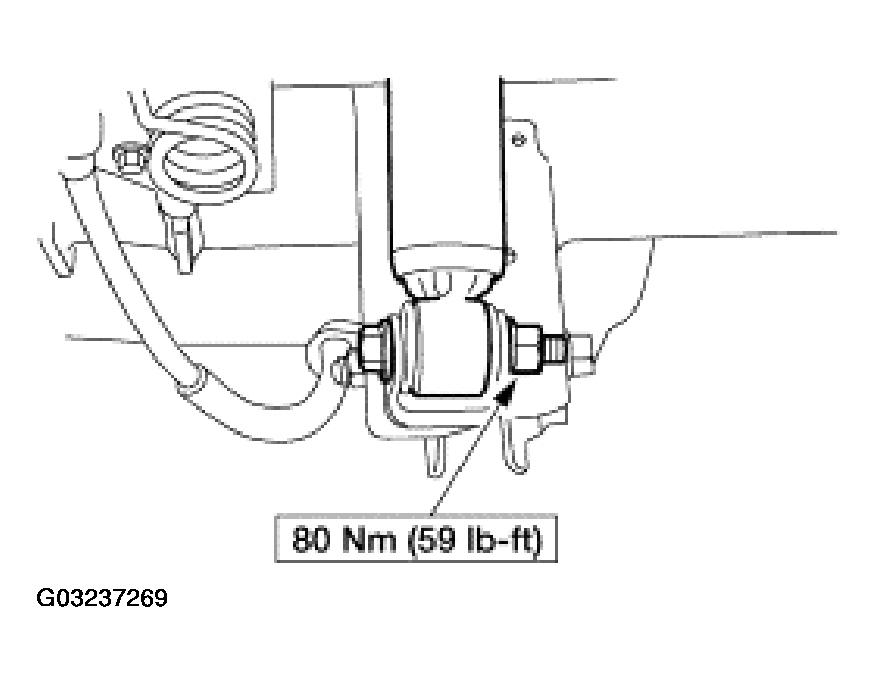

Fig 9: Removing Nuts And Bolts
Courtesy of FORD MOTOR CO.
Lower the differential housing and remove the rear springs.
Remove and discard the nuts and bolts retaining the lower suspension arm and bushings to the axle.

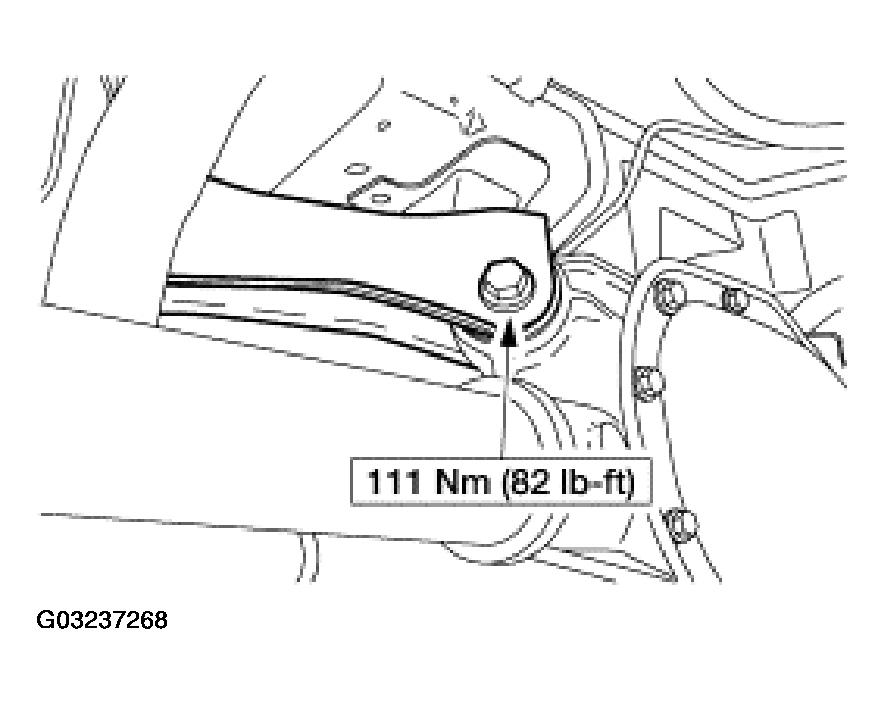

Fig 10: Removing Nuts And Bolts
Courtesy of FORD MOTOR CO.
Disconnect the lower suspension arm and bushings from the axle.

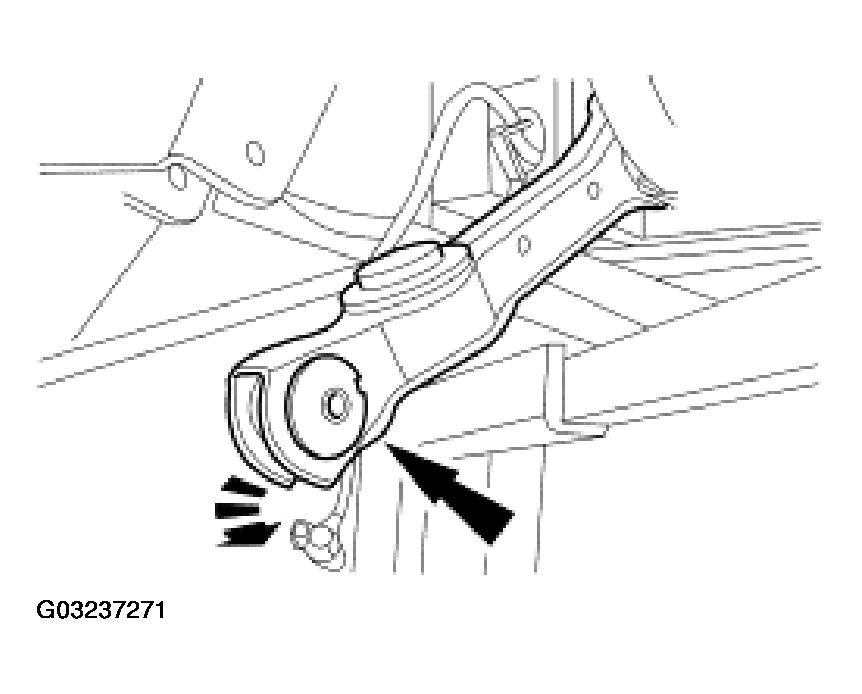

Fig 11: Disconnecting Lower Suspension Arm And Bushings
Courtesy of FORD MOTOR CO.
Remove the axle from the vehicle.
To install, reverse the removal procedure.
