Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

  1. Remove the axle shaft (4234). For additional information, refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal is leaking, the axle housing vent may be plugged with foreign material.
    NOTE: If only a new seal needs to be installed, use care to avoid damaging the seal bore.
  2. Remove and discard the oil seal.
  3. Inspect the rear wheel bearing and axle shaft for wear or damage.
  4. If necessary, using the special tools, remove the rear wheel bearing.

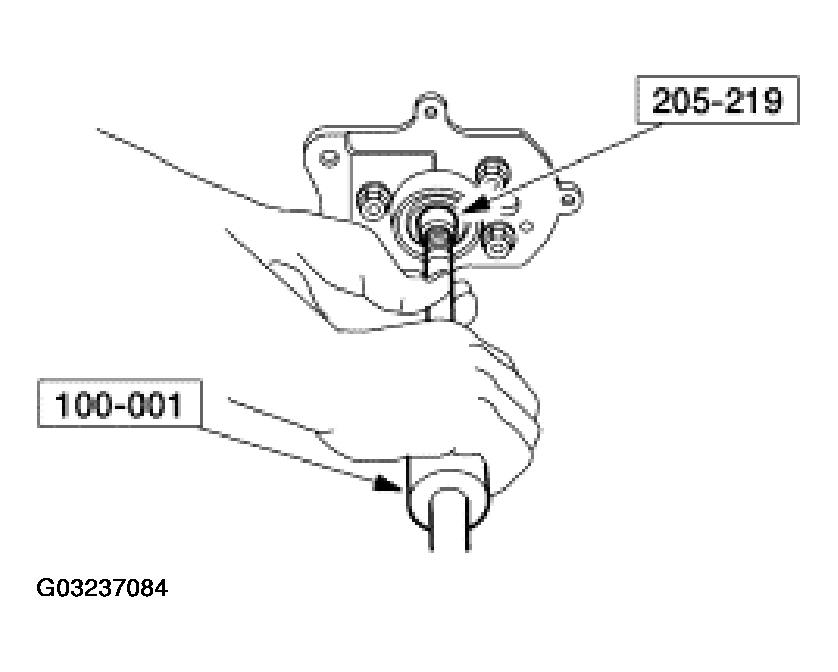

    Fig 1: Removing Rear Wheel Bearing
    G03237084Courtesy of FORD MOTOR CO.
