Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

  1. Lubricate the new rear wheel bearing with the specified lubricant.
  2. Using the special tools, install the new rear wheel bearing.
    Fig 1: Installing Rear Wheel Bearing
    G03237085Courtesy of FORD MOTOR CO.
  3. Apply grease to the lip of the new wheel bearing oil seal.
  4. Using the special tools, install the new wheel bearing oil seal.

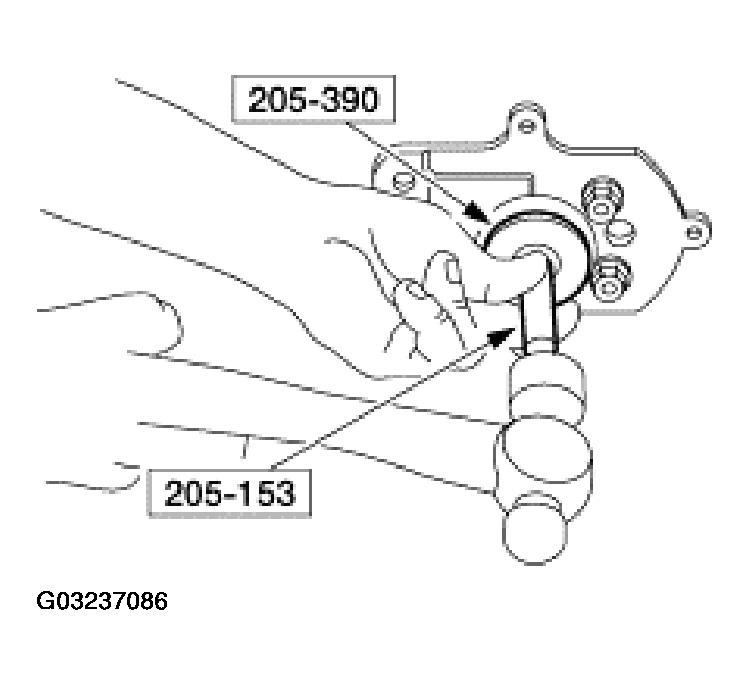

    Fig 2: Installing Wheel Bearing Oil Seal
    G03237086Courtesy of FORD MOTOR CO.
  5. Install the axle shaft. For additional information, refer to AXLE SHAFT .
