Differential Housing Cover: Removal

  1. Raise and support the vehicle. For additional information, refer to RIDING HEIGHT ADJUSTMENT .
    2. NOTE: Empty the lubricant into a clean container for reuse.
  2. Remove the differential housing cover (4033).
    1. Remove the 10 bolts and drain the lubricant from the differential housing (4010).
    2. Remove the differential housing cover.

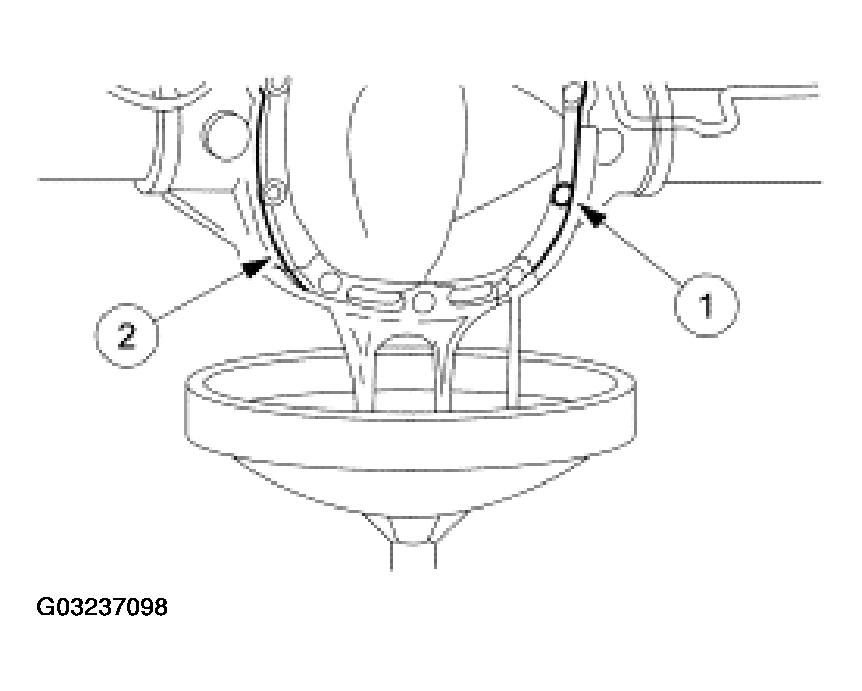

      Fig 1: Removing Differential Housing Cover
      G03237098Courtesy of FORD MOTOR CO.
