Differential Case and Ring Gear: Disassembly

Remove the differential assembly from the differential housing. For additional information, refer to DIFFERENTIAL CASE .

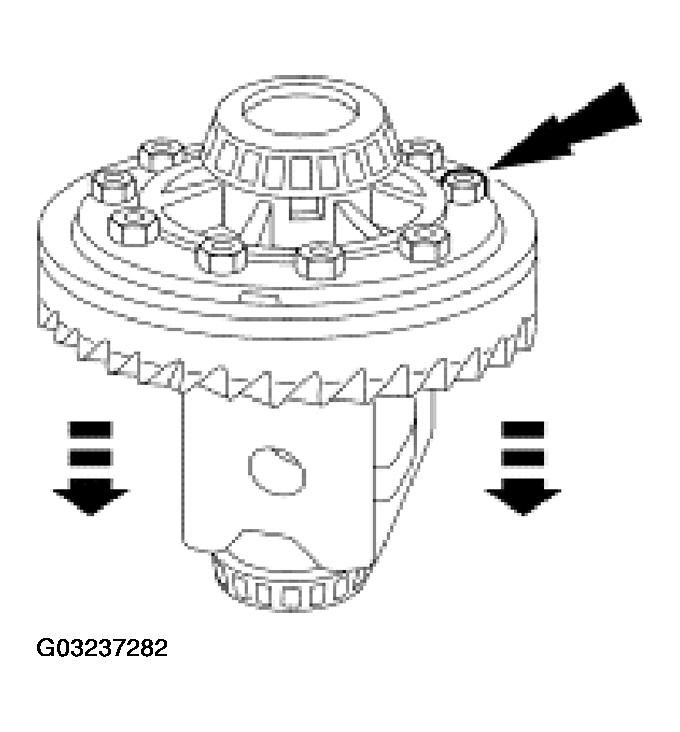

Remove the bolts.

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the threads in the bolt holes.

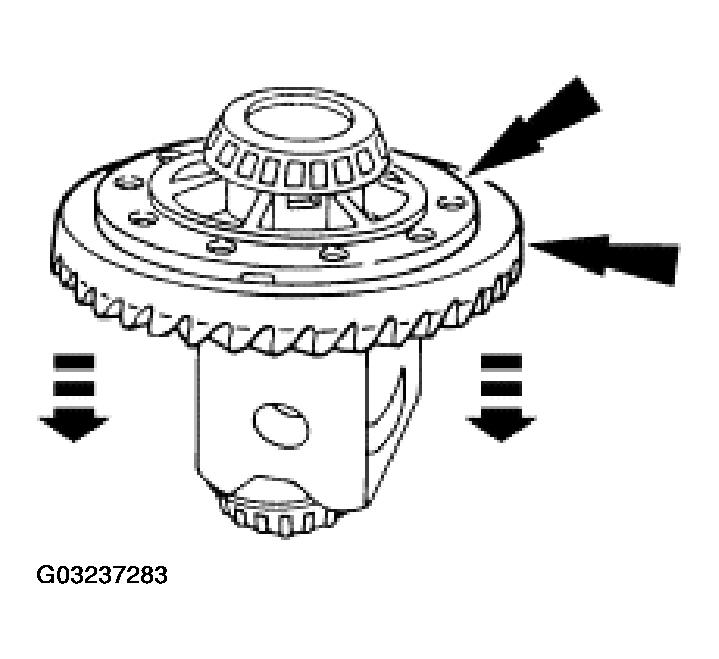

Fig 2: Inserting Punch In Bolt Holes

Courtesy of FORD MOTOR CO.

Insert a punch in the bolt holes and drive off the ring gear.

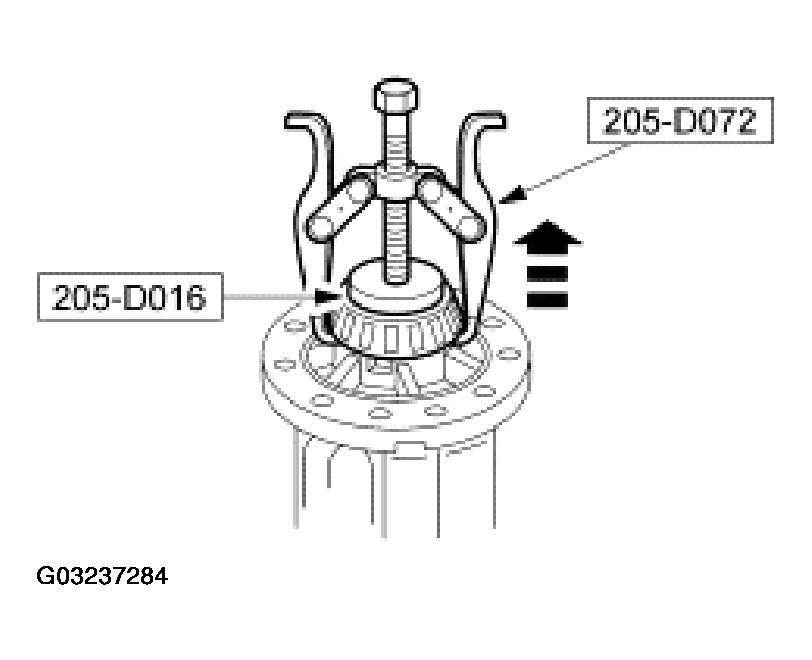

Using the special tools, remove the differential bearings (4221), if necessary.

Fig 3: Removing Differential Bearings
Courtesy of FORD MOTOR CO.

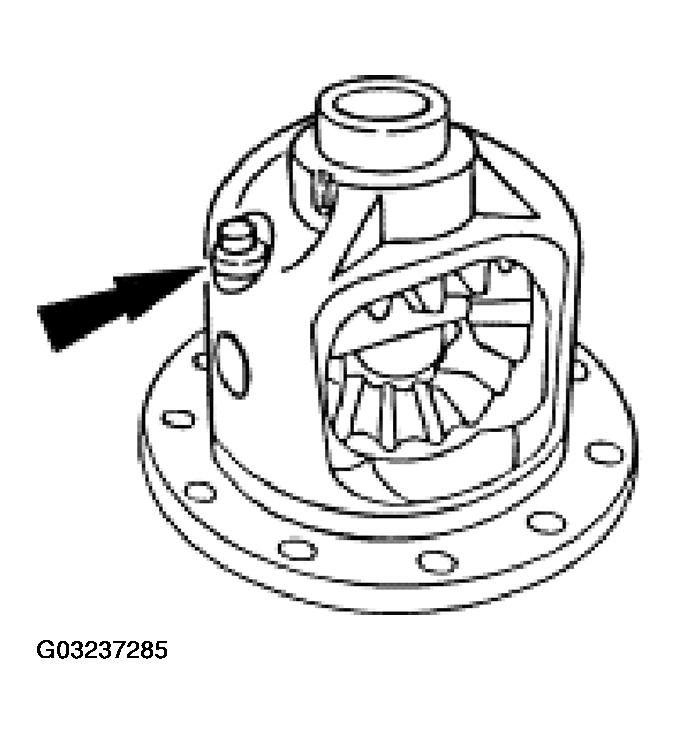

Remove the bolt.

Fig 4: Removing Bolt
Courtesy of FORD MOTOR CO.

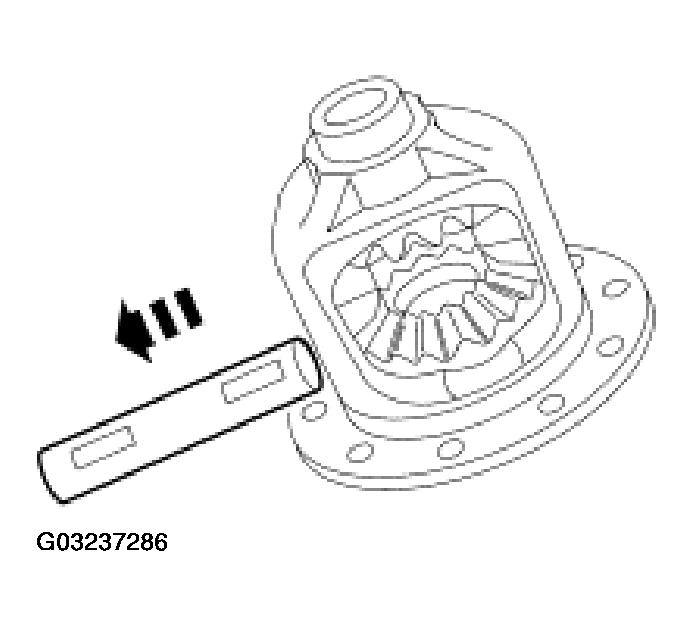

Remove the differential pinion shaft (4211).

Fig 5: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

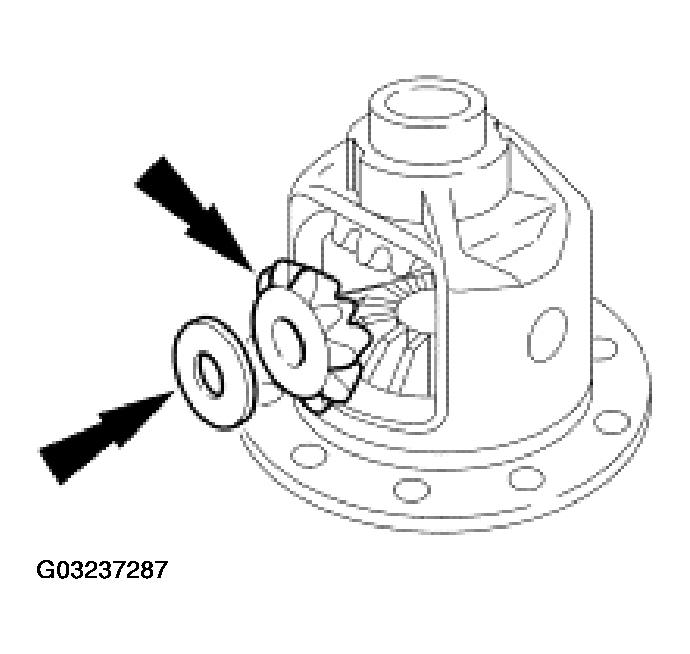

Rotate and remove the differential pinion gears (4215) and differential pinion thrust washers (4230).

Fig 6: Removing Differential Pinion Gears
Courtesy of FORD MOTOR CO.

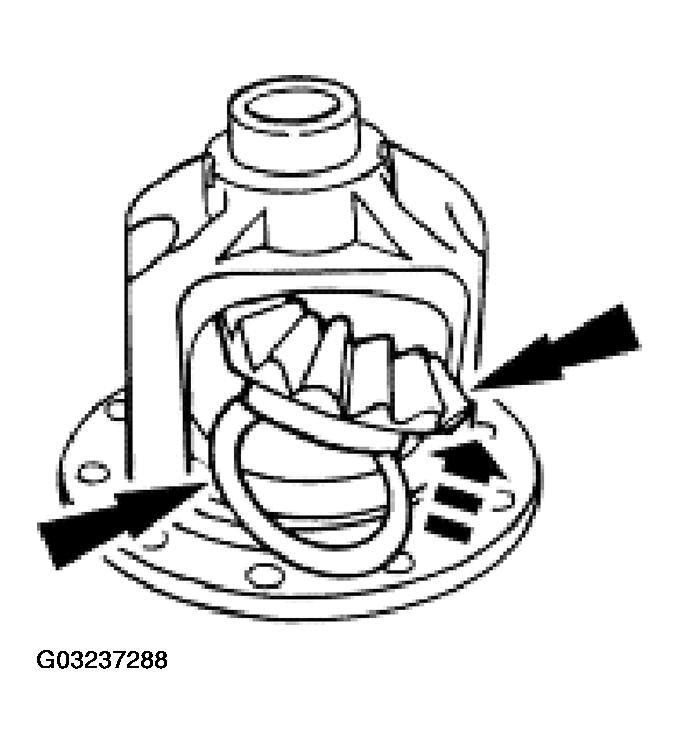

Remove the differential side gears (4236) and the differential side gear thrust washers (4228).

Fig 7: Removing Differential Side Gears
