Rear Drive Axle/Differential - Ford 7.5" Ring Gear
>>
Diagnosis And Testing
>>
Rear Drive Axle and Differential
>>
Checking Tooth Contact Pattern and Condition of the Ring and Pinion
>>
Thick Contact Pattern That Is Contacting Tooth Toward the Toe
Thick Contact Pattern That Is Contacting Tooth Toward the Toe

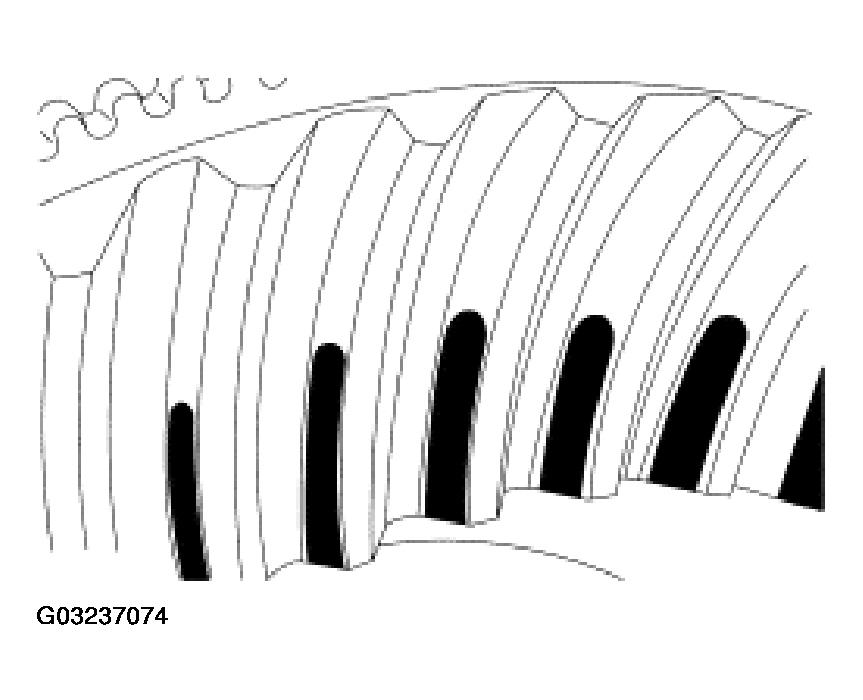

Fig 1: Identifying Thick Contact Pattern - Toward Toe
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
