Rear Brake Caliper & Pads: Removal

  1. Use a suitable suction device to lower the brake fluid level in the master cylinder reservoir.
  2. Raise and support vehicle. Remove rear wheels.
  3. Disconnect and plug brake hose at caliper.
  4. Disengage the parking brake cable end from the parking brake lever arm. See Fig 1.
  5. Remove the parking brake cable retaining clip. See Fig 2.
  6. Remove the parking brake cable and conduit. See Fig 3.
  7. Remove the rear disc brake caliper brake hose flow bolt. See Fig 4.
  8. Remove the rear brake caliper bolts and remove the caliper. See Fig 4.
  9. Remove brake pads from anchor plate. See Fig 5.
  10. Remove the slippers. See Fig 6.
  11. Measure the brake disc, resurface and or install new as necessary. See Fig 7.

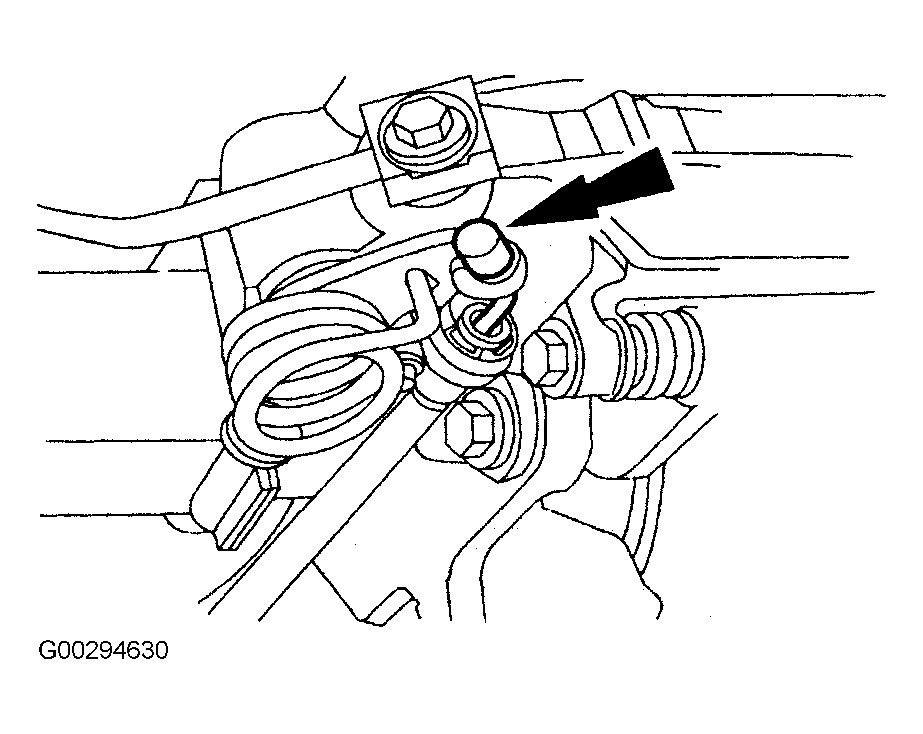

Fig 1: Disconnecting Park Brake Cable End From Parking Brake Lever
G00294630Courtesy of FORD MOTOR CO.

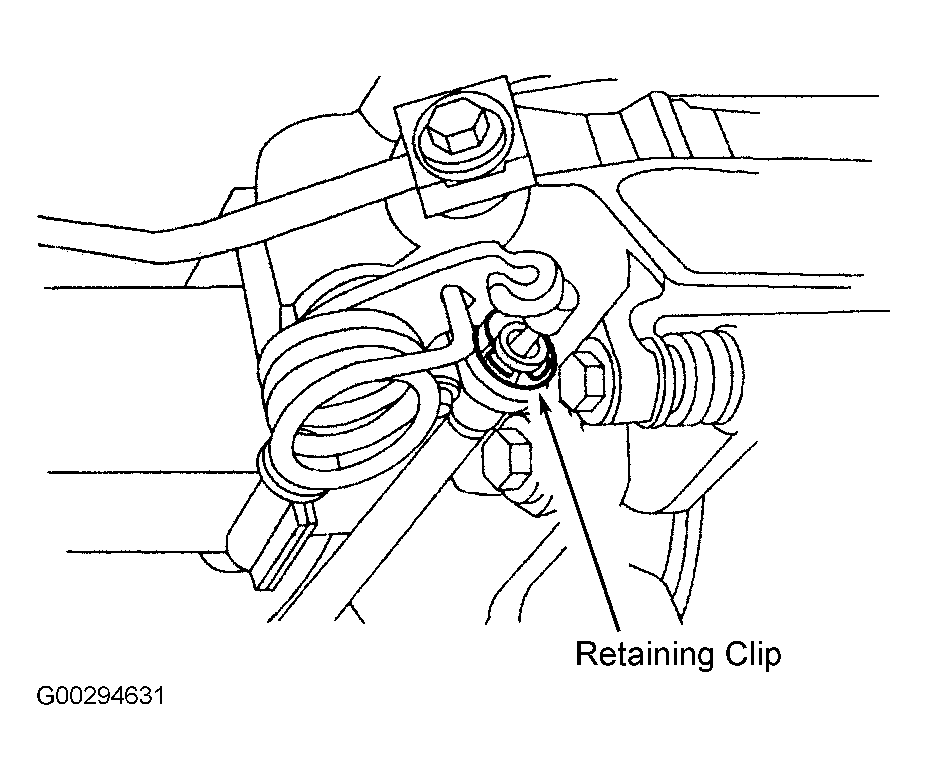

Fig 2: Removing Parking Brake Cable Retaining Clip
G00294631Courtesy of FORD MOTOR CO.

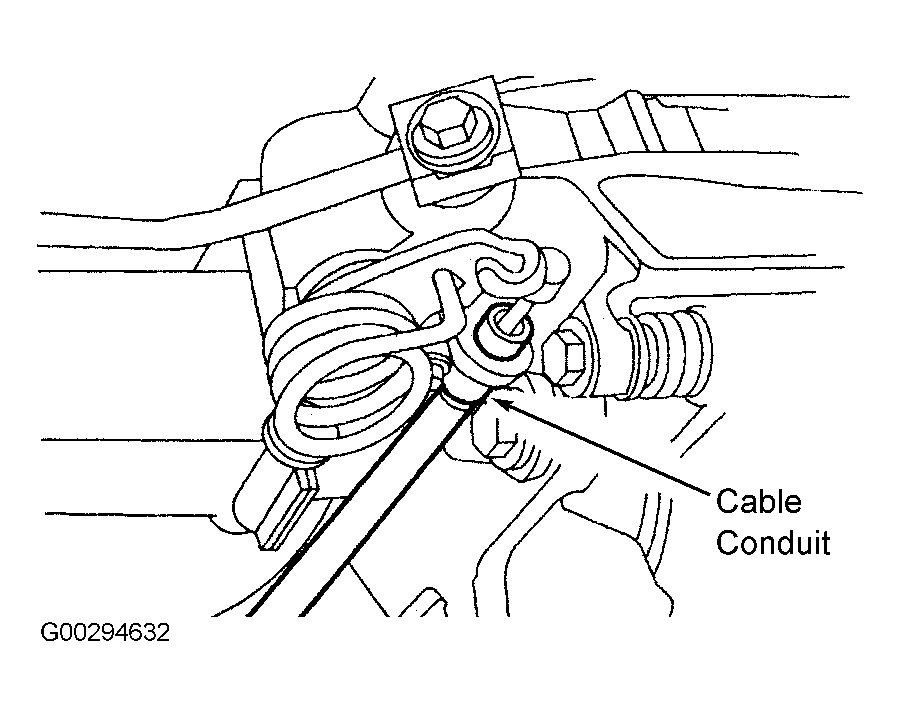

Fig 3: Removing Parking Brake Cable & Conduit
G00294632Courtesy of FORD MOTOR CO.
Fig 4: Identifying Rear Caliper & Flow Bolts
G00294633Courtesy of FORD MOTOR CO.

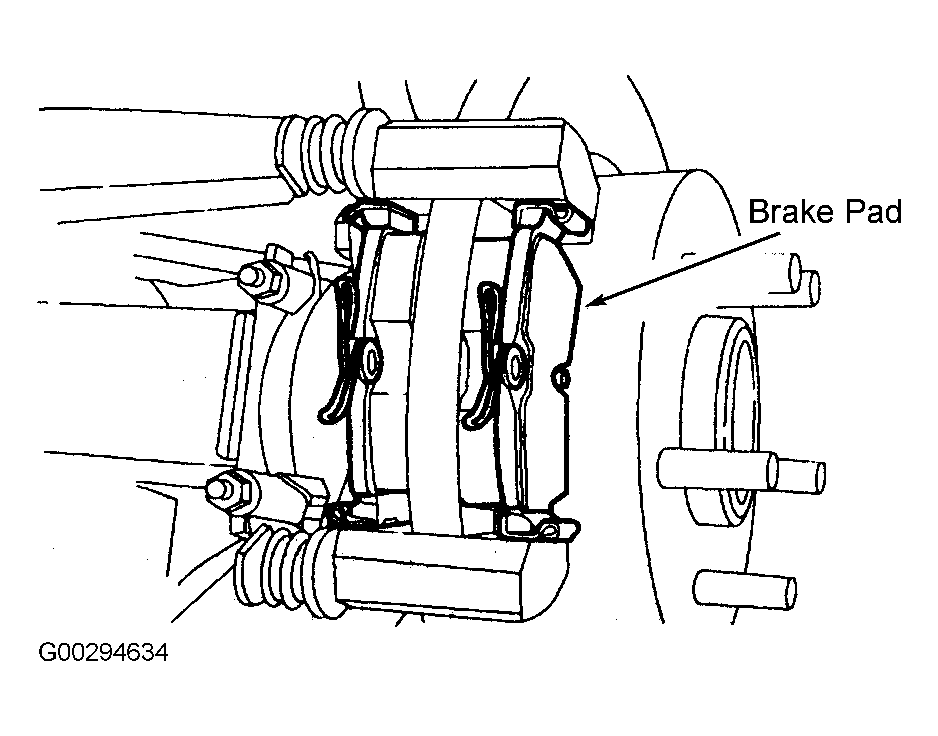

Fig 5: Removing Brake Pads
G00294634Courtesy of FORD MOTOR CO.
Fig 6: Removing Slippers From Pads
G00294635Courtesy of FORD MOTOR CO.

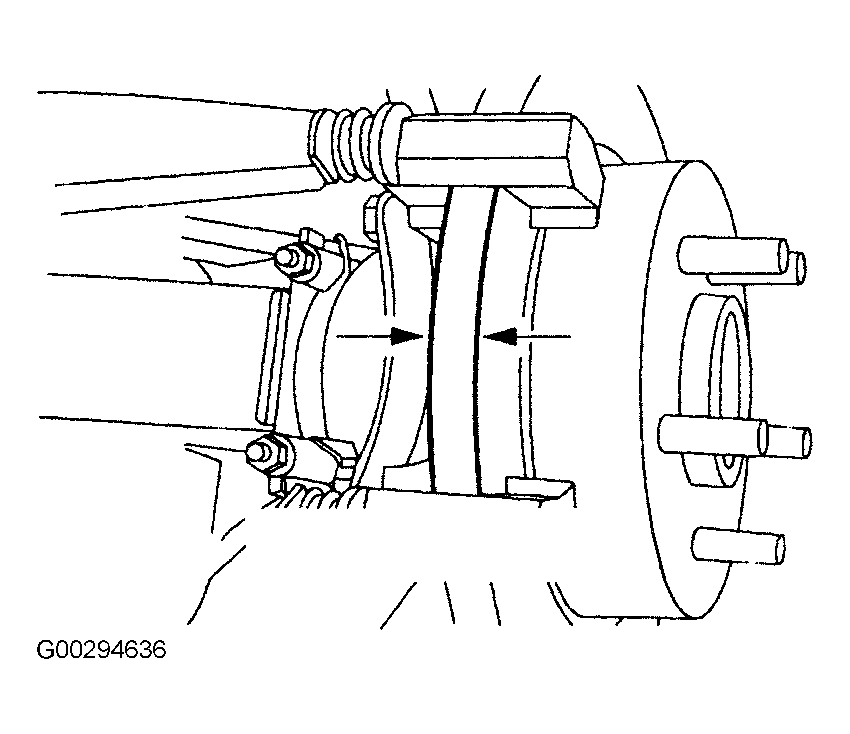

Fig 7: Measuring Rear Brake Disc Thickness
G00294636Courtesy of FORD MOTOR CO.
