Front Brakes

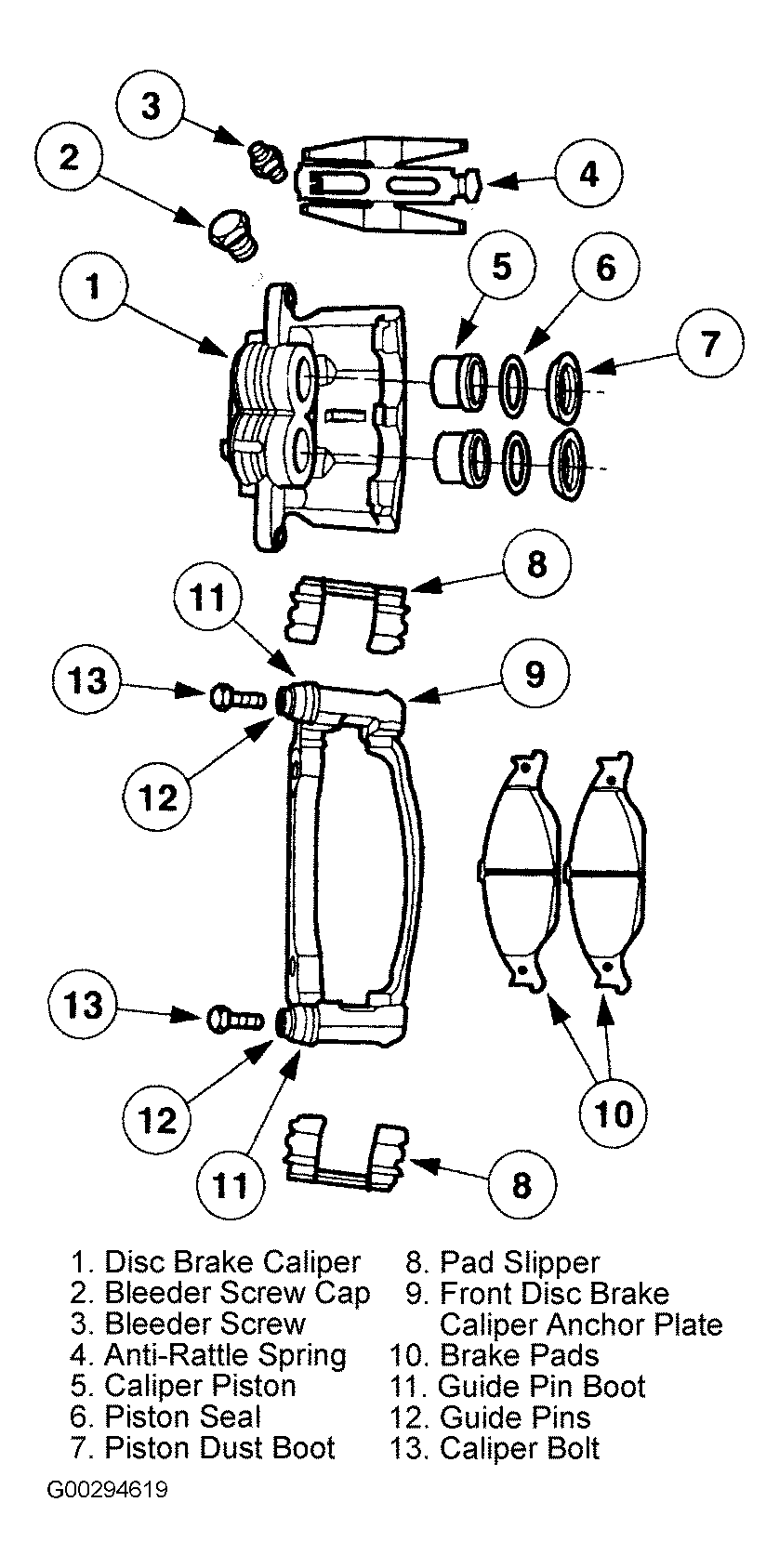

The front disc brake caliper bolts to the front disc brake caliper anchor plate which bolts to the front wheel spindle and is a pin slider, dual piston design. The front brake discs are a ventilated full-cast design, with non-directional cooling fins. Front discs are serviced with the disc brake caliper and front disc brake caliper anchor plate removed. The front brake disc shield is riveted to the front wheel spindle and protects the front wheel bearings and inboard surface of the front brake disc. The pads are housed in the front disc brake caliper anchor plate and are a non-asbestos, non-metallic composition. See Fig 1.
