Luggage Compartment Lid - Hinge: Removal

Disconnect the electrical connector.

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the lift cylinder.

Fig 2: Removing Lift Cylinder
Courtesy of FORD MOTOR CO.
Remove the luggage compartment lid hinge bolts.

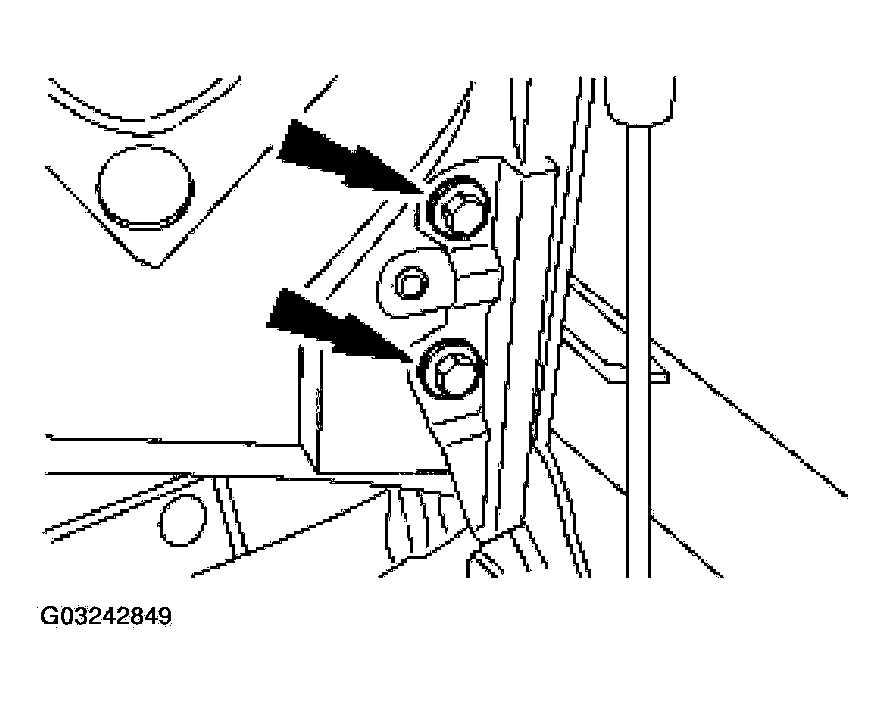

Fig 3: Removing Luggage Compartment Lid Hinge Bolts
Courtesy of FORD MOTOR CO.

NOTE: Remove the sealer around the luggage compartment lid hinge if necessary.

Fig 4: Removing Luggage Compartment Lid Hinge Nuts

Courtesy of FORD MOTOR CO.
