Cable - Antenna Lead In: Removal

  1. Remove the audio unit. Refer to AUDIO UNIT .
  2. Lower the glove compartment by releasing the stops from the instrument panel.
  3. Disconnect the antenna in-line connector.

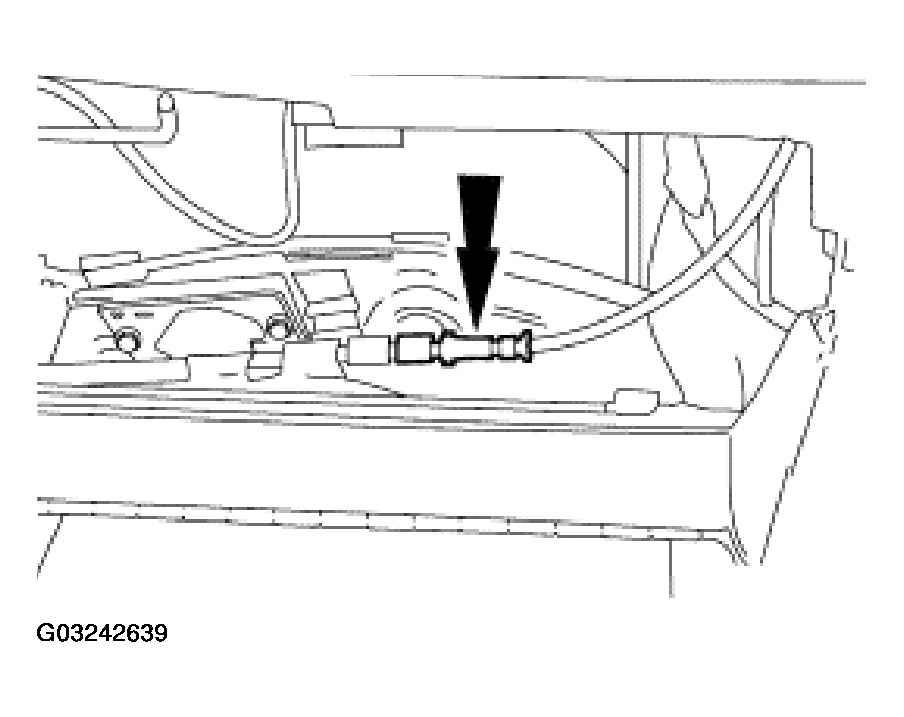

    Fig 1: Disconnecting Antenna In-Line Connector
    G03242639Courtesy of FORD MOTOR CO.
  4. Remove the antenna lead in cable.
    1. Disconnect the pin-type retainers.
    2. Remove the antenna lead in cable.

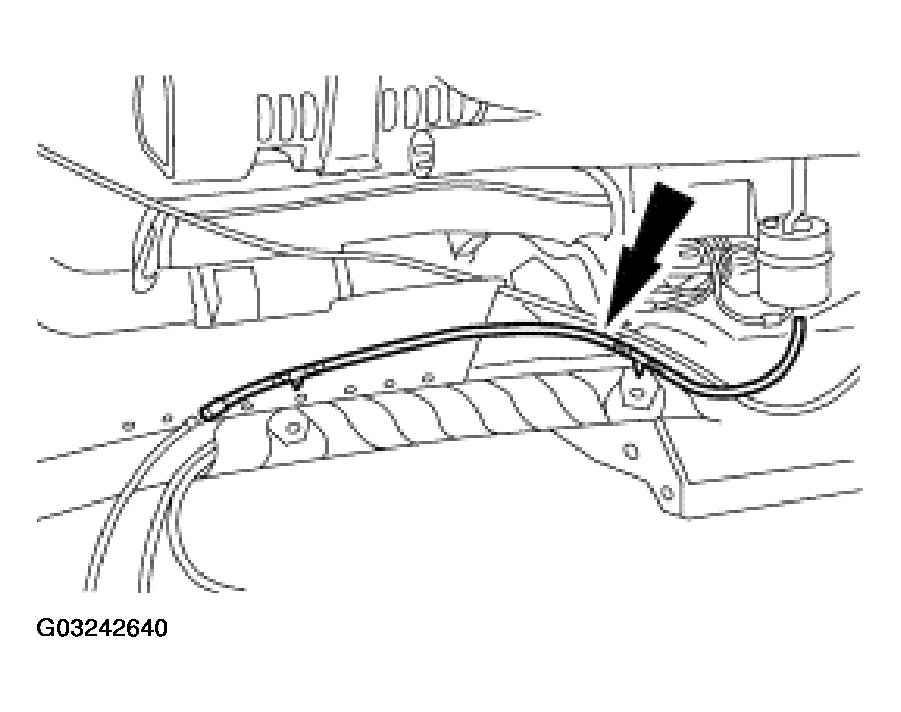

      Fig 2: Removing Antenna Lead In Cable
      G03242640Courtesy of FORD MOTOR CO.
