Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The injection control pressure (ICP) sensor is located in the RH valve cover.

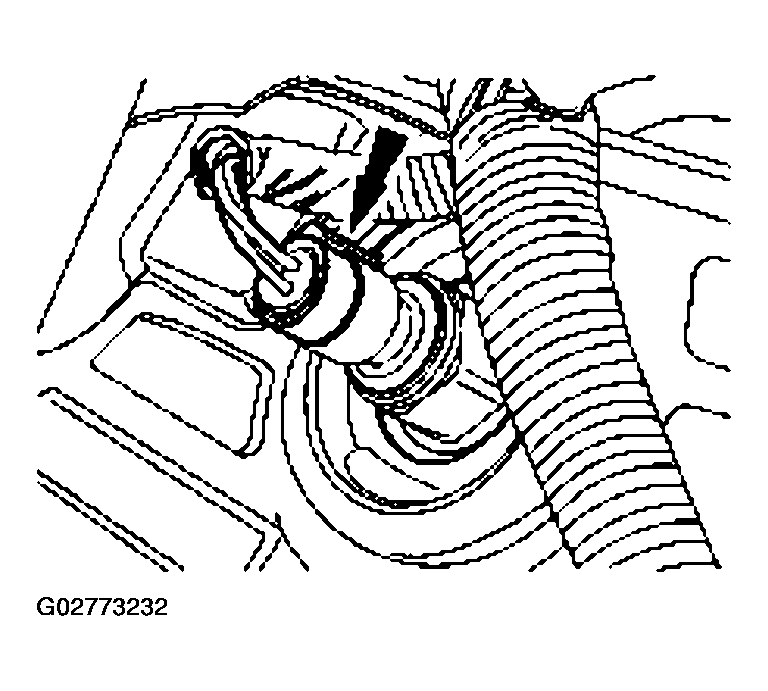

Fig 1: Disconnecting ICP Sensor Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the ICP sensor electrical connector.
Remove the ICP sensor.

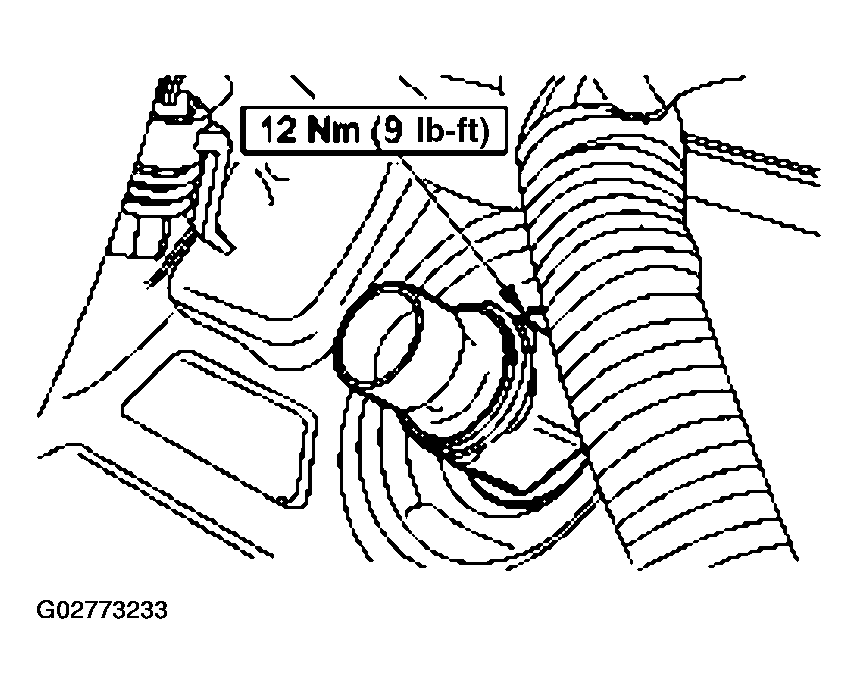

Fig 2: Removing ICP Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify the sensor O-ring seal is in place.
