Item 6: Crankshaft Pulley Installation Note

    NOTE: Apply a bead of sealant to the keyway in the crankshaft pulley.
  1. Using the special tool, install the crankshaft pulley.

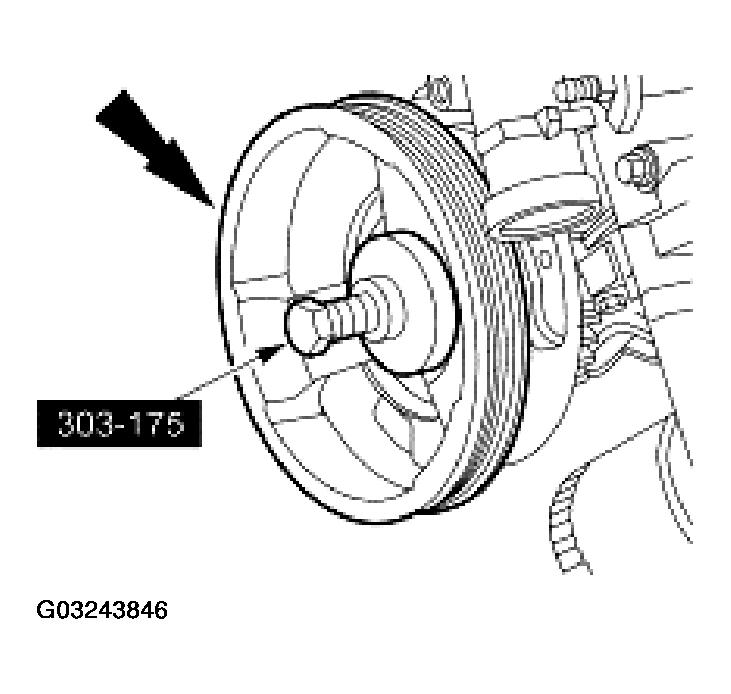

Fig 1: Installing Crankshaft Pulley
G03243846Courtesy of FORD MOTOR CO.
