Oil Pressure And Oil Temperature Cluster - SVT: Removal

Disconnect the battery ground cable. For additional information, Refer to BATTERY DISCONNECT .
Detach the instrument cluster bezel. (Steering wheel removed for clarity).
- Remove the retaining screws and detach the retaining clips.

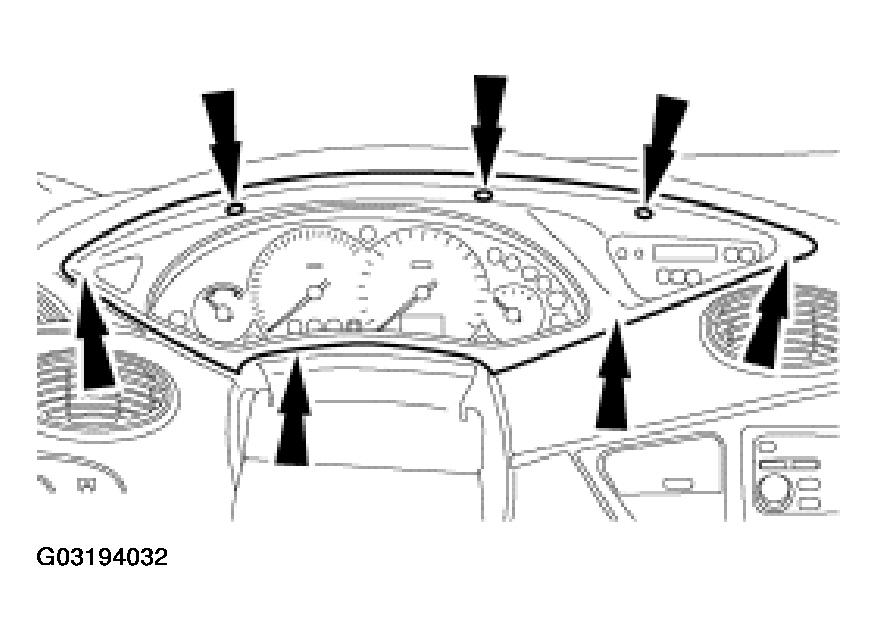

  Fig 1: Detaching Retaining Clips
  Courtesy of FORD MOTOR CO.
Remove the instrument cluster bezel.
- Disconnect the luggage compartment release switch electrical connector.

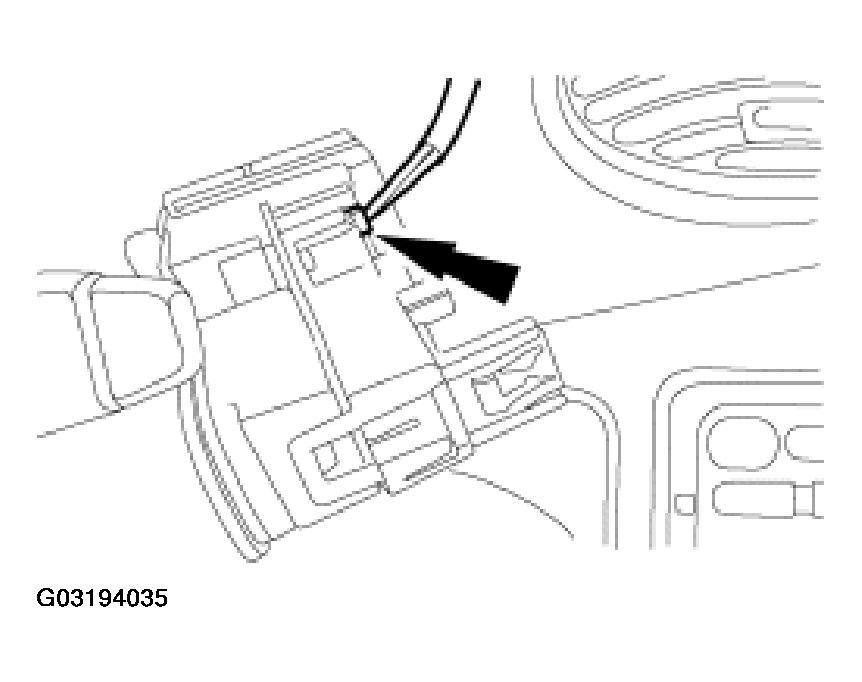

  Fig 2: Disconnecting Luggage Compartment Release Switch Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the oil pressure and oil temperature cluster from the instrument panel.
- Remove the retaining screw and detach the retaining clip.

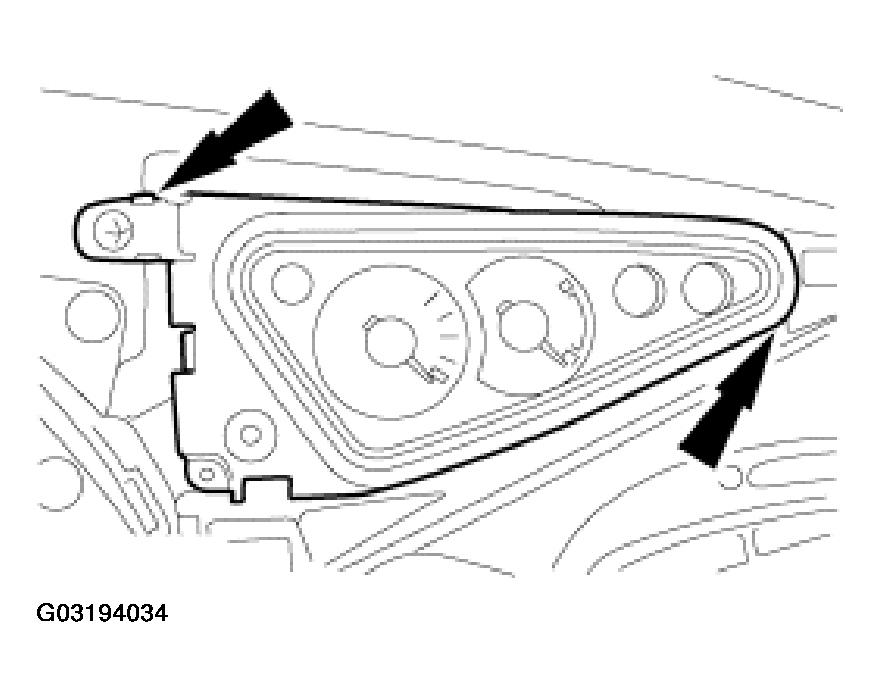

  Fig 3: Removing Retaining Screw
  Courtesy of FORD MOTOR CO.

CAUTION: The oil pressure and oil temperature cluster must be kept upright to avoid silicone liquid leaking from the gauges.

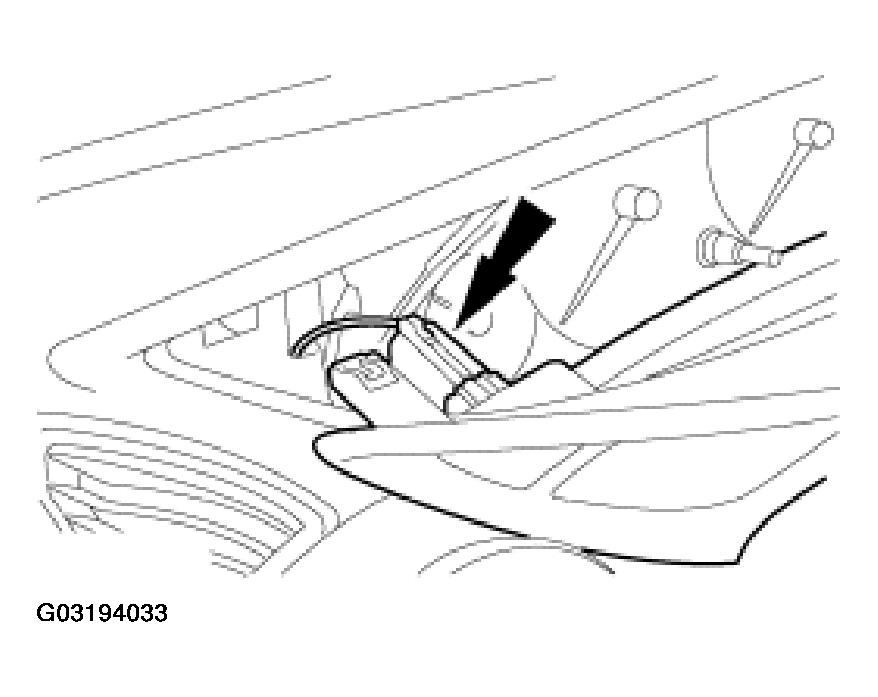

Fig 4: Disconnecting Oil Pressure And Oil Temperature Cluster Electrical Connector

Courtesy of FORD MOTOR CO.
