Instrument Cluster - SVT: Removal

NOTE: If a new instrument cluster is being installed connect WDS. Upload the instrument cluster configuration information using the programmable modules installation routine prior to commencing the removal of the instrument cluster.
  1. Disconnect the battery ground cable. For additional information, Refer to BATTERY DISCONNECT .
  2. Detach the instrument cluster bezel. (Steering wheel removed for clarity).
    • Remove the retaining screws and detach the retaining clips.

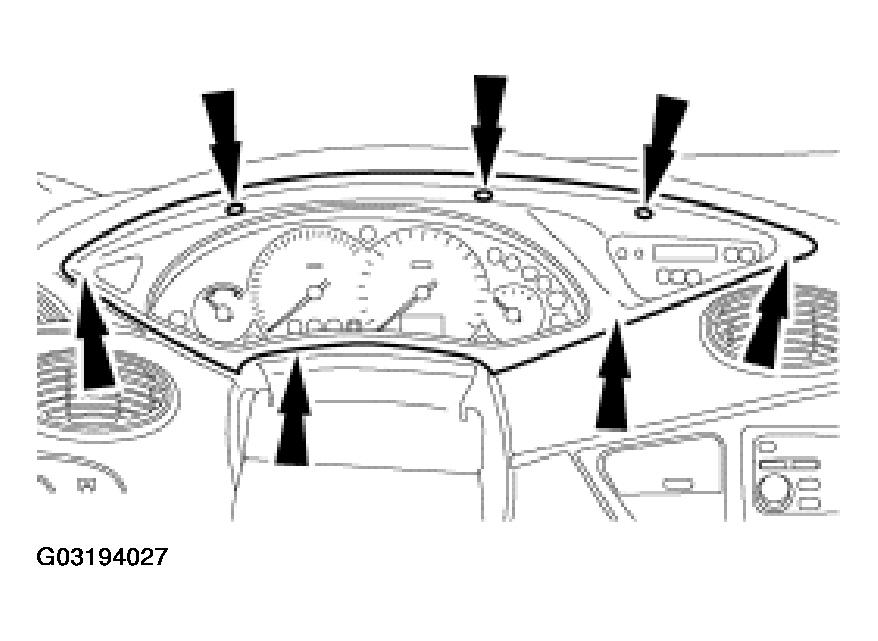

      Fig 1: Removing Retaining Clips
      G03194027Courtesy of FORD MOTOR CO.
  3. Remove the instrument cluster bezel.
    • Disconnect the luggage compartment release switch electrical connector.

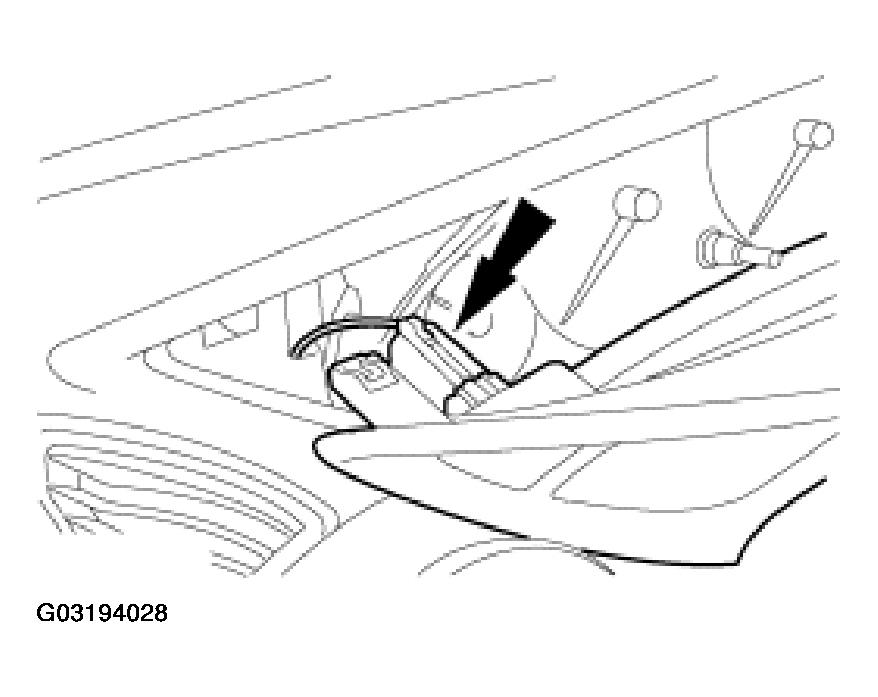

      Fig 2: Disconnecting Luggage Compartment Release Switch Electrical Connector
      G03194028Courtesy of FORD MOTOR CO.
  4. Detach the instrument cluster.

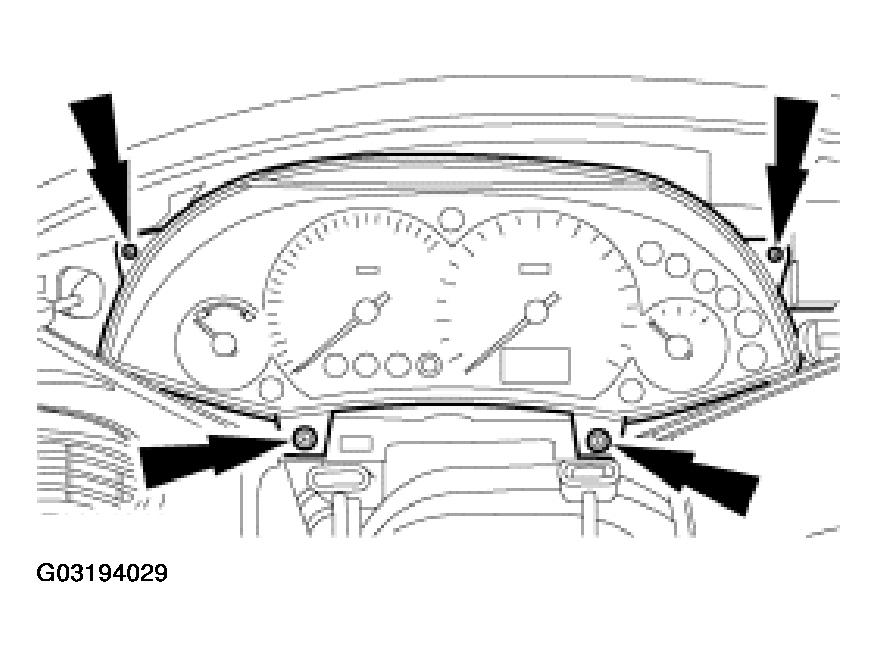

    Fig 3: Detaching Instrument Cluster
    G03194029Courtesy of FORD MOTOR CO.
  5. Disconnect the instrument cluster illumination electrical connector.

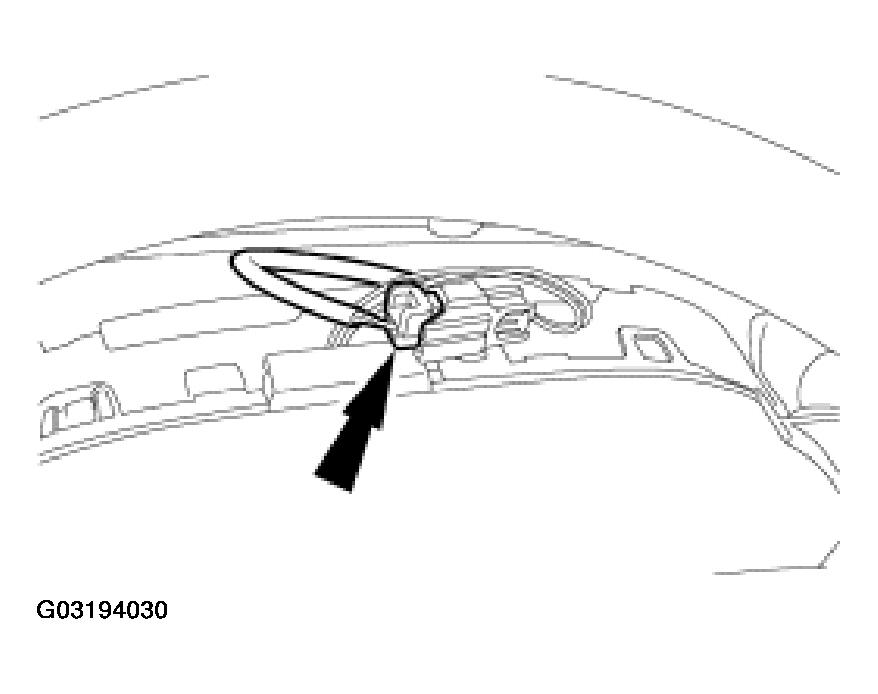

    Fig 4: Disconnecting Instrument Cluster Illumination Electrical Connector
    G03194030Courtesy of FORD MOTOR CO.
    6. CAUTION: The instrument cluster must be kept upright to avoid silicone liquid leaking from the gauges.
  6. Remove the instrument cluster
    1. Release the locking tang.
    2. Disconnect the instrument cluster electrical connector.

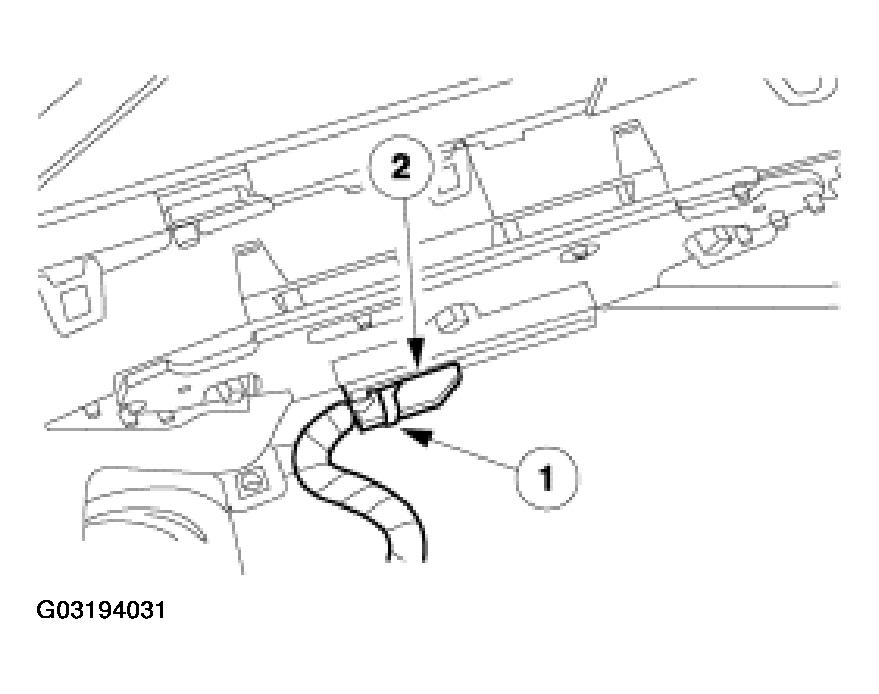

      Fig 5: Disconnecting Instrument Cluster Electrical Connector
      G03194031Courtesy of FORD MOTOR CO.
