Instrument Cluster: Removal

NOTE: If a new instrument cluster is being installed connect WDS. Upload the instrument cluster configuration information using the programmable modules installation routine prior to commencing the removal of the instrument cluster.
  1. Detach the instrument cluster bezel. (Steering wheel removed for clarity).

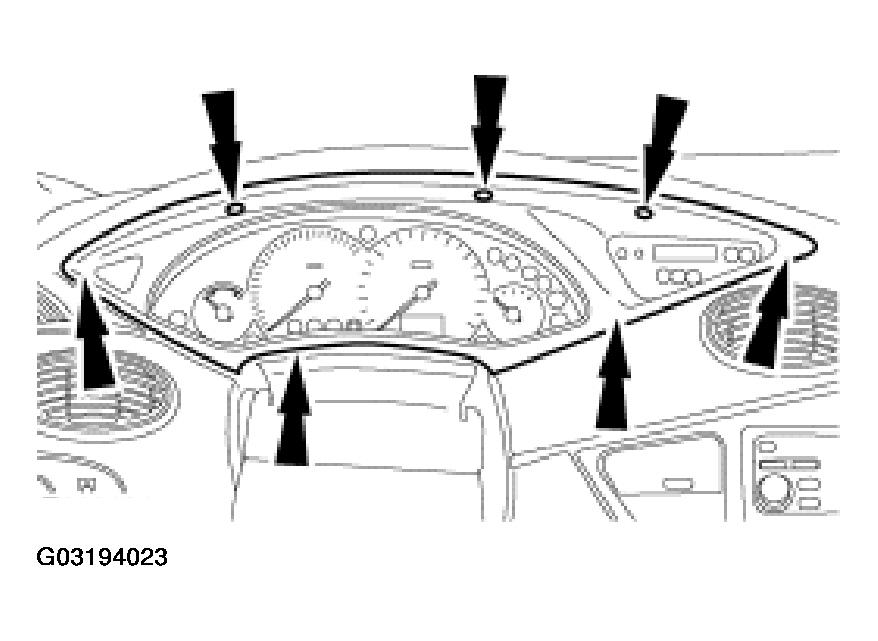

    Fig 1: Detaching Instrument Cluster Bezel
    G03194023Courtesy of FORD MOTOR CO.
  2. Remove the instrument cluster bezel.
    • Disconnect the luggage compartment release switch electrical connector.

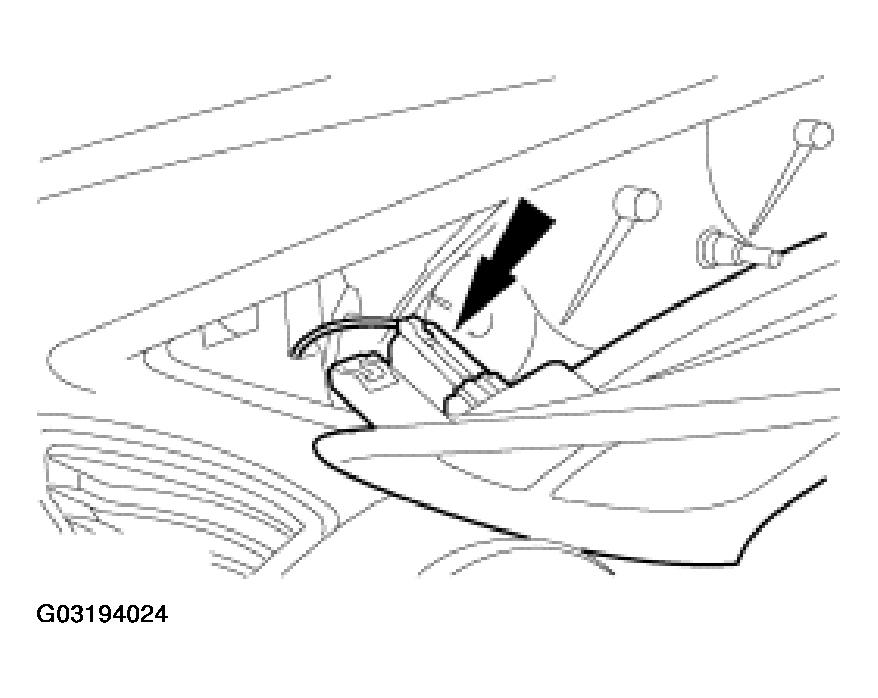

      Fig 2: Disconnecting Luggage Compartment Release Switch Electrical Connector
      G03194024Courtesy of FORD MOTOR CO.
  3. Detach the instrument cluster.

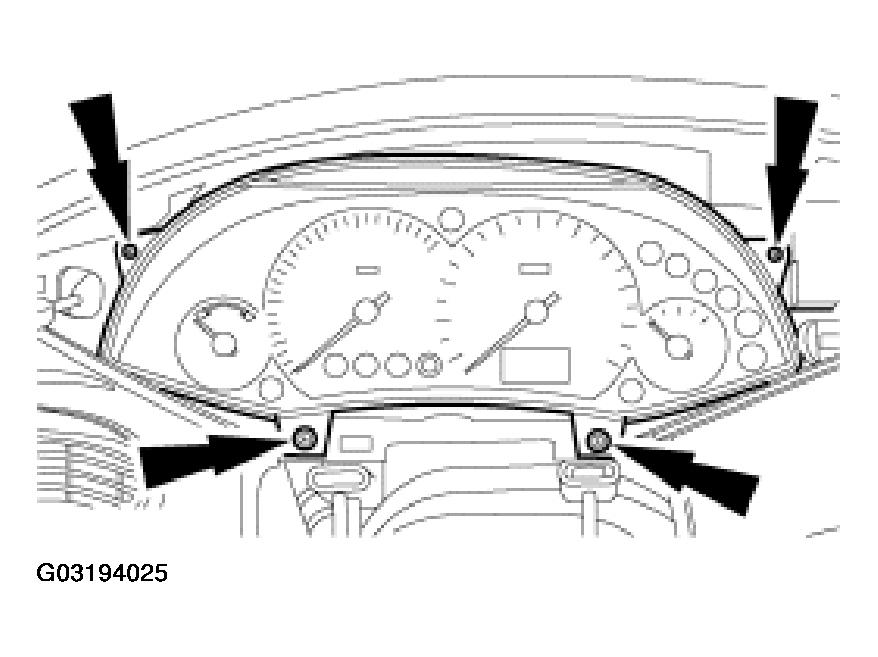

    Fig 3: Detaching Instrument Cluster
    G03194025Courtesy of FORD MOTOR CO.
    4. CAUTION: The instrument cluster must be kept upright to avoid silicone liquid leaking from the gauges.
  4. Remove the instrument cluster.
    1. Release the locking tang.
    2. Disconnect the instrument cluster electrical connector.

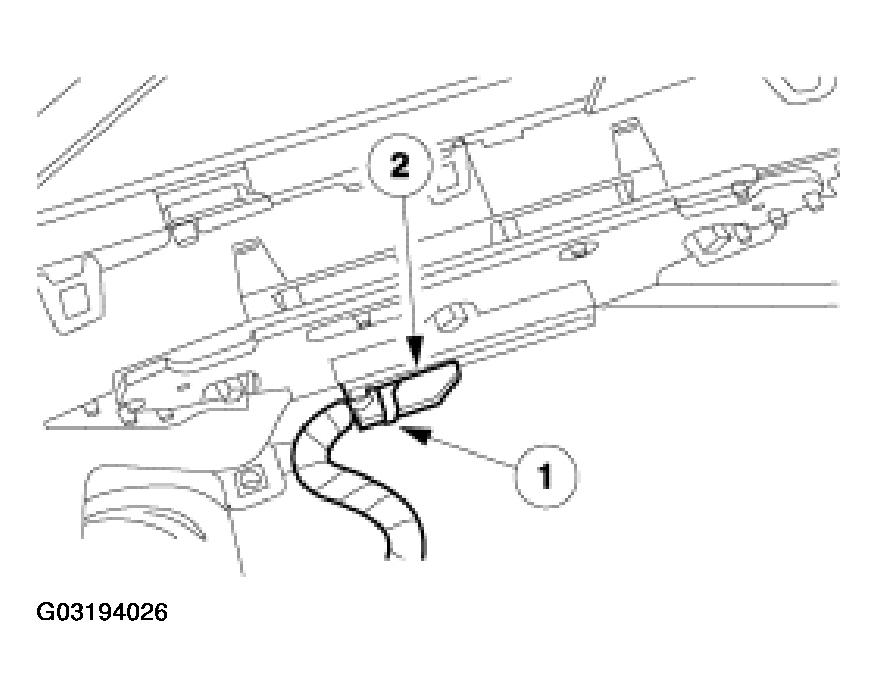

      Fig 4: Disconnecting Instrument Cluster Electrical Connector
      G03194026Courtesy of FORD MOTOR CO.
