Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Locations >> Master Window Adjust Switch

Master Window Adjust Switch

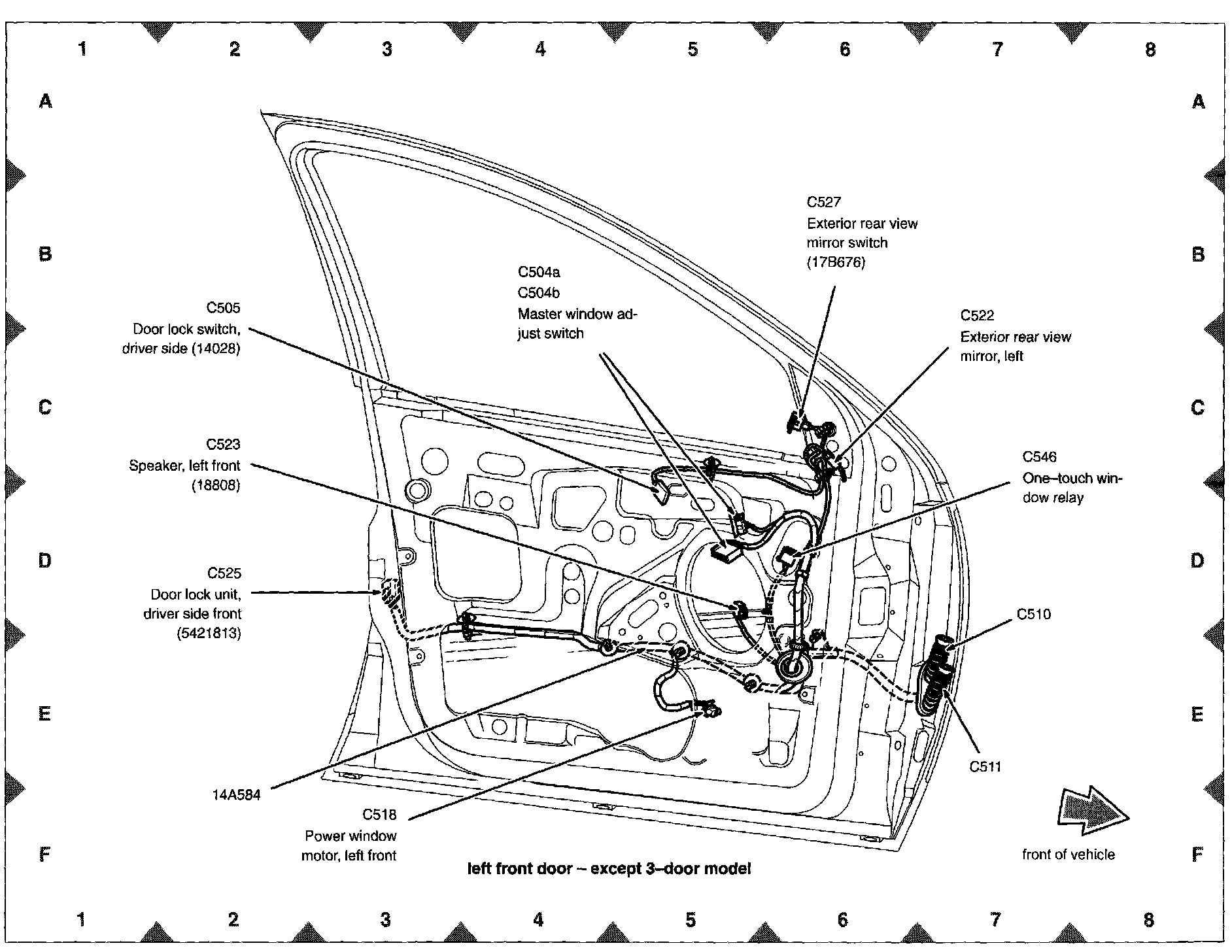

View 151-32:

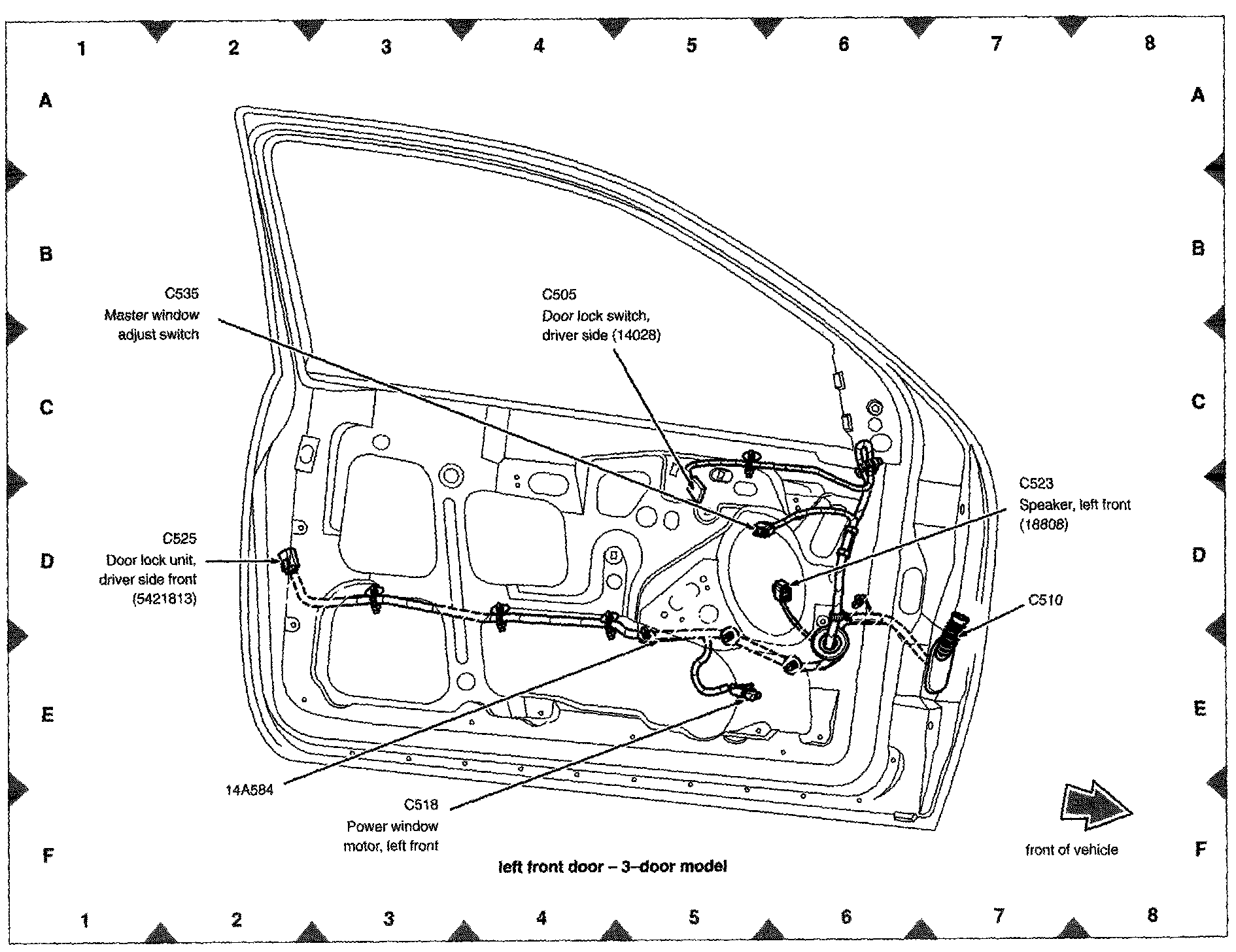

View 151-34:
