Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Locations >> Dual Pressure Switch

Dual Pressure Switch

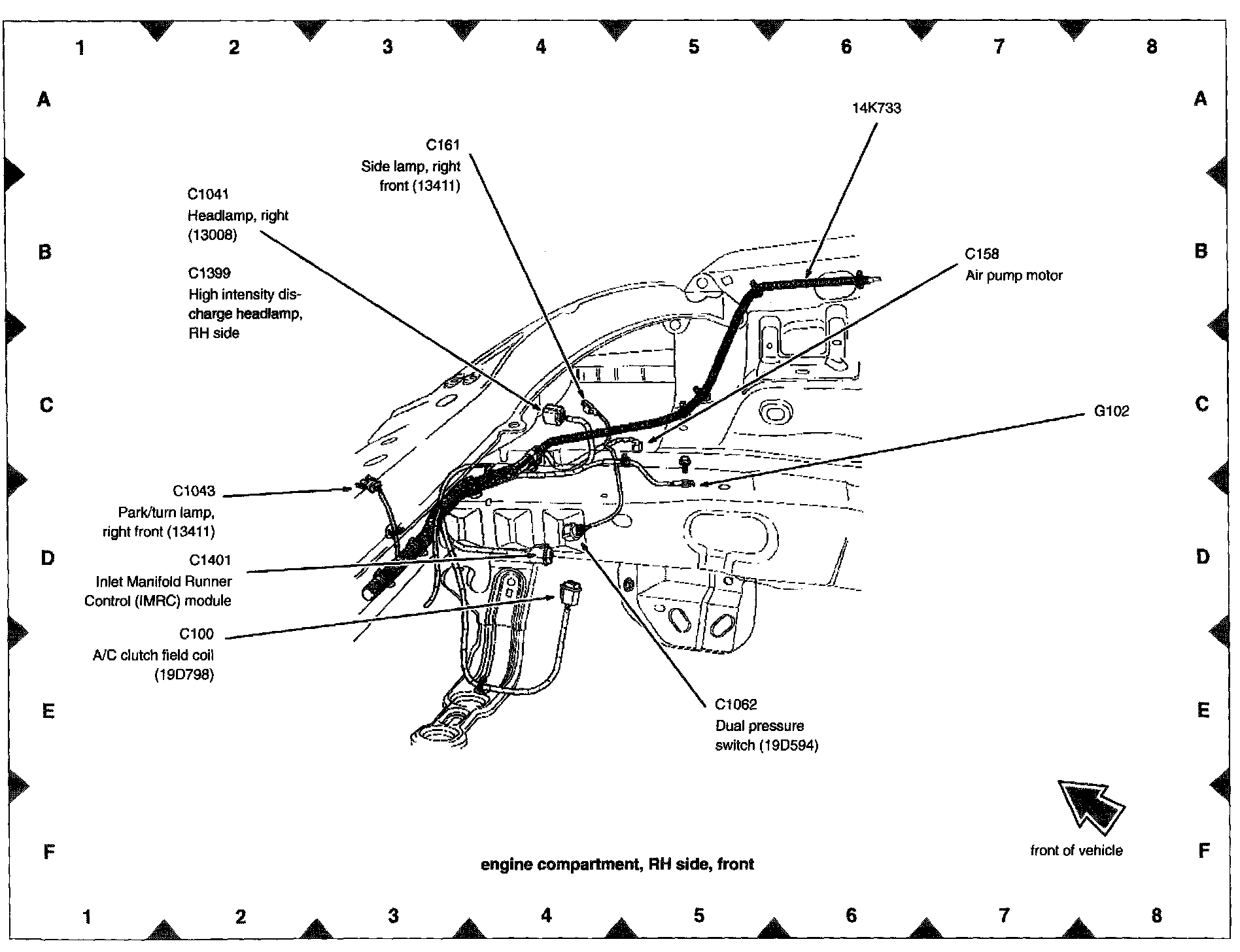

View 151-13:

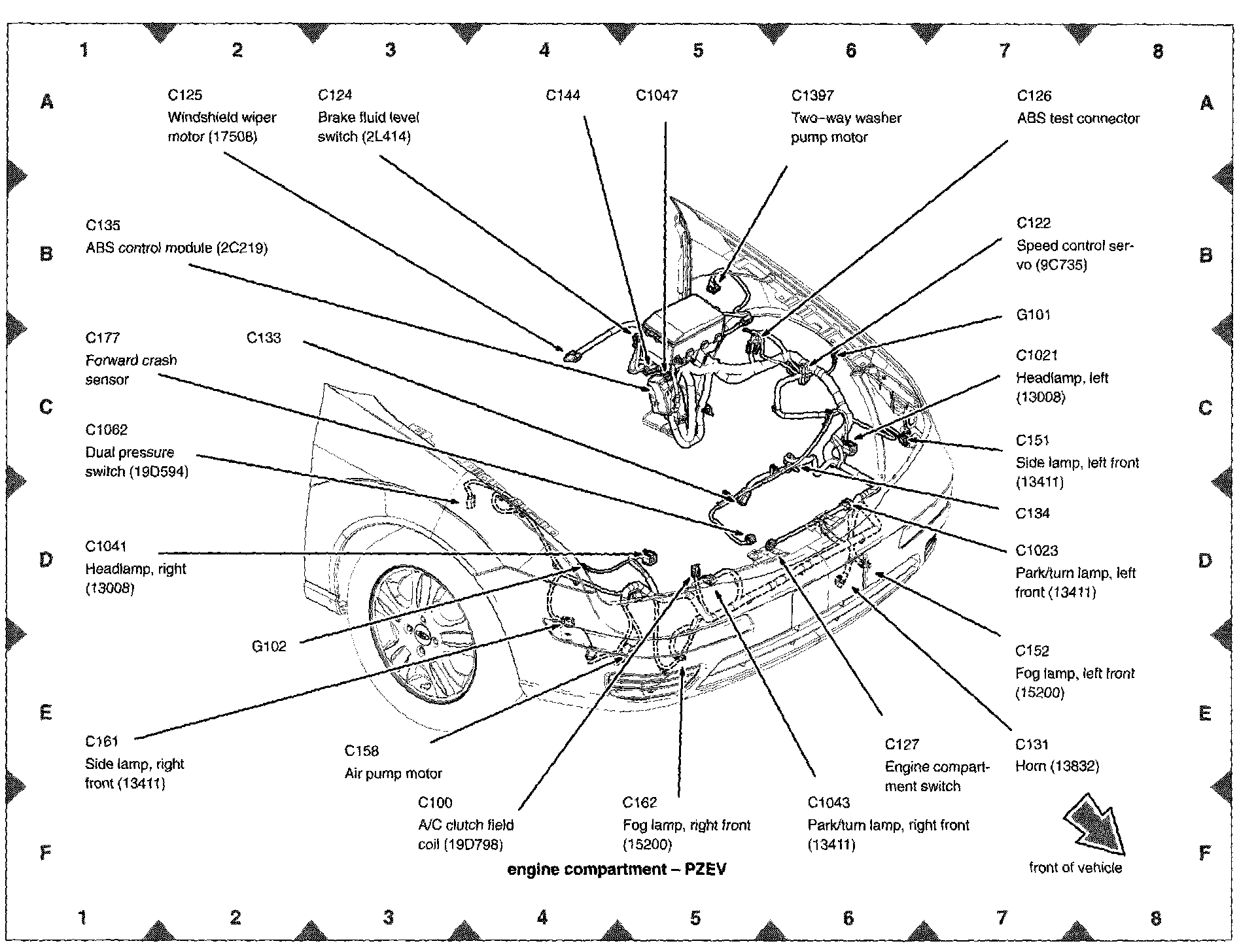

View 151-20:
