Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Exhaust System >> Exhaust Pressure Sensor >> Locations

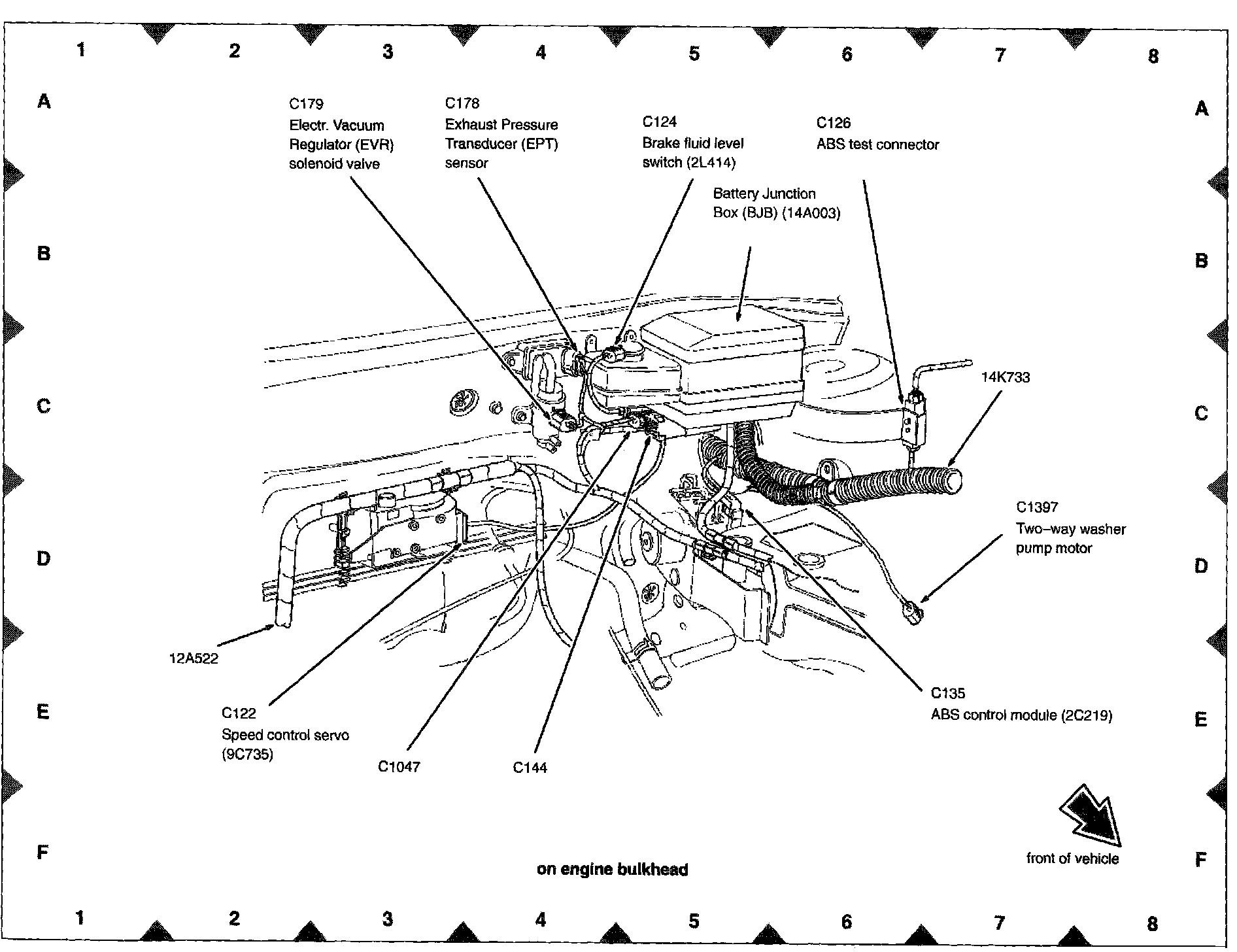

Exhaust Pressure Sensor: Locations

View 151-15:



View 151-20:
