With A/C



Accessory Drive

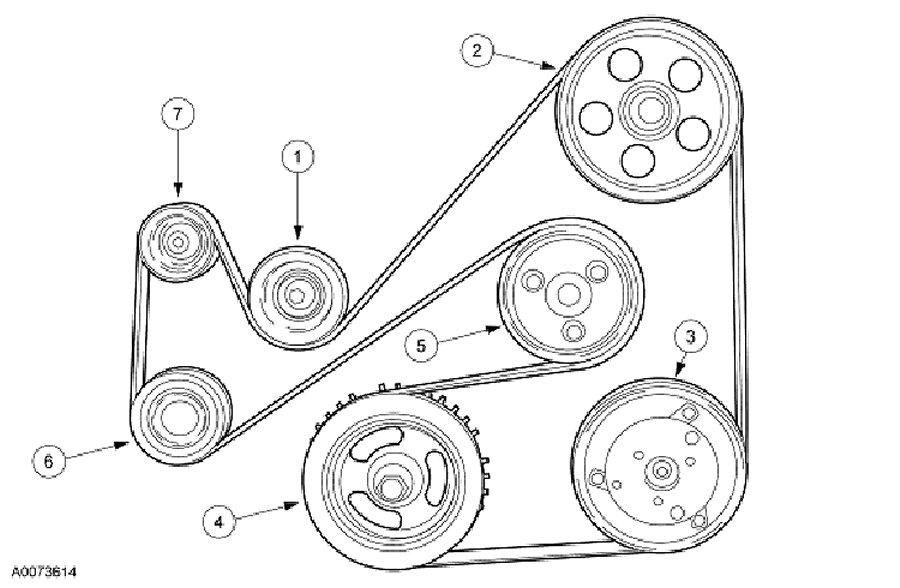

2.0L SPI W/Air Conditioning (1 Of 2):

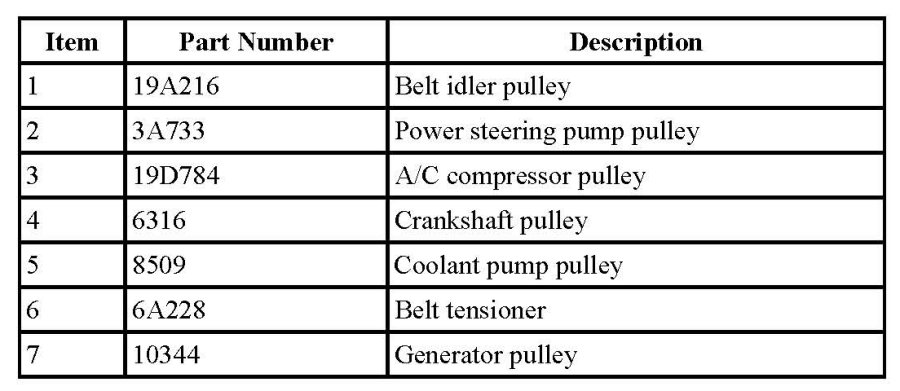

2.0L SPI W/Air Conditioning (2 Of 2):

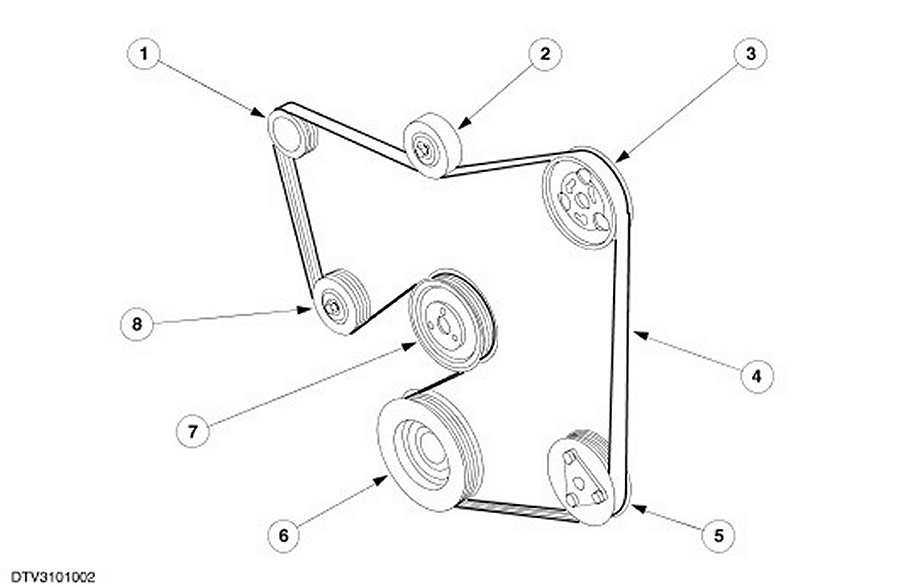

2.0L Zetec-E With Air Conditioning (1 Of 2):

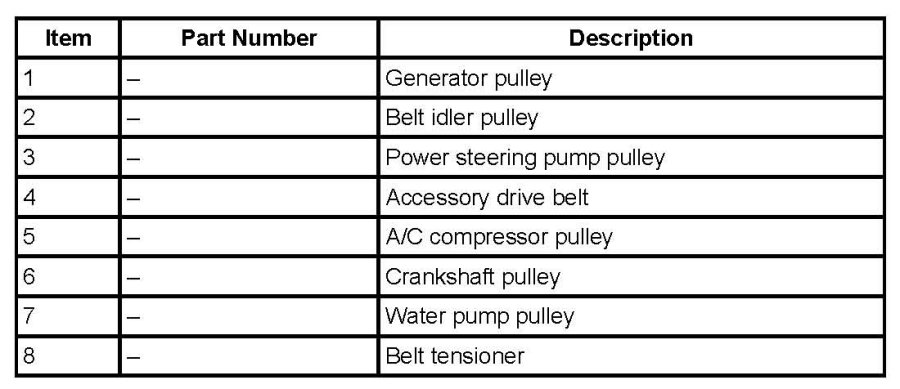

2.0L Zetec-E With Air Conditioning (2 Of 2):

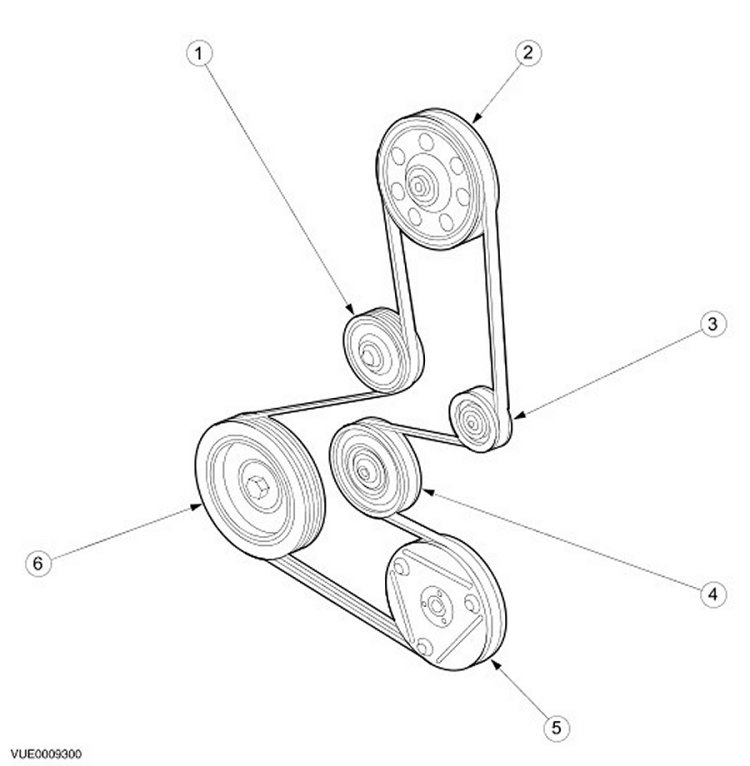

2.3L With Air Conditioning (1 Of 2):

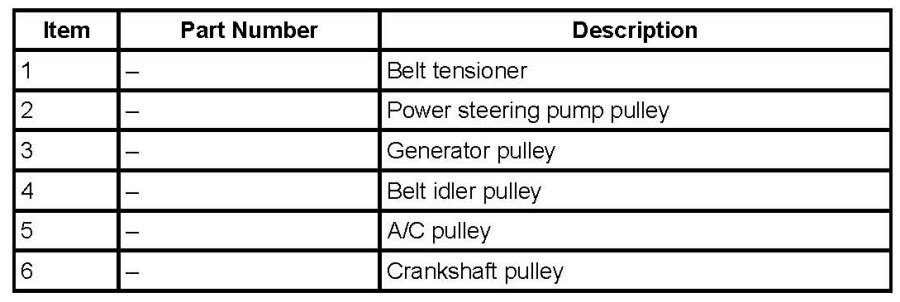

2.3L With Air Conditioning (2 Of 2):
