Crankshaft Front Seal: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS REFERENCE

G04648446Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Front Seal and Wear Sleeve
303-761
G04648447Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Front Wear Sleeve
303-762
G04648448Courtesy of FORD MOTOR CO.
 Oil Seal Remover
303-D060
MATERIAL SPECIFICATIONS

Item Specification
Threadlock 262 TA-26 WSK-M2G351-A6

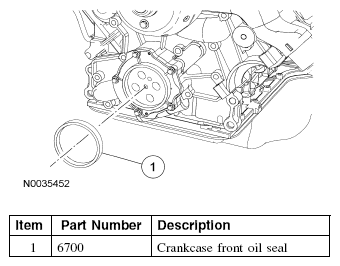

Fig 1: Locating Crankshaft Front Seal
G04648449Courtesy of FORD MOTOR CO.
