Compass Zone Adjustment - With Message Center

    NOTE: The compass zone setting is preset from the factory to Zone 8.

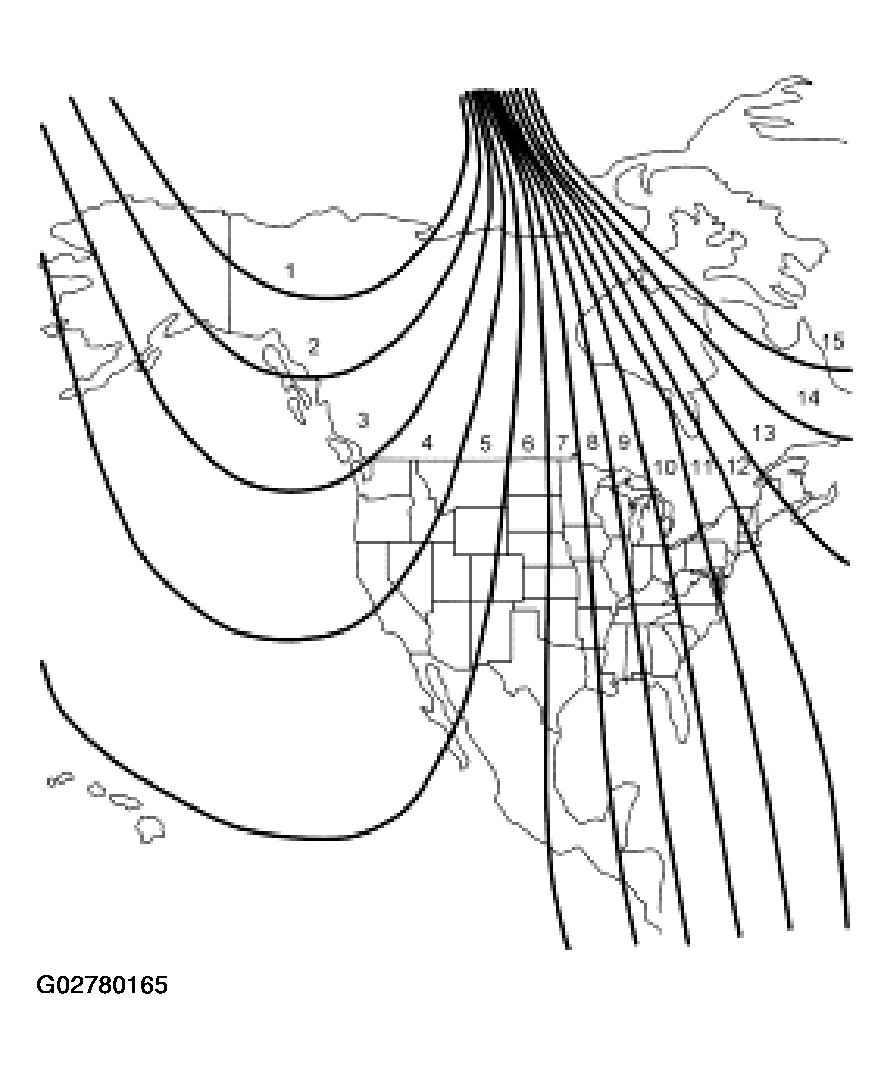

    Fig 1: Identifying Magnetic Zone (With Message Center)
    G02780165Courtesy of FORD MOTOR CO.
  1. Determine which magnetic zone you are in for your geographic location.
  2. Start the engine.
  3. Press the message center switch INFO button until the compass information is displayed.
  4. Press and hold the SETUP and RESET buttons until the message center display changes to show the current zone setting.
  5. Press the SETUP button repeatedly until the correct zone setting is displayed in the message center.
  6. To exit the zone steering mode, and the lock in the change, press and release the RESET button.
