Roof Opening Panel Alignment - Height Adjustment

NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel, including: whenever the roof opening panel motor has been removed from the roof opening panel assembly, a new roof opening panel motor has been installed, or when a new roof opening panel assembly has been installed. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
  1. Loosen the four roof opening panel bolts.
    Fig 1: Loosening Four Roof Opening Panel Bolts
    G02774551Courtesy of FORD MOTOR CO.
  2. Position the roof opening panel to the roof panel as specified.

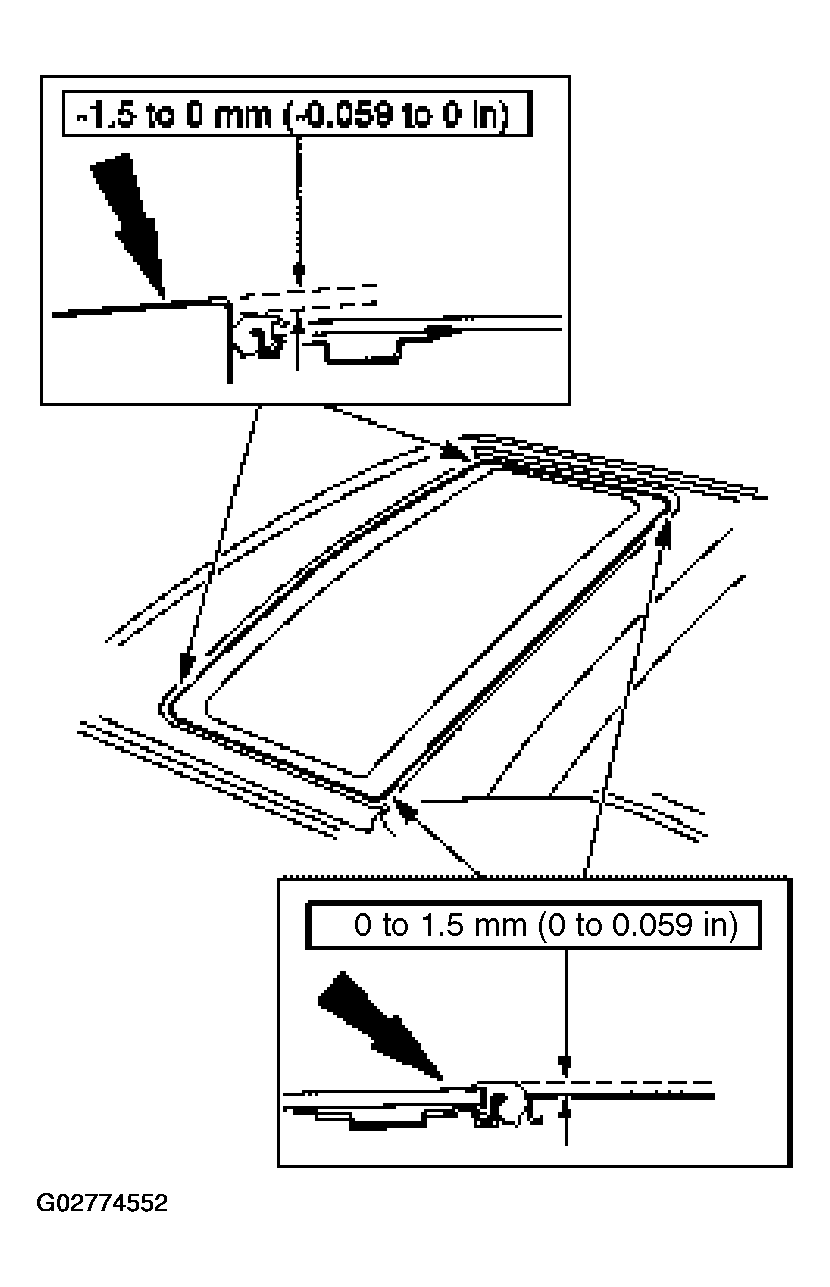

    Fig 2: Positioning Roof Opening Panel To Roof Panel
    G02774552Courtesy of FORD MOTOR CO.
  3. Maintain the roof opening panel position and tighten the four roof opening panel bolts.
    Fig 3: Tightening Four Roof Opening Panel Bolts
    G02774553Courtesy of FORD MOTOR CO.
  4. Reinitialize the roof opening panel motor. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
