Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Door Ajar)

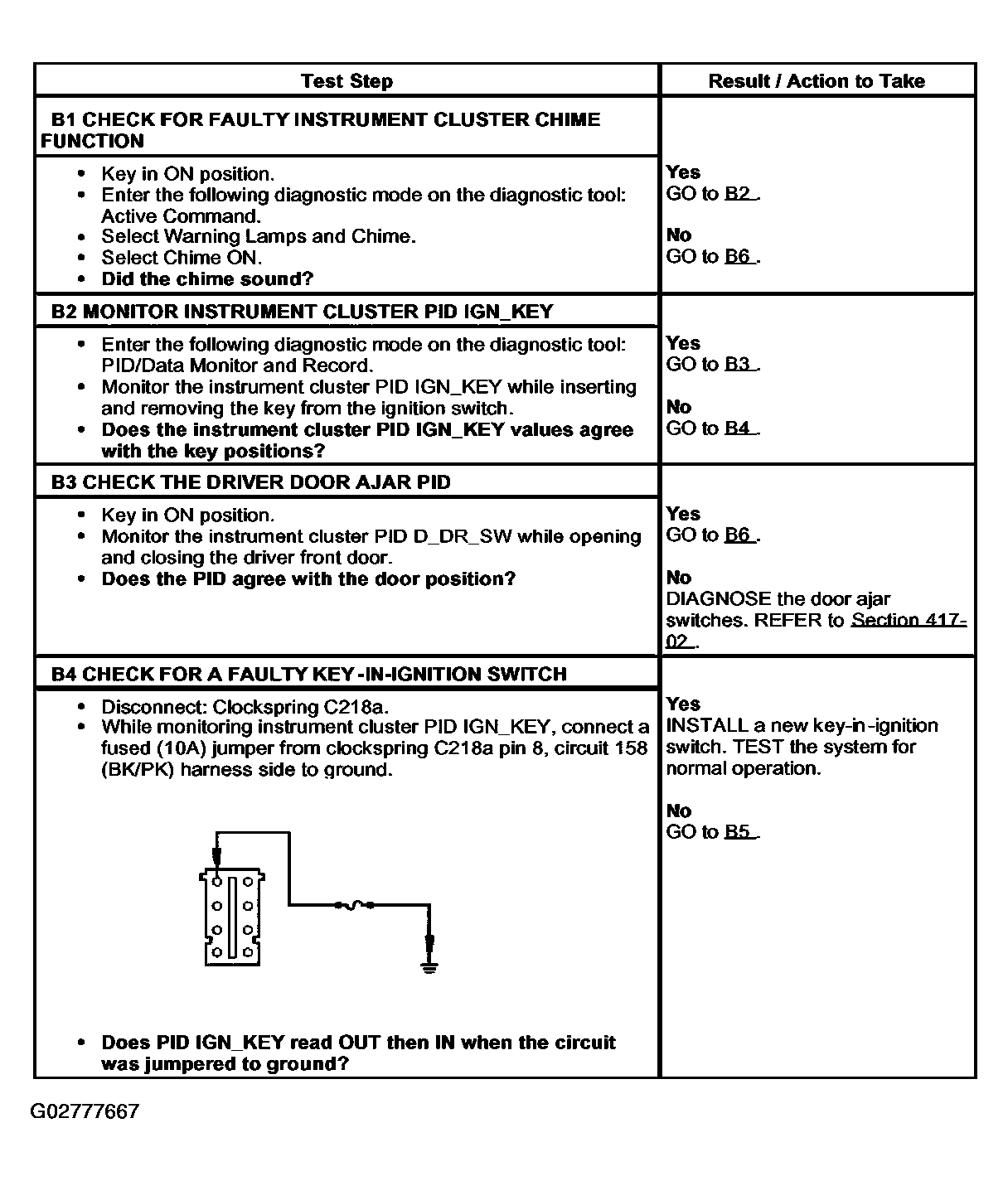

Fig 1: Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Door Ajar) (B1-B4)
G02777667Courtesy of FORD MOTOR CO.

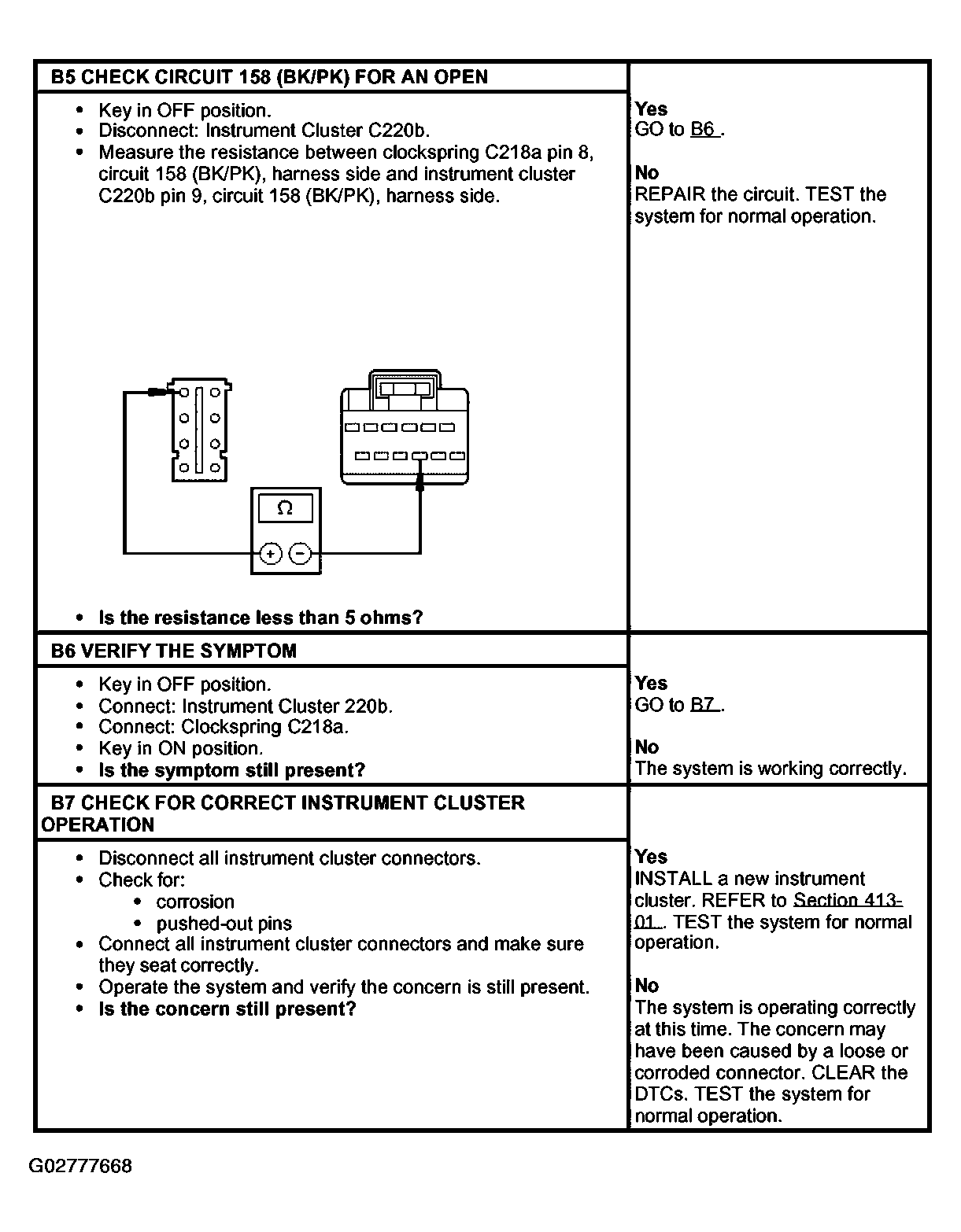

Fig 2: Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Door Ajar) (B5-B7)
G02777668Courtesy of FORD MOTOR CO.
