Identifying Connectors (C168, C169, C171, C172 & C174)

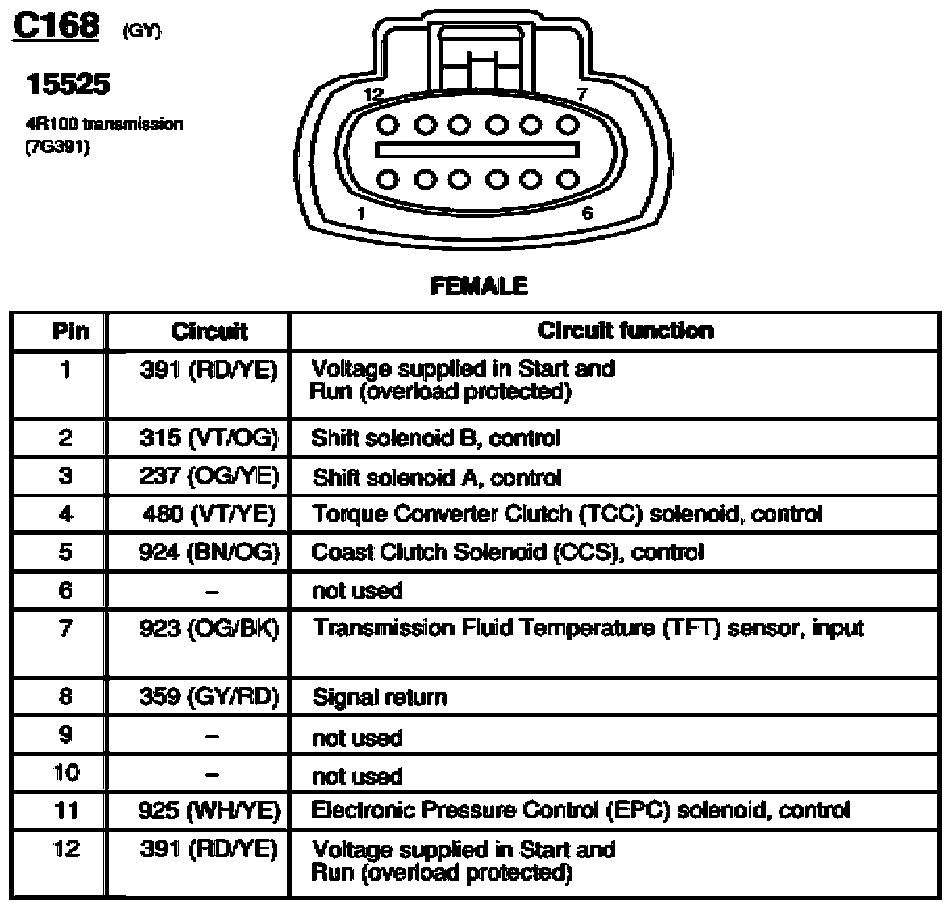

Fig 1: 4R100 Transmission Connector End View (C168)

Courtesy of FORD MOTOR CO.

Fig 2: Reversing Lamps Switch Connector End View (C169)

Courtesy of FORD MOTOR CO.

Fig 3: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

Courtesy of FORD MOTOR CO.

Fig 4: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

Courtesy of FORD MOTOR CO.

Fig 5: Ignition Transformer Capacitor 1 Connector End View (C174)

Courtesy of FORD MOTOR CO.
