Removal and Installation

  1. Remove the radio. Refer to AUDIO UNIT .
  2. Remove the relay cover.

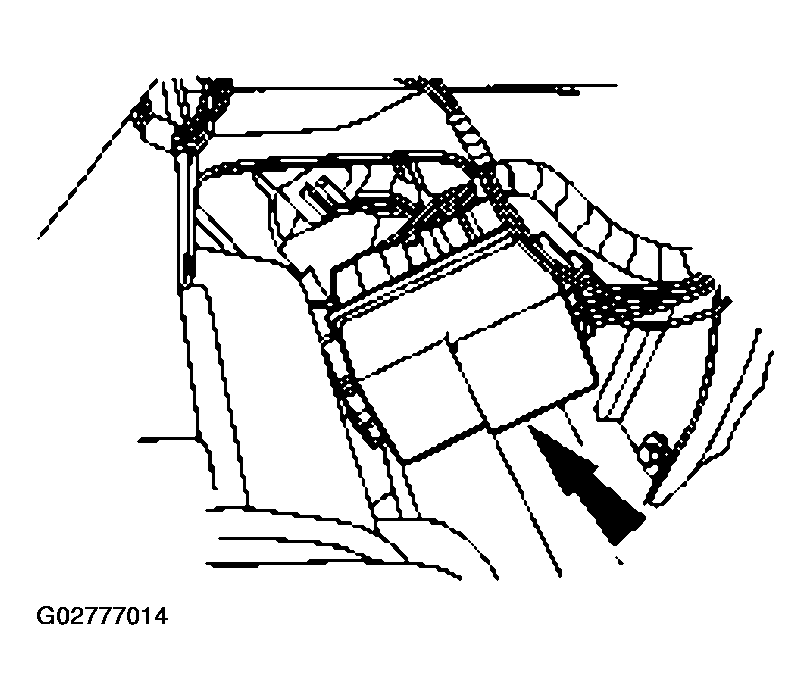

    Fig 1: Removing Relay Cover
    G02777014Courtesy of FORD MOTOR CO.
  3. Remove the fuel pump relay.

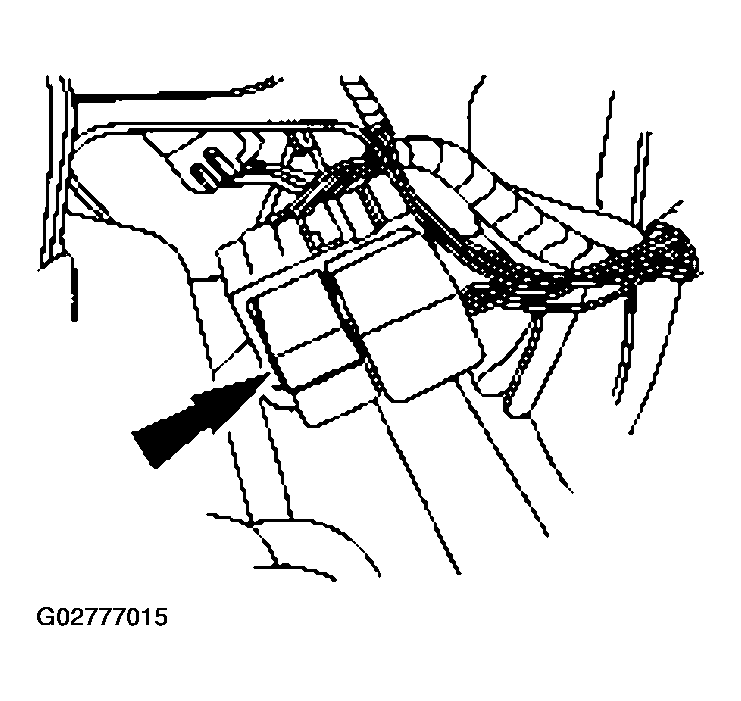

    Fig 2: Removing Fuel Pump Relay
    G02777015Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
